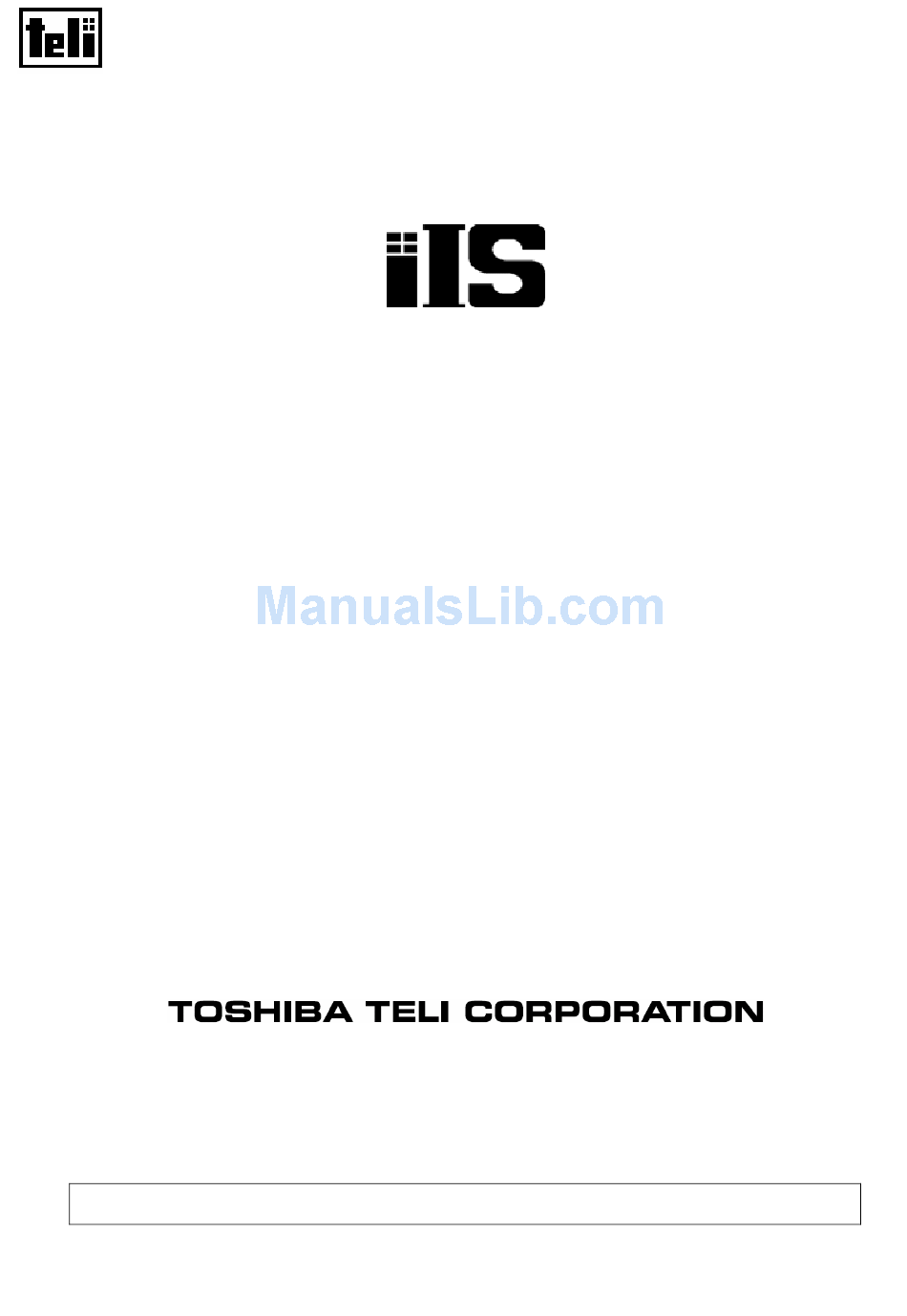

Product Specification

The contents of this product specification may be revised without notice to reflect future product

modifications. Please confirm the functions and the specifications on the latest specification sheet.

Intelligent Image Sensor

iIS-010 series

TK6234A5 : iIS-010

TK6238A7 : iIS-011

TK6240A5 : iIS-012

1. Product Description ·································2

2. Features ···················································2

3. Configuration···········································4

4. Name and Function of Parts·····················6

5. Specification ············································9

6. External View ········································22

• Restriction For Use ·································26

• Precautions ·············································27

• Exemption Clauses ·································27

(Total 29 pages)

D4130145B

Table of Contents

Need help?

Do you have a question about the TK6234A5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teli TK6234A5

Page 1: Table Of Contents
• Exemption Clauses ·································27 The contents of this product specification may be revised without notice to reflect future product modifications. Please confirm the functions and the specifications on the latest specification sheet. TK6234A5 : iIS-010 TK6238A7 : iIS-011 TK6240A5 : iIS-012...
Page 2: Product Description
iIS-010 series product specification 1. Product Description "intelligent image sensor" iIS-010 series is an integrated image processing system consists of CCD camera head, control unit, and application software. iIS-010 series is a pre-packaged solution designed to simplify the deployment of machine vision in industrial applications. 2.
Page 3 iIS-010 series product specification (8) Gauge Application Comprehensive set of gauging tools gives you the ability to precisely and accurately measure lines, angles between lines, ellipses and circles (center, circularity or out-of-round, nicks, major and minor axes),arcs (centers and lengths), Annuli, thread spacing ( wave tool ”),multiple measures of length and spacing of parts such as pins on an electrical connector (“rake tools ”),and other part measures.
Page 4: Configuration
iIS-010 series product specification 3. Configuration Hardware iIS-010 iIS-011 iIS-012 ・Accessories Ethernet crossover cable DIN rail mounting kit Screws for the mounting kit Plug for power cable Plug for parallel I/O cable Floppy Disk Operation Manuals Calibration sheet * Ethernet® is a trademark of Xerox Corporation U.S. Camera Head: 20mm square type ···················································...
Page 5 iIS-010 series product specification Software iIS Web pages iWorks(Gauge) iWorks(Label) iAssistant iServer HTML Help Switch To Gauge Switch to Label Others * Microsoft®, Windows®, Microsoft® Internet Explorer, and ActiveX® are registered trademarks of Microsoft Corporation, U.S., in the U.S. and other countries. Optional Accessories Camera Lens For iIS-010...
Page 6: Name And Function Of Parts
iIS-010 series product specification 4. Name and Function of Parts ETHERNET POWER LED1 CAMERA 1. RJ45 connector for Ethernet Connect with PC or PLC by using Ethernet cable. 2. Local Display connector A XGA Monitor can be connected directly to the control unit, for local display of the camera image. 3.
Page 7 iIS-010 series product specification 8. Parallel I/O 8 inputs and 7 outputs parallel I/O. NAME COM0 Common for inputs GPI0 GPI1 Select solution input (4bit, ID00~15) GPI2 GPI3 Change solution input D.TRIG Decision trigger input TRIG Inspection trigger input COM0: Common input for all other inputs.
Page 8 iIS-010 series product specification Ver. B (Oct. 12 200４) Figure 2. Control unit (top view) 9. Mounting kits for DIN rail You can mount with 32mm / 35mm width type DIN rail. D4130145B...
Page 9: Specification
iIS-010 series product specification 5. Specification [General Specification] Power Supply Power Consumption Operating Temperature Operating Humidity Storage Temperature Storage Humidtity EMC conditions (Electro-Magnetic Compatibility) (Electro-Magnetic Interference) (Electro-Magnetic Susceptibility) * Conformity of EMC conditions About the conformity of the EMC standard of this machine, it has guaranteed in the conditions combined with the peripheral devices of the 3rd clause.
Page 10 iIS-010 series product specification Relative Spectrum Response (*Including lens characteristics, Excluding light source characteristics) [Control Unit] Camera input Video output pixels Quantization Processing Video format Sensor Trigger mode Exposure time Brightness Contrast Processor Memory Device Name IP address Subnet Mask MAC address DHCP DHCP server...
Page 11 iIS-010 series product specification Secondary WINS server Interfaces Ethernet Connector Connection Type Protocol LED indicator Cables Maximum cable length DISPLAY Connector Table 3. Local Display connector pin assignment Pin # Scanning type Video signal level Not Available (Default) RJ-45 Table 2. Ethernet connector pin assignment Pin # Teminal function TD+ (Transmit data +)
Page 12 iIS-010 series product specification Sync signal Horizontal sync frequency Vertical sync frequency Image resolution Sampling resolving power RS-232C Connector Pin # Control type Bit rate Data bits Stop bits Parity Flow Control Parallel I/O Connector COM0 All other inputs for sync on green, 1.0 V (Video signal: 0.7 V Separate sync 56.4kHz...
Page 13 iIS-010 series product specification Rated input voltage Input voltage range Input voltage level Input current level Control signal inputs TRIG D.TRIG Polarity Minimum pulse width Select Solution Inputs ID_00 ID_01 ID_02 ID_03 ID_04 ID_05 ID_06 ID_07 ID_08 ID_09 ID_10 ID_11 ID_12 ID_13 ID_14...
Page 14 iIS-010 series product specification Rated Voltage Reverse voltage Total Power Dissipation Load voltage range Rated output current Decision outputs GPO0 GPO1 GPO2 GPO3 Light control output (STR) READY output (RDY) External Dimensions Weight IOPWR BOARD Ferrite B 220Ω Ferrite A PS2805 (NEC) 1000pF/50V Signal Ground...
Page 15 iIS-010 series product specification [Example Installation] ETHERNET *The length of the power line between the control unit and DC power supply must be less than 10m, and use twisted-pair wire. [Client PC system requirements] Operating System Web Browser History Log Viewer PC type Interface * The PC control program may not work for the effect installed software for application and...
Page 16 iIS-010 series product specification ［Software function specification - on Internet Explorer (Ver.1.2.0.0)］ Select Language Devise Setup Network Alias Network Settings Monitor Upgrade Open iWorks HistoryLog Table 6. CSV file output format (Gauge application) 1 Inspection Number N 2 Inspection Number N+1 3 Inspection Number N+2 Inspection Number Time Stamp...
Page 17 iIS-010 series product specification Password Protection [Software Function Specification: Gauge/Label in common specifications (Ver.1.2.0.0)] Camera image Camera Image size Zoom in / Zoom out Cursor Location Pixel Intensity Solution ID Online Help Setup Status Bar Select solution panel Setup Sensor panel Sensor Trigger mode Internal Trigger period Inspection Trigger Delay...
Page 18 iIS-010 series product specification Conditional output if (Condition) Then (Send) To (Destination) Serial (COM3) port settings Bit rate Data Bits Parity Stop bit Flow control TCP/IP Control unit role As client As server *The reliability of controlling external devices (such as a conveyer, a kicker or etc.) on the product line via Ethernet is NOT guaranteed.
Page 19 iIS-010 series product specification Take a picture Location setup Position / Angle Origin Properties Locator Properties Edge Sensitivity Inspection tools Perpend Line-Line Line-Line Point-Point Point-Line Angle Corner Circle Circle-Circle Circle-Line Point-Circle Concentric Circles Ruler Properties Angle Properties Circle Properties Concentricity Properties More inspection tools ROI (Region of Interest) Taking a still or frozen picture...
Page 20 iIS-010 series product specification Count Count Properties Edge count Edge Count Properties Intensity Statistics Properties Eraser Tip Window Color settings Saving good parts image Decision outputs setting Monitoring Statistics Information Inspection Information Processing Time count the number of objects in a ROI Count / Area Naming measurement Setting Tolerance (settable units on the measurement)
Page 21 iIS-010 series product specification Reset History Log Saving current parts image Display [Software Function Specifications: iWorks Label (Ver.1.2.0.0)] Take a Picture Inspection Area Settings Barcode Reading (Optional) Barcode change Inputting Barcode Value Inspecting as Part of the Label Barcode Inspection Settings Inspection Settings Label Locator Label Rotation Tolerance...
Page 22: External View
Ver. B (Oct. 12 200 ４ ) iIS-010 series product specification 6. External View iIS-010 series control unit - external view D4130145B...
Page 23 Ver. B (Oct. 12 200 ４ ) iIS-010 series product specification iIS-010 20mm square camera head - external view D4130145B...
Page 24 Ver. B (Oct. 12 200 ４ ) iIS-010 series product specification iIS-011 φ17mm camera head- external view D4130145B...
Page 25 Ver. B (Oct. 12 200 ４ ) iIS-010 series product specification iIS-012 C mount camera head - external view D4130145B...
Page 26: Restriction For Use
iIS-010 series product specification • Restriction For Use • Should the equipment be used in the following conditions or environments, give consideration to safety measures and inform us of such usage: 1. Use of the equipment in the conditions or environment contrary to those specified, or use outdoors. 2.
Page 27: Precautions
iIS-010 series product specification • Precautions • The contents of this manual may not be reproduced in whole or in part without prior written consent from TELI (Tokyo Electronic Industry Co., Ltd.). • The contents of this manual may be revised without notice to reflect future product modifications. •...
Page 28 Ver. B (Oct. 12 200 ４ ) iIS-010 series product specification transportation facilities and equipment, or any other application, facility, or equipment that requires extreme reliability. TELI assumes no responsibility or liability for injury, fire, or consequential damages arising from failure of the CCD camera in such applications. •...
Page 29 Head Office: 7-1, 4 chome, Asahigaoka, Hino-shi, Tokyo, 191-0065, Japan (Overseas Sales Department) Phone: +81-42-589-8771 Fax: +81-42-589-8774 URL: http://www.toshiba-teli.co.jp iIS-010 series - Product Specification October 2004 D4130145B...
