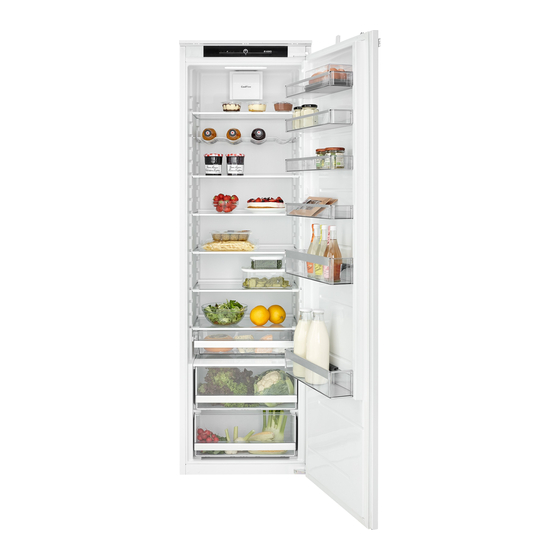

- Page 1 Instructions for use Built-in refrigerator KS24178A KD24178A...
- Page 2 We thank you for the confidence you have shown by purchasing our appliance which is designed to simplify your life. To make the use of the product easier, we have supplied detailed instructions for use, and installation instructions supplied on a separate sheet. The instructions should allow you to learn about your new appliance as quickly as possible.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Safety instructions Advice for saving power with refrigeration appliances Installation and connection Appliance description Appliance description Operating the appliance Appliance interior equipment Recommended distribution of food in the appliance Storing food Storing food in the refrigerator Defrosting and cleaning the appliance Defrosting the appliance Cleaning the appliance... -
Page 4: Introduction
INTRODUCTION Safety instructions Before using the appliance for the first time Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models;... - Page 5 INTRODUCTION Safety instructions The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations. Before cleaning the appliance, unplug it from the power mains (unplug the power cord from the wall outlet). If the power cord is damaged, it must be replaced by a service technician or other adequately trained person.
- Page 6 INTRODUCTION Danger of frostbite Never put frozen food in your mouth and avoid touching frozen food as this may cause frostnip or frostbite. Safety of children and vulnerable persons This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning...
- Page 7 INTRODUCTION Warning regarding the refrigerant The appliance contains a small amount of an environmentally friendly yet flammable gas R600a. Make sure that no parts of the cooling system are damaged. A gas leak is not hazardous to the environment, but it could cause eye injury or fire.
- Page 8 INTRODUCTION Important information on the use of appliance WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. The appliance may not be used outdoors and it may not be exposed to rain. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Page 9 INTRODUCTION Environment protection The packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. Removing an obsolete appliance To protect the environment, take the obsolete appliance to an authorized home appliance collection centre.
-
Page 10: Advice For Saving Power With Refrigeration Appliances
INTRODUCTION Advice for saving power with refrigeration appliances • Install the appliance as specified in the instruction manual. • Do not open the door more often than necessary. • Occasionally make sure air circulation underneath the appliance is unobstructed. • Condenser unit on the rear wall should be kept clean (see chapter ‘Cleaning the Appliance’). •... -
Page 11: Installation And Connection
INTRODUCTION Installation and connection Selecting the room • Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specified in the table. The appliance class is indicated on the rating plate / label with the basic information of the appliance. Class Temperature Relative Humidity... - Page 12 INTRODUCTION Connecting the appliance • Connect the appliance to the power mains using the power cord. The wall outlet should be fitted with a ground contact (safety socket). Nominal voltage and frequency are indicated on the rating plate/label with basic information of the appliance. •...
-
Page 13: Appliance Description
APPLIANCE DESCRIPTION Appliance description Control unit LED lighting Bottle rack Glass shelves Upper drawer Fruit and vegetable drawer with humidity control Fruit and vegetable drawer Door balconies 10. Bottle balcony EN 13... -
Page 14: Operating The Appliance
APPLIANCE DESCRIPTION Operating the appliance Appliance on/off, temperature settings, and extra function key Refrigerator compartment temperature display The indicator for the selected temperature will be lit. Intensive cooling (boost) function indicator The C symbol will be lit when the intensive cooling function is activated. High temperature indicator To set the appliance temperature or activate extra functions, press the A key successively. - Page 15 APPLIANCE DESCRIPTION Adjusting the temperature in the appliance • The factory default setting is the recommended temperature of 4 °C. • After the appliance is switched on, it may take several hours for the set temperature to be reached. Do not place any food into the refrigerator before the temperature drops to the selected setting.
- Page 16 APPLIANCE DESCRIPTION Intensive cooling (boost) function • To activate the intensive cooling (boost) function, press the A key several times until the symbol C lights up. • When the intensive cooling function is activated, the appliance will operate with maximum power. During this time, operation may be somewhat louder.
- Page 17 APPLIANCE DESCRIPTION High temperature alarm If the temperature inside the appliance is too high, acoustic alarm will be activated (intermittent tone) and the D symbol will flash. • Every time the appliance is switched on, there is a 24-hour delay in high temperature alarm operation as it takes some time for the appliance to reach the adequate temperature.
- Page 18 APPLIANCE DESCRIPTION Open door alarm If the refrigerator door is open for more than two minutes, an acoustic alarm (continuous beep) will be activated. To acknowledge and turn off the acoustic alarm press the A key or close the door. EN 18...
-
Page 19: Appliance Interior Equipment
APPLIANCE DESCRIPTION Appliance interior equipment Shelf • Empty shelves can be distributed in the refrigerator interior without having to remove the shelf from the refrigerator. To move the shelf to a different height, lift it at the front, hold it at the back, pull forward a little and move it higher or lower. - Page 20 APPLIANCE DESCRIPTION Vegetable drawer with automatic humidity control (model KD24178A) • The drawer at the bottom of the refrigerator is intended for storing fruit and vegetables. It provides humidity and prevents the food from drying out. • The humidity in the drawer is regulated automatically, depending on the type and amount of inserted food.
- Page 21 APPLIANCE DESCRIPTION Vegetables drawer with manual humidity control (model KS24178A) • The drawer at the bottom of the refrigerator is intended for storing fruit and vegetables. It provides humidity and prevents the food from drying out. The drawer has integrated humidity regulator which allows setting the humidity level.
- Page 22 APPLIANCE DESCRIPTION Interior side of the refrigerator door The balconies mounted on the interior side of the refrigerator door are intended for storing cheese, butter, eggs, yoghurt and other smaller packages, tubes, cans, etc. There is a bottle balcony at the lower end of the door. Adjustable door balconies The height of the balconies is adjustable.
- Page 23 APPLIANCE DESCRIPTION MultiBox storage bin • The MultiBox bin offers a convenient way for storing food with a strong or pungent smell, e.g. ripened or blue-vein cheese, sausages, onions, butter, etc. • The silicone lid provides an air-tight seal that prevents the food from drying out and the odour to spread throughout the refrigerator compartment.
-
Page 24: Recommended Distribution Of Food In The Appliance
APPLIANCE DESCRIPTION Recommended distribution of food in the appliance Sections in the refrigerator compartment: • Upper part: canned food, bread, wine, pastry etc. • Middle part: dairy products, ready-made meals, desserts, soft drinks, beer, cooked food, etc. • Upper drawer: meat, meat produce, delicatessen; •... -
Page 25: Storing Food
STORING FOOD Storing food in the refrigerator Important warnings regarding food storage • Correct use of the appliance, appropriate packaging, maintaining the right temperature, and observing the food hygiene standards have a decisive impact on the quality of food storage. •... -
Page 26: Defrosting And Cleaning The Appliance
DEFROSTING AND CLEANING THE APPLIANCE Defrosting the appliance Automatic refrigerator defrosting This refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically. Any accumulated ice will melt when the compressor unit is inactive. Drops will flow through an opening in the refrigerator rear wall into a tray fitted above the compressor, from where they will evaporate. -
Page 27: Cleaning The Appliance
DEFROSTING AND CLEANING THE APPLIANCE Cleaning the appliance Before cleaning, unplug the appliance from the power mains – switch off the appliance (see chapter ‘Operating the appliance’) and unplug the power cord from the wall outlet. • Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface. - Page 28 DEFROSTING AND CLEANING THE APPLIANCE Cleaning the humidity filter (only for model KD24178A) The humidity filter is located at the bottom part of the shelf above the fruit and vegetable drawer. Filter replacement process: First remove the upper drawer, following the procedure already described (if your appliance model has the upper drawer).
-
Page 29: Other
• Open the humidity control slider (model KS24178A). • Put food in bags or other packaging with a good seal. Water is dripping/ • Clogged water discharge opening or water dripping past the water gutter. - Page 30 OTHER Problem Cause or remedy: Door is difficult to • If you are trying to open the freezer door after just having closed it, this could be difficult to do. As you open the door, some cool open: air escapes from the appliance and it is replaced by warm air from the environment.
-
