WNC DCMA-81J User Manual

Wlan 802.11abg minipci
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WNC WLAN 802.11ABG MINIPCI
User Manual
(DCMA-81J)
Version: 1.0
Nov. 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCMA-81J and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WNC DCMA-81J

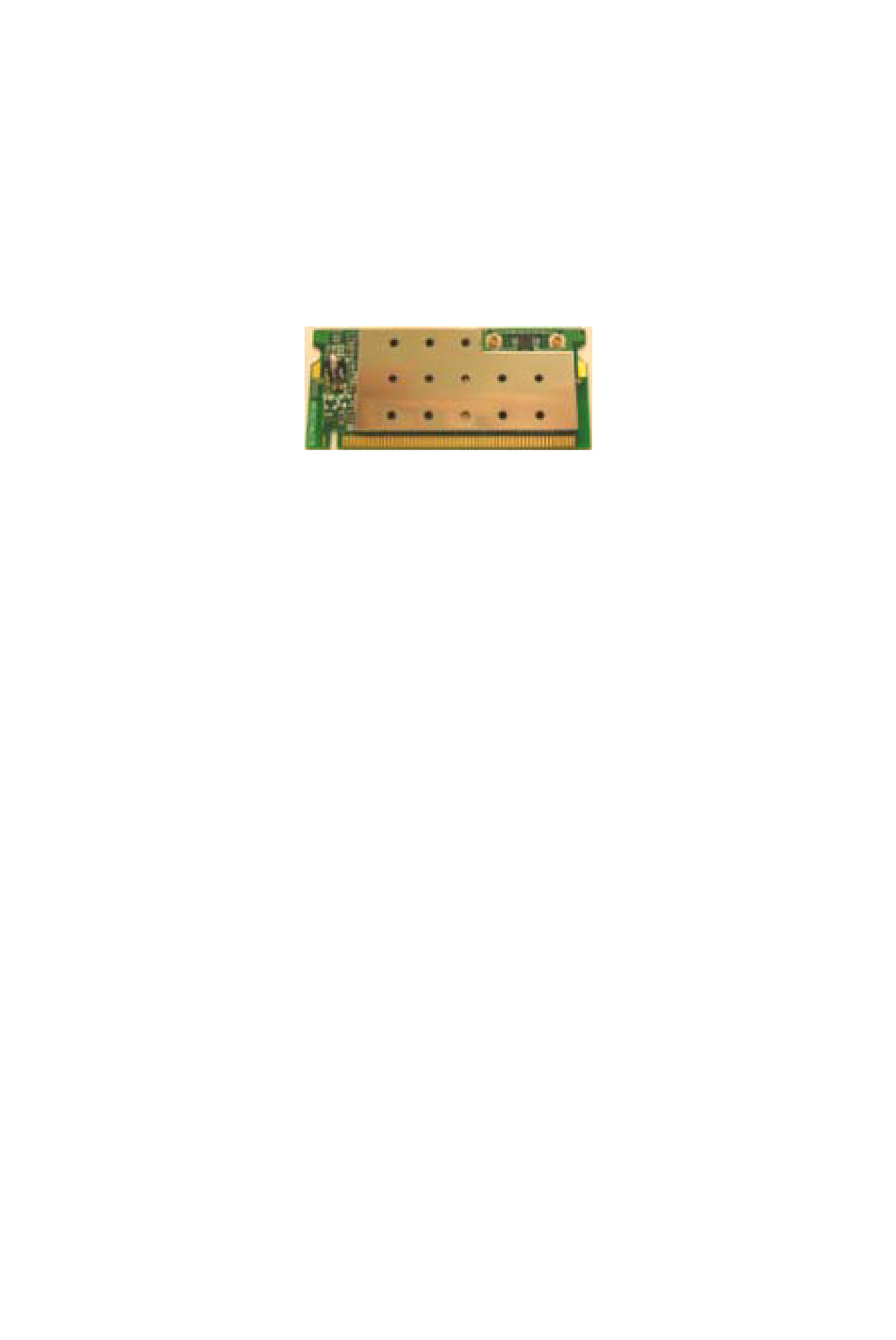

  • Page 1 WNC WLAN 802.11ABG MINIPCI User Manual (DCMA-81J) Version: 1.0 Nov. 2005...
  • Page 2 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. ™ ® Windows 98SE/2000/ME/XP are trademarks of Microsoft Corp.
  • Page 3 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module.

  • Page 5: Table Of Contents

    Table of Contents 1. INTRODUCTION 1.1 S ..................5 YSTEM EQUIREMENTS 1.2 F ........................5 EATURES 2. DRIVER/UTILITY INSTALLATION / UNINSTALLATION 6 2.1 I ......................6 NSTALLATION 2.2 A ................9 DDITIONAL ETUP ROCESSES 2.3 U ....................10 NINSTALLATION 3. CONNECTING TO AN EXISTING NETWORK 11 4.

  • Page 6: Introduction

    1. Introduction Thank you for purchasing the WLAN 802.11a/b/g mini-PCI Module that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference. 1.1 System Requirements A laptop PC contains: 32 MB memory or greater 300 MHz processor or higher...

  • Page 7: Driver/Utility Installation / Uninstallation

    2. Driver/Utility Installation / Uninstallation 2.1 Installation Note! The Installation Section in this User Manual describes the first-time installation for Windows. To re-install the driver, please first uninstall the previously installed driver. See Chapter 2.3 “Uninstallation” in this User Manual. Follow the steps below to complete the driver/utility installation: 1.
  • Page 8 4. Click “Next” to continue or click “Browse” to choose a destination folder. 5. Click “Next”. 6. Click “Yes” to create a shortcut icon on your desktop.
  • Page 9 7. Click “Finish”. 8. You should now see a shortcut icon on your desktop.

  • Page 10: Additional Setup Processes

    2.2 Additional Setup Processes During software installation procedure, each operating system may prompt different specific options: 1. Windows 98SE: The system will request the original Windows CD during the installation process. When the installation is finished, you’ll have to restart your computer.

  • Page 11: Uninstallation

    2.3 Uninstallation Note! Before uninstallation, please close all running programs. 1. Click Start>Programs>WLAN a+b+g mini-PCI Module >UnInstall WLAN a+b+g mini-PCI Module. 2. Choose “Remove”. Click “Next”. 3. Click “OK” to start Uninstall. 4. Click “Finish”. Uninstall is now completed.

  • Page 12: Connecting To An Existing Network

    3. Connecting to an Existing Network 1. Double click the shortcut icon of WLAN a+b+g mini-PCI Module on the desktop, and the Configuration window appears. 2. Click on the Refresh button to list all available networks.
  • Page 13 Note! To automatically connect to the network with the strongest signal, select Enable Smart Selection. Any displays in Profile List. 3. From the list of “Available Networks”, choose one network by double clicking the Network Name. One of the following dialog boxes appears. Click “Yes” to continue.
  • Page 14 If selecting WPA or 802.1X, select the EAP type, then click on the Configure button to select the certificate. 6. If selecting WPA-PSK, click on the Configure button to enter the PassPhrase.
  • Page 15 If selecting Pre-Shared Key, click on the Configure button to enter the correct Encryption Keys. Key entry method: a.10hex digits: User must enter 10 hexadecimal digits. The hexadecimal define is "0-9" and "A-F". ex: 123456abc b.5 chars: User must enter 5 characters. ex: ab3#@ c.13 chars: User must enter 13 characters.
  • Page 16 Additional Note for Windows XP In Windows XP, it is recommended that you use the WLAN a+b+g mini-PCI Module Configuration Utility. Before using the Utility, please follow the steps below to disable the Windows XP Zero Configuration: Option 1: 1. Double click the shortcut icon to open the Utility. 2.

  • Page 17: Creating An Ad Hoc New Network

    4. Creating an Ad Hoc New Network 1. In the Configuration window, click New 2. Select the “Profile Editor” tab.
  • Page 18 3. Choose the check box of Enable Advanced Setting to edit all settings. 4. If joining or creating an Ad-Hoc network, choose Ad Hoc. 5. If the correct country is not selected, select the country where the computer is located. ALERT! Different countries have different regulations that affect which channels can be used.
  • Page 19 9. Enter an encryption key in the Shared: First field. 10. Click OK (or Apply if using the other tabs) to save the settings. The new Network Name is listed in the Profile List. The driver does not allow channel selection in Ad-Hoc mode. Instead, the driver starts with an initial channel then checks channel status.

  • Page 20: Modifying A Wireless Network

    5. Modifying a Wireless Network 5.1 Infrastructure Mode and Ad Hoc Mode You can set the Wireless Network Adapter to work in either Infrastructure mode or Ad Hoc mode. Infrastructure Mode In infrastructure mode, devices communicate with each other by first going through an Access Point (AP).

  • Page 21: Modifying A Wireless Network

    5.2 Modifying a Wireless Network 1. Open “WLAN a+b+g mini-PCI Module Configuration” by double clicking the shortcut icon on the desktop. Note! If there’s no network name listed in the “Profile List”, click Refresh button and double click a Network Name from Available Networks. The chosen Network Name is listed in the Profile List.
  • Page 22 3. Select Profile Editor tab and edit the settings. Click OK to save the modifications. Configuration Name: This name identifies the configuration. This name should be unique. Network Name (SSID1) (SSID2) (SSID3): The name of the wireless network. This name cannot be longer than 32 characters. If the field is set to be “ANY”...
  • Page 23 “Super A”, “Super G” or “Auto”. “Auto” allows the use of either 802.11a, 802.11g or 802.11b mode. Ad Hoc Net Start: Specifies a band to establish an Ad Hoc network if no matching SSID is found. Four options are available: 802.11b, 802.11a, 802.11aTurbo and 802.11g.
  • Page 24 4. Select Security tab and choose the security mode. Note! Check with your Network Administrator for the security features supported by your AP. WPA: Enables the use of WiFi protected Access (WPA). This option requires IT administration. a) Select WPA to open the WPA EAP drop-down menu. The options includes TLS and PEAP.
  • Page 25 Pre-Shared Key: Enables the use of pre-shared keys that are defined on the AP and the station. a) Select the Pre-Shared Key radio button. b) Click on the Configure button and complete the configuration information in the Define Certificate dialog. None: No security.
  • Page 26 6. If selecting WPA-PSK, click on the Configure button to enter the PassPhrase. The PassPhrase must be a minimum of 8 printable ASCII characters. The PassPhrase should be at least 20 characters to make it more difficult for an attacker to decipher the key. 7.
  • Page 27 When the length is changed, the number of available characters in the field automatically changes. If a previously entered key is too long, the key is automatically truncated to fit. If the key length is increased again, the key does not update to the previous value.

  • Page 28: Default Settings Windows Xp Zero-Configuration

    5.3 Default Settings Windows XP Zero-Configuration You may also choose the default parameters and directly proceed to Windows XP zero-configuration through the steps below: 1. Go to “Control Panel” and open “Network Connections”. 2. Right-click the Wireless Network Connection of “WLAN a+b+g mini-PCI Module”, and make sure this connection is Enabled.

  • Page 29: Appendix A: Faq About Wlan

    Appendix A: FAQ about WLAN 1. Can I run an application from a remote computer over the wireless network? This will depend on whether or not the application is designed to be used over a network. Consult the application’s user guide to determine whether it supports operation over a network.
  • Page 30 Sequence Spread Spectrum technology, it has the inherent security feature of scrambling. On the software side, WLAN offers the encryption function (WEP) to enhance security and access control. 6. What is WEP? WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit or 128-bit shared key algorithm, as described in the IEEE 802.11 standard.
  • Page 31 Specifications 2.312 – 2.472GHz, 2.484 GHz Frequency Band U-NII: 5.15 - 5.35GHz, 5.725 - 5.825GHz ISM: 5.725 – 5.850 GHz DSRC: 5.850 – 5.925 GHz Europe: 5.15 - 5.35GHz, 5.47 - 5.725GhHz Japan: 5.15 – 5.35GHz 802.11 a/b/g Modulation technique DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK,QPSK, 16-QAM, 64-QAM) Channels support...
  • Page 32 Outdoor: 85m@54Mbps, 250m@6Mbps Indoor: 20m@54Mbps, 40m@6Mbps 802.11b Outdoor: 250m@11Mbps, 300m@1Mbps Indoor: 30m@11Mbps, 50m@1Mbps 802.11g Outdoor: 80m@54Mbps, 250m@6Mbps Indoor: 15m@54Mbps, 35m@6Mbps Operation System Windows®98SE, ME, 2K, XP, NT4.0 supported 59.75mm(L) * 25.50mm (W) * 5mm (H) Dimension 64-bit,128-bit, 152-bit WEP Encryption Security 802.1x Authentication AES-CCM &...
