REV：0.3

PL3502Q-US-SMT00010A-V1

ERP P/N:

PL3502Q/PGD728，SMT000,REV.B，145x210mm，80g

"Model No. PGD718/PGD728"，RoHS2.0，REACH，Prop65，POPs，PAHs

186c

Date:2017-09-22

Designer：

PIN Genie Smart Lock

User Manual

Thank you for choosing our PIN Genie product.

Please read this manual carefully to ensure the Smart Lock is used safely and reliably.

You should keep it for future reference and maintenance.

Model No. PGD718 / PGD728

U.S. Patent No. 9,665,706

V.092017

Table of Contents

Need help?

Do you have a question about the PIN Genie Smart Lock PGD728 and is the answer not in the manual?

Questions and answers

Summary of Contents for Smartec PIN Genie Smart Lock PGD728

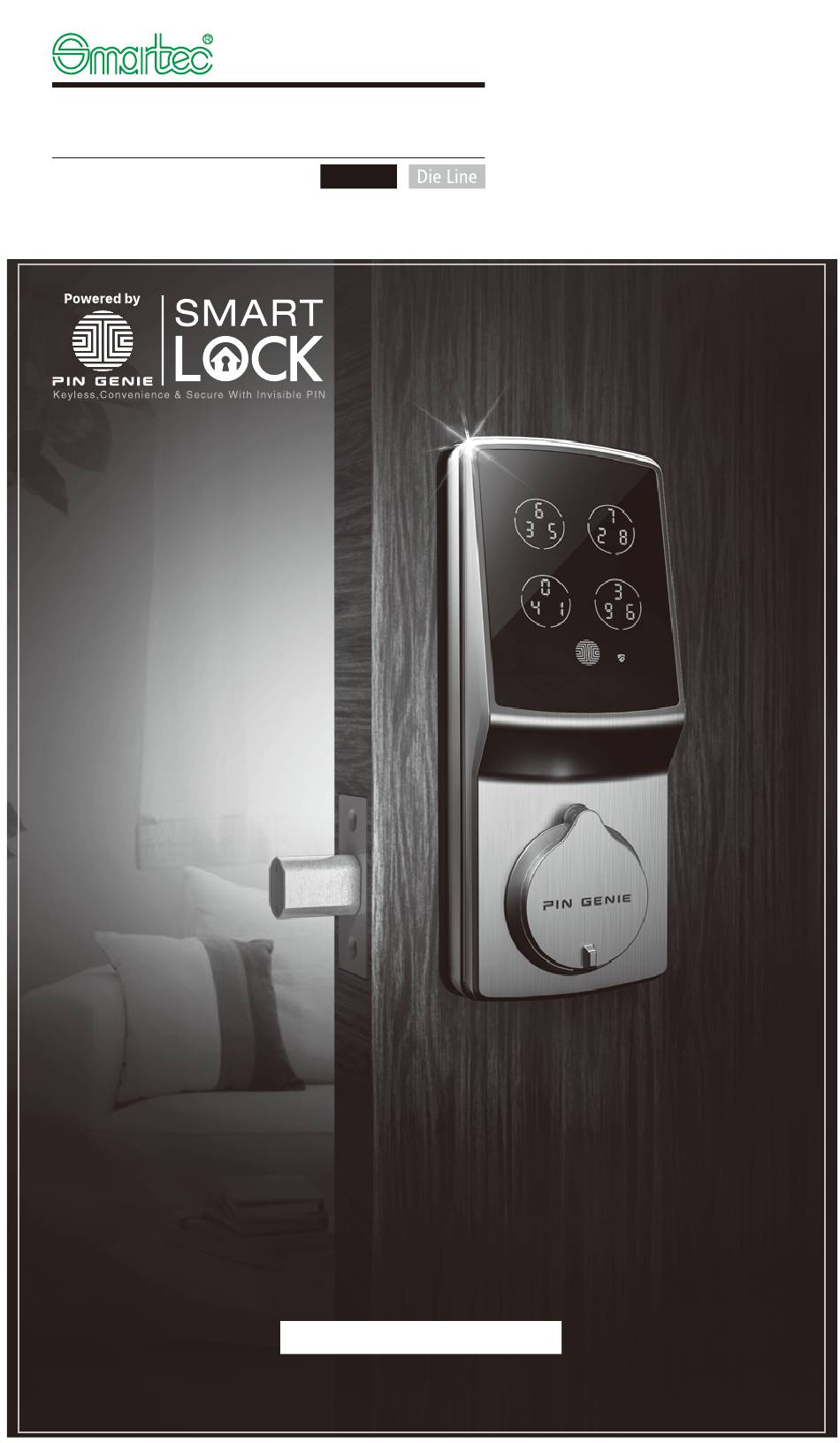

Page 1 REV：0.3 PL3502Q-US-SMT00010A-V1 ERP P/N: PL3502Q/PGD728，SMT000,REV.B，145x210mm，80g “Model No. PGD718/PGD728”，RoHS2.0，REACH，Prop65，POPs，PAHs 186c Date:2017-09-22 Designer： PIN Genie Smart Lock User Manual Thank you for choosing our PIN Genie product. Please read this manual carefully to ensure the Smart Lock is used safely and reliably. You should keep it for future reference and maintenance.

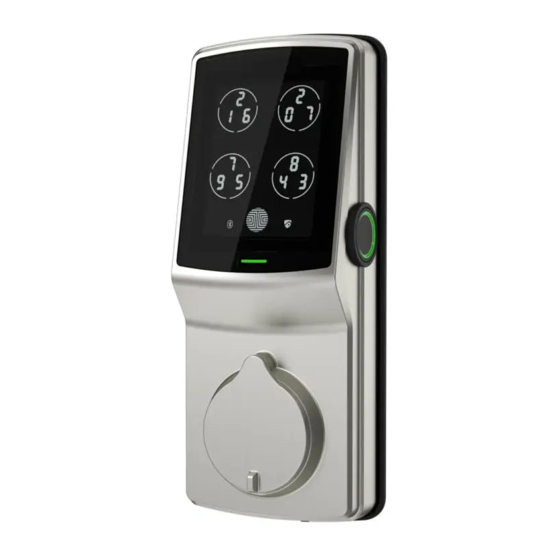

Page 2 About PIN Genie Smart Lock PGD718 Essential / PGD728 PRO ( Bluetooth Version) PGD 718 / PGD728 Smart Lock is keyless and equipped with the patented innovative PIN Genie Pad, which is peep proof and hidden camera proof. It is with a high security level that even when people watch you entering your PIN, they will not be able to know it.
Page 3: Table Of Contents
Contents Section 1 Installation Instruction ０１ 1.1 Installation overview 1.2 Assembly parts 1.3 Prepare door and check dimensions 1.4 Adjust the backset of latch 1.5 Extend the bolt 1.6 Install latch 1.7 Prepare exterior assembly 1.8 Install exterior assembly 1.9 Install interior assembly 1.10 Install batteries 1.11 Install strike 1.12 Install battery cover...
Page 4: Section 1 Installation Instruction
Section 1 Installation Instruction Installation overview １．１ Assembly parts １．２...
Page 5: Prepare Door And Check Dimensions
Prepare door and check dimensions １．３ If drilling a new door, please use the template supplied. 1/2" 12mm * Drill hole 3-109/127"(98mm) 2-3/8"(60mm) 2-3/4"(70mm) 1" 2-1/8" 25mm 54mm 1-3/8"—2" (35mm—50mm) * Drill hole Adjust the backset of latch １．４ Hold the latch in front of the drilled hole as shown below. If the latch holes are centered in the drilled hole, no adjustment is needed.
Page 6: Extend The Bolt
Extend the bolt Install latch １．５１．６ Extend the latch bolt as shown. P(2X) Pay attention to the direction of the latch. Prepare exterior assembly １．７１ Vertical Take out the screw which When the bolt is extended, the is being used for fixing torque blade should be kept in the cylinder during transit a vertical position.
Page 7: Install Exterior Assembly
Install exterior assembly １．８１２ When the bolt is extended, the torque blade should be kept in a vertical position. Note: Please use the physical key to rotate the torque blade Cable goes underneath the latch in vertical position and then pull out the key.
Page 8: Install Interior Assembly
Install interior assembly １．９１２ Open the battery compartment by unscrewing the screw and remove the cover. Note: Do not install batteries yet! Connect the cable. Pay attention to the direction and ensure tight cable connection. Make sure thumbturn is in the vertical position.
Page 9: Install Batteries
Install batteries Install strike １．１０１．１１ Install 4 new AA batteries. Make sure batteries are correctly oriented. Before installing the last battery, press and hold “Program” button until you finish, then you will hear a long beep. Once you release the button, the latch will automati- P(2X) cally do a self-check and the display keypad will play boot animation.
Page 10: Section 2 Introduction Of The Smart Lock
Section 2 Introduction of the smart lock Components ２．１ Back (Main Body） Front (Front Body） Battery Compartment Cover Battery compartment OK Button Lock Status icon Power Status Bluetooth light-PGD728 Bluetooth icon-PGD728 Key Hole Key Hole Cover Restart Button Thumbturn Reset Button Display Keypad Switch Program Button Back-up Battery...
Page 11: Setting Switch
Specifications Certifications Color: Satin Nickel, Venetian Bronze Function: Single cylinder deadbolt Door Prep: 2 1⁄8" diameter face hole & 1" diameter FCC Certified latch hole This device complies with Part 15 of the Door Handing: Reversible FCC Rules. Operation is subject to the Door Thickness: 1 3⁄8"...
Page 12: Reset
报警功能开启状态报警功能开启状态 Successfully disarm. Press and hold any two circles Alarm mode ON Alarm mode OFF on the screen for 1.5 second, the circles you pressed will flash and you will hear a long BEEP. Reset ２．３　 Reset: Restore the smart lock to factory default setting. Use a stick-like object such as a clip, toothpick etc.
Page 13: Restart
Reboot ２．５　 Reboot: Press and release the restart button. The smart lock will beep once and restart. The smart lock is ready for use again. Note: No setting will be changed. Restart Button PIN GENIE button ２．６ Status Indicator Alarm system triggered Quick flashing green and red light Low battery Slow flashing red light...
Page 14: Section 3 Programming Passcode
Condition Indicator Solution Battery Icon on the display keypad outside will light up to indicate low Replace batteries immediately to battery . Meanwhile, the PIN avoid battery failure. Smart lock can Batteries low GENIE button on the back will flash still be operated for approximately 300 cycles in low battery condition.
Page 15: How To Enter Settings
How to enter settings ３．２ Press the “Program” button and the screen will be activated. The setting page is as shown below. Number Mode Add Passcode Delete Passcode Check Passcode ( On Model PGD718) OK Button OK Button PROGRAM Bluetooth Switch ( On Model PGD728) Alarm Sensitivity •...
Page 16: Delete Passcode
If the passcode you entered twice match, it will be displayed on the screen for your final confirmation. Press . Your passcode is now set. To quit, press "OK" or Input Y to confirm Setting page • If the passcode entered twice does not match, an error message will appear for a second.
Page 17: Check Passcode ( On Model Pgd718) / Bluetooth Switch ( On Model Pgd728)
Press to delete. Press to end. Hold down the OK button Press to switch Confirm deletion Note: There are two situations that users could not delete passcode. • If there is no passcode preset, the delete passcode mode will be invalid. The default passcode will not be shown on the display key pad.
Page 18: Alarm Sensitivity
Continue pressing any digit on the screen to check other pass- codes. After all sets of passcode are displayed, the screen will auto- matically return to the setting page. For example: to check the second Press to finish set passcode (1-2-3-4-5-6) Press to switch Query Result Note: If there is no passcode preset, the...
Page 19 There are three levels of sensitivity. The flashing circle represents the current sensitity level. (Middle) Alarm Sensitivity mode Level Indication Knock （Low） Beep*2 Open & Close the door （Middle/Factory） Alarm*15seconds Force open（High） Alarm*3Minutes Choose the required level and press “OK” . For example, to switch from Factory setting to Low.
Page 20: Section 4 Locking And Unlocking The Door
Section 4 Locking and unlocking the door Unlock from outdoor ４．１ 1. Slide your hand across the screen to activate you PIN Genie Smart Lock. · Enter the passcode within 1 minute. If you mistakenly enter the wrong digits, press OK to re-enter.
Page 21 • If the correct code has been entered twice, the door will be unlocked. If not, it will lead to a 10-minute disabling period. First wrong attempt: leads to a 10-minute disabling period. • After 10 minutes, it will go back to safe mode again. Repeat steps to unlock under safe mode.
Page 22: Unlock & Lock From Indoor
Unlock & Lock from indoor Lock from outdoor ４．２４．３ Rotate the inside thumbturn as below. Under Auto Lock mode, the smart lock will automatically relock the door 30 seconds after unlocking. Alternatively you can press the OK button to lock the door. Automatic lock When the door is open the OK button is flashing, press the OK button to lock...
Page 23 NOTE: Changes or Modifications not expressly approved by the party responsible could void the user’ s authority to operate this device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
