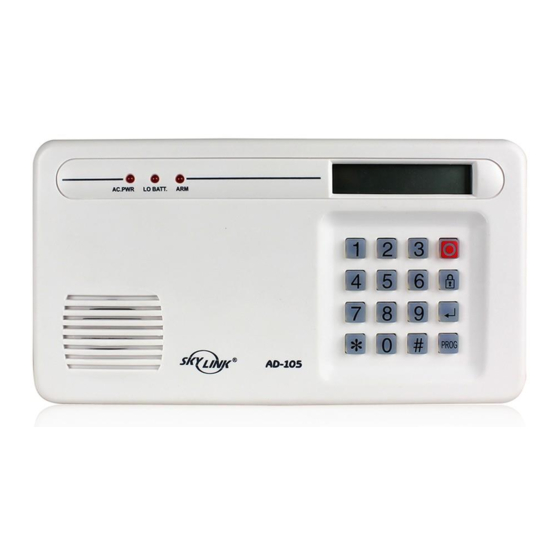

OVERVIEW
The dialer model AD-105 or AD-106 provides the same feature to dial the pre-programmed
phone numbers and sends a personalized pre-recorded message. The model number AD-105
or AD-106 is for different market strategy.
LAYOUT
LIGHTS
ACPWR light on - System is being powered by electrical current.
LOBATT light off – Backup battery is connected and working.
ARM light on – System is armed
SOUNDS
Short beep – you have pressed a key in the right order.
Two short beeps – dialer is turned on for the first time.
Long beep – you have made a mistake
Steady repeated beep – the dialer has been triggered in DELAY mode.
Keypads
Panic – call / end the emergency call
Arm – arm / disarm dialer
Auto Dialer
MODEL: AD-105 / AD-106
USER'S INSTRUCTION
Advertisement
Related Manuals for SkyLink AD-106
Summary of Contents for SkyLink AD-106
- Page 1 MODEL: AD-105 / AD-106 USER’S INSTRUCTION OVERVIEW The dialer model AD-105 or AD-106 provides the same feature to dial the pre-programmed phone numbers and sends a personalized pre-recorded message. The model number AD-105 or AD-106 is for different market strategy.
- Page 2 Enter – input the user option Program – enter programming mode / cancel STANDARD programming All programming sequences begin with the Personal Identification Number (PIN). There is only one MPIN which has been factory set at 0 0 0 0. Message playback mode The dialer can be compatible to old dialer.
- Page 3 [PROG 1] Message playback, related to 0 = main message, 9/40sec 1 = zone 1 message, 2=zone 2 message, 3=zone 3 message …. Programming Telephone numbers redial counts and repeat counts [PWD] + [PROG] + [4] + [d] + [ENTER] d= memory 1-9 to store telephone number Telephone no can be 0-9, *, #, P, L [PROG] delete phone no / pause...
- Page 4 [PWD] + [PROG] + [7] + [d] 1=10sec 2=20sec 3=30sec 4=40sec 5=50sec Default = 2 Program delay duration [PWD] + [PROG] + [8] + [d] Entry/Exit delay 1=instant, enter arm mode instantly. 2=10sec, 3=20sec, 4=30sec, 5= 40sec Default is 1 Program pager pause [PWD] + [PROG] + [9] + [d] User can only enter 1 pager pause in phone no.
-
Page 5: Warranty
User can exit the premises within the preset delay duration. After this preset delay duration, the dialer will be in arm mode. When any sensor monitored by the dialer is triggered, the dialer will beep for preset duration. This duration allow user to go to the dialer and deactivate it before it begins to dial. If you successfully aborted the call, the display will go back to standby mode. - Page 6 Consult the dealer or an experienced radio/TV technician for help. CUSTOMER SERVICE If you would like to order Skylink’s products or have difficulty getting them to work, please : 1. visit our FAQ section at www.skylinkhome.com, or 2. email us at support@skylinkhome.com, or 3.
