INSTALLER / CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, AN ELECTRICAL SHOCK
OR FIRE MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
Service must be performed by a
qualified service agency.
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS OR
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
APPLIANCE.
C
US
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER

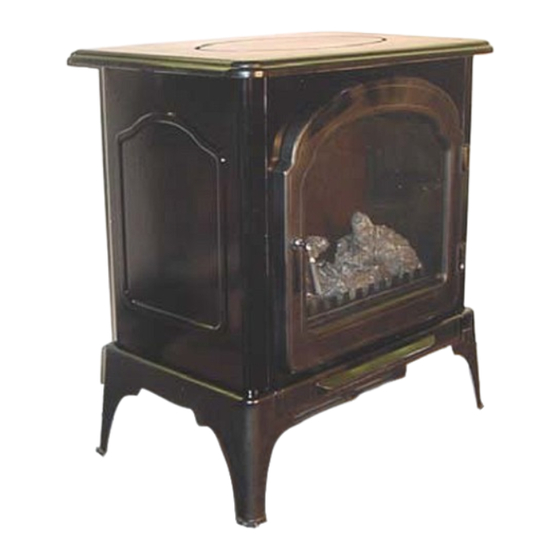

Wilshire
Freestanding Electric
Stove
Model: HES60
Installation Instructions and
Homeowners Manual
10006943 3/06 Rev. 3
Advertisement
Table of Contents
Summary of Contents for Century Hearth Wilshire HES60
-
Page 1: For Your Safety
GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER Wilshire Freestanding Electric Stove Model: HES60 Installation Instructions and Homeowners Manual 10006943 3/06 Rev. 3... -
Page 2: Table Of Contents
Locating Your Stove ........ -
Page 3: Important Instructions
Your new freestanding electric stove may be installed virtually anywhere in your home. However, when choosing a location for your new stove, ensure that the general instructions are followed. Also, for best effect, install the stove away from direct sunlight. -
Page 4: Stove Dimensions
Stove Dimensions Width of Stove Top Width at Legs Depth at Legs Depth at Handle Depth at Stove Top Total Height 24” 610 mm 24” 610 mm 15” 381 mm 410 mm 16 ” 15” 381 mm 26” 660 mm... -
Page 5: Clearance To Combustibles
The unit comes standard with a 6’ (1.8m) long three wire cord, exiting from the rear of the stove. Plan the installation to avoid the use of an extension cord. If an... -
Page 6: Service Instructions
2. Let stove cool if it has been operating. 3. Remove the access plate on the back of the stove by removing the screws. You should have a clear view of the light bulbs. Put your hand over the silver flame generator to remove or replace the light bulb(s). -
Page 7: Electrical Wiring Diagram
Assembly White Main On/Off Switch The On/Off switch supplies power to all of the functions of the stove. It is located behind the front door. WARNING: During any service of this appliance, the power to the unit must be turned off. It is not acceptable to use the “On/Off”... -
Page 8: Warranty
BASIC WARRANTY: CFM Corporation (hereinafter referred to collectively as the "Company") warrants that your new Century stove is free from manufacturing and material defects for a peri- od of one year from date of installation, subject to the following conditions and limitations.
Need help?
Do you have a question about the Wilshire HES60 and is the answer not in the manual?
Questions and answers

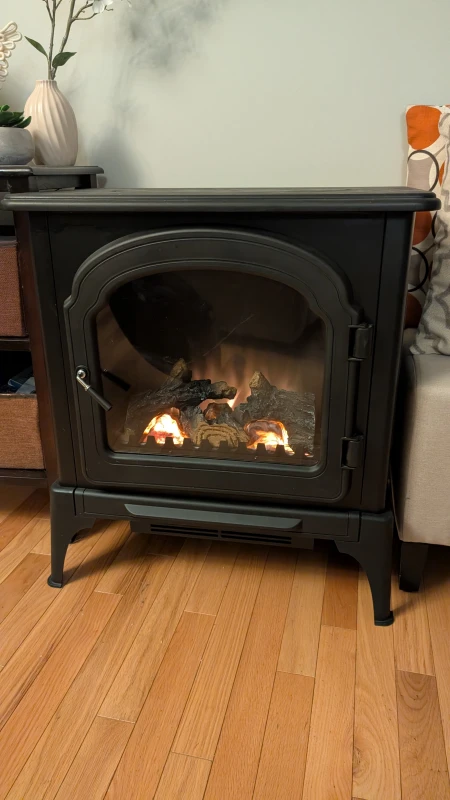

With the Serial # HES8005220725 can you tell me the year of the stove?
