Ingenico IST150 Installation Manual

Safety instruction

Power supply network: To switch off the iST150, disconnect first the link to the host and
then the power adapter (if there is one) from the power supply network
For Pluggable Equipment Type A, the protection in the installation is assumed to be 20A.
Only power adapter supplied by Ingenico must be used.

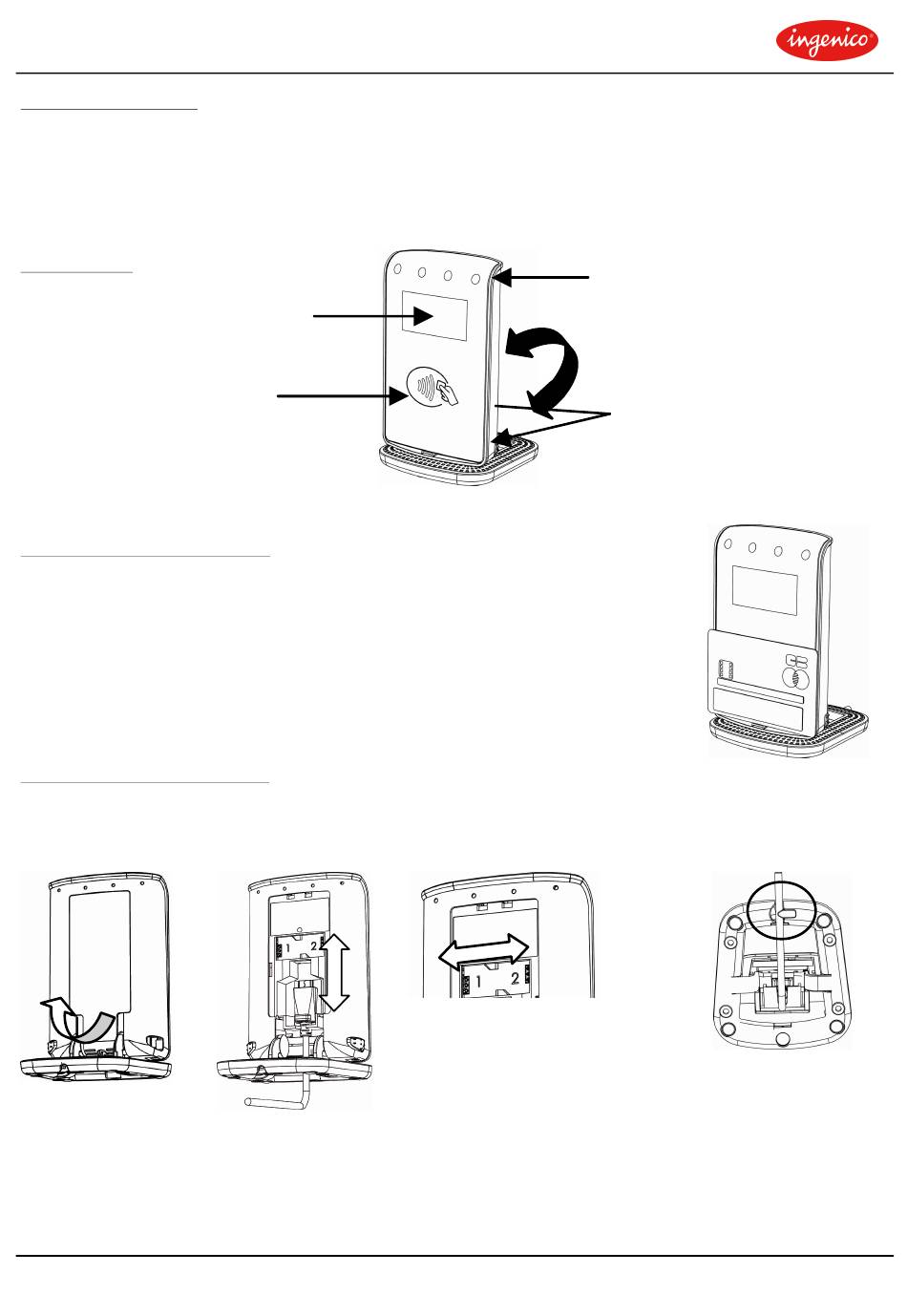

Installation

Graphic display
Contactless
active area
Push the two buttons on each side at the same time and adjust the angle.
Reading card Contactless
Keep the card firmly up to the active area. Keep the card
motionless to the target during the transaction.
Your contactless terminal has a row of four status lights
that are visible from the front and back side.
Installing SAM and cable
Before starting, switch off the terminal by (see safety instruction).
In order to access the SAM card you must first remove the cover located at the back:
Press the clip
of the cover
and lift the
cover
90000346 R11 000 01/4710
INGENICO – 192 avenue Charles de Gaulle 92200 Neuilly sur Seine – France
iST150 INSTALLATION GUIDE
Hang on the
connector
Insert the SAM into the
slot market (1), (2).
Take care to ensure
that the SAM Card is
inserted in the correct
manner. The cut corner
must be positioned as
indicated on
picture.
Contactless lights
on both side
Angle position
buttons
To position the cable
put it in the slot then
proceed in reverse
order.
the
