Wireless Computing RF-222 Operating Instructions

Operating instructions

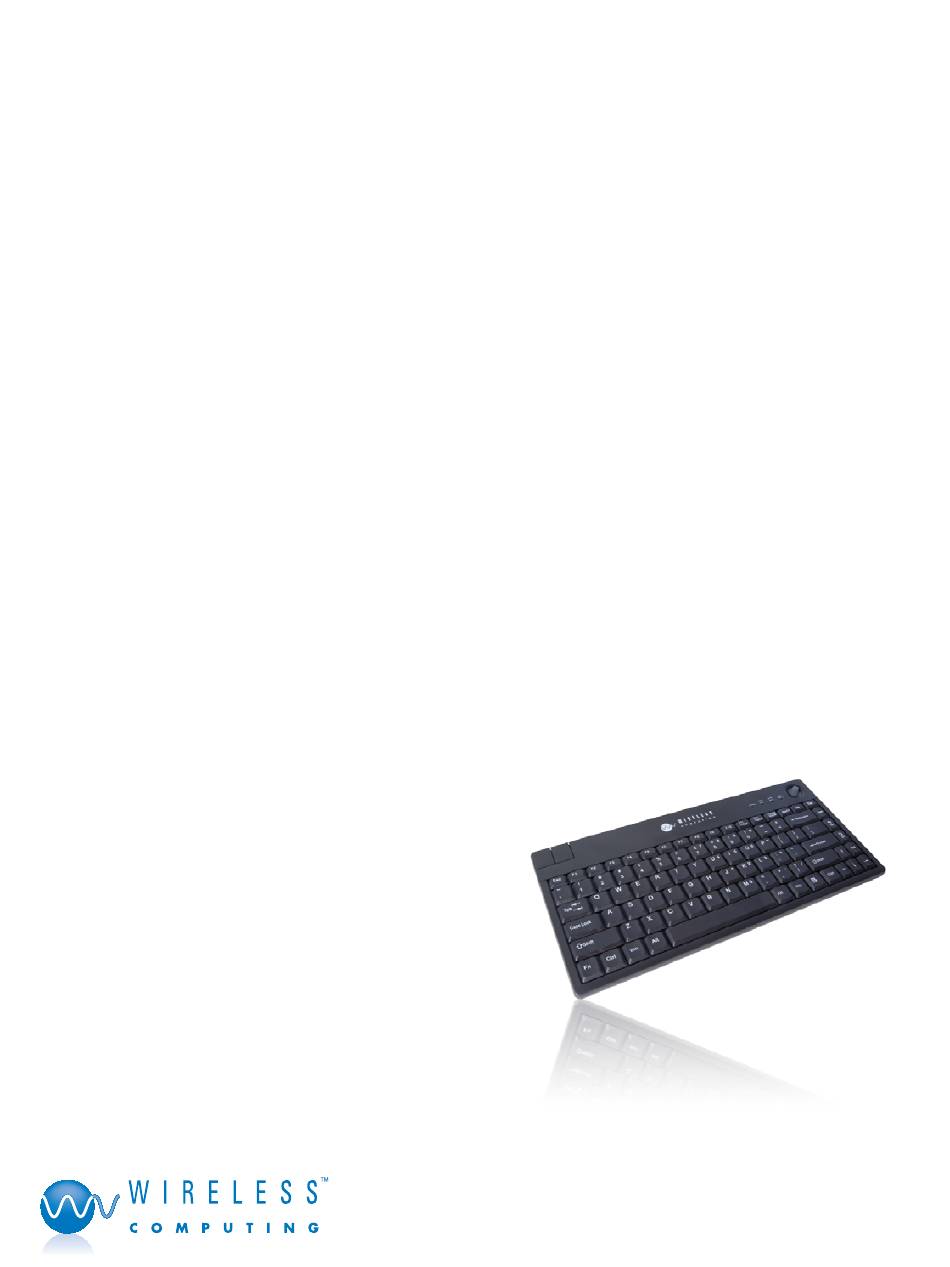

RF-222 Wireless Keyboard
with Optical Trackball
SETUP
1. Remove the battery door on the underside of the
keyboard.
2. Insert two AA alkaline batteries (included) into the
battery compartment. The batteries face in oppo-
site directions. The direction of each battery is
marked.
3. Replace the battery door.
4. Plug the receiver into a USB port on your
computer. Do not place the receiver on or in a
metal cabinet or near other equipment and strong
EMI sources.
SELECT ADDRESS TO ENABLE ENCRYPTION
When delivered, your RF-222 operates on address
zero. You may leave it on address zero, but while on
address zero, keystrokes are not encrypted and your
computer may receive and respond to signals from
other Wireless Computing products.
1. Press and release the black button on the under-
side of the receiver. The LED on top of the receiv-
er begins blinking.
2. While the LED on the receiver blinks, hold down
the Fn key and press-and-release the A key. This
sets the keyboard and receiver to one of 65,000
random addresses and enables encryption.
3. If you have a Wireless Computing mouse or
remote control and wish to use it with this key-
board, then you'll need to select this same
address for the additional device(s). Refer to the
mouse or remote control instructions for the but-
ton(s) to press.
Each time you set an address, the receiver LED
blinks for 30 seconds, allowing you to address an
additional keyboard, mouse or remote control.
USING A MACINTOSH
To put the keyboard into Macintosh mode, or to tog-
gle back to Windows mode, press the Left-Win, Left-
Alt, Right-Alt, and Right-Win keys together at the
same time.
Note these different key functions:
KEY LABEL
Win
Alt
Pause/Break
OPERATION
The RF-222 Compact Keyboard is designed to oper-
ate reliably at distances of 100 feet (31 meters).
Operating range will vary depending on positioning of
the receiver and keyboard, nearby sources of interfer-
ence and other environmental factors.
Pressing a key or rolling the trackball makes the
green "sending" LED blink on the keyboard and the
receiver LED blink green.
Wireless Computing, Inc., Austin, TX
512.263.2205 wirelesscomputing.com
MACINTOSH FUNCTION
Option/Alt
Cmd
F13
