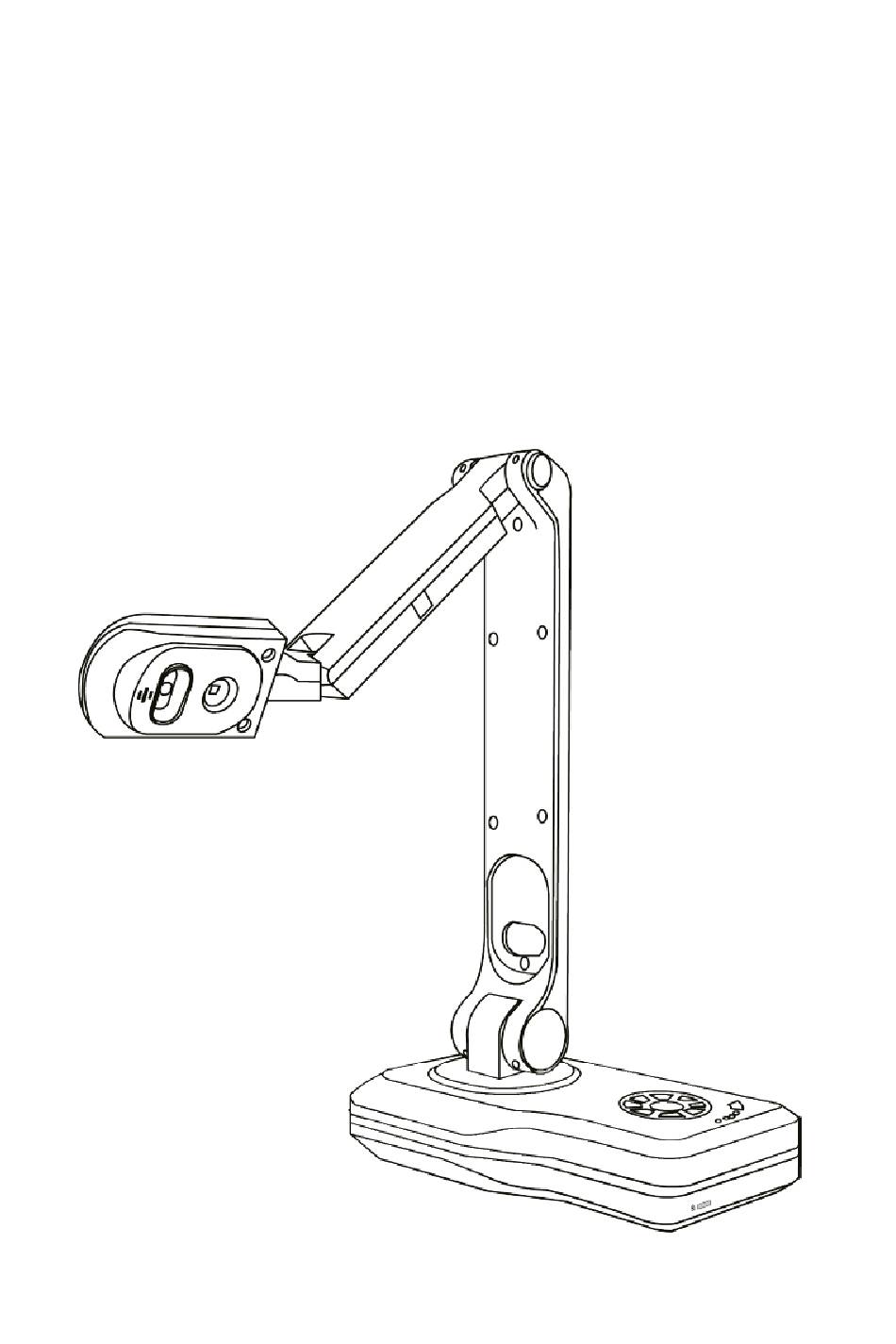

- Page 1 User’s guide celexon document camera DK800 Thank you for choosing a quality product from celexon. Read the instructions carefully before using the product and retain them for future reference.
- Page 2 Produkt gültigen Zertifizierungen sind auf unserer Webseite http:// de.celexon.com einsehbar. At http://uk.celexon.com you can find the latest version of the manual and download it simply by searching the identification number “4260094740657” in the search field. The declaration of conformity and the relevant certificates for this product are available on our website http://uk.celexon.com.
-
Page 3: Safety Instructions
The manufacturer does not warrant or guarantee the accuracy of the information in this document. Care instructions Clean the product with a soft, dry, clean cloth. In the box • celexon document camera V00 • Infrared remote control • 1.5m USB cable •... -
Page 4: Remote Control Functions
Remote Control Functions Switch Switch between VGA and HDMI output Resolution Change the screen resolution Show / Hide Menu (Auto Hide only) Online Switch from USB to video mode Zoom In Zoom in Zoom Out Zoom out Auto Autofocus Manual focus out (for 3D objects) Near Manual focus in (for 3D objects) Photo... - Page 5 Key assignments and inputs / outputs Kensington- HDMI OUT VGA OUT DC Power (to projector/IWB) (to projector/IWB) Port Infrared receiver SD slot VGA IN USB Interface (to PC) ( to PC)
- Page 6 Explanations of the inputs and outputs SD card slot: Here you can connect an SD card to the device to save or display pictures or videos. The SD card must be formatted in FAT32 format. HDMI output: Through the HDMI output, you can display the image produced by the document camera with a HDMI cable on a display device.
- Page 7 Switching between sources is only possible by switching the document camera on and off. Note: The celexon document camera V800 can be used with any TWAIN enabled PC software. Mouse function You can operate the document camera with a computer mouse connected to the USB port.
- Page 8 Description of built-in software Auto-focus Magnify selection Zoom in Zoom out Rotate Mirror Freeze Split screen Shooting (SD card required) Recording (SD card required) Thumbnail preview Picture In Picture Annotation Setting Curtain Spotlight Window...
-
Page 9: Technical Specifications
Technical specifications Model DK800 Image sensor 1/4“ CMOS Hardware 8MP 3264x2448 SXGA 1280x960 Resolution HD1080 1920x1080 HD720 1280x720 Automatic White Balance / Contrast ratio / Brightness / Focus / Digital noise Picture adjustments reduction / Still picture / Split screen /... - Page 10 Low Voltage Directive (LVD) 2014/35 / EU Restriction of use of certain hazardous substances (RoHS) 2011/65 / EU A copy of the Declaration of Conformity can be found at www.celexon.uk. Enter „4260094740657“ in the search field and select the article.
