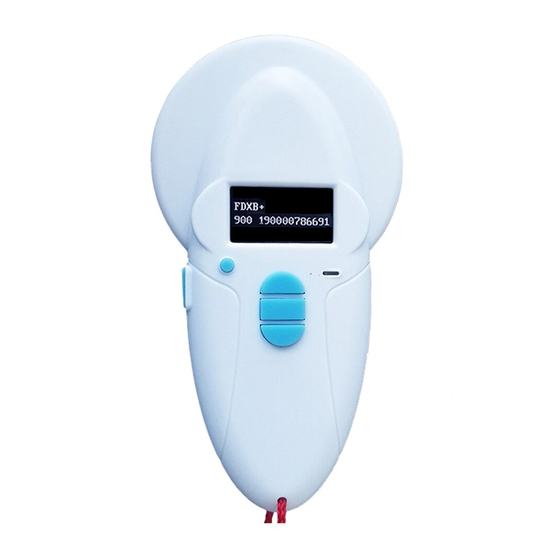

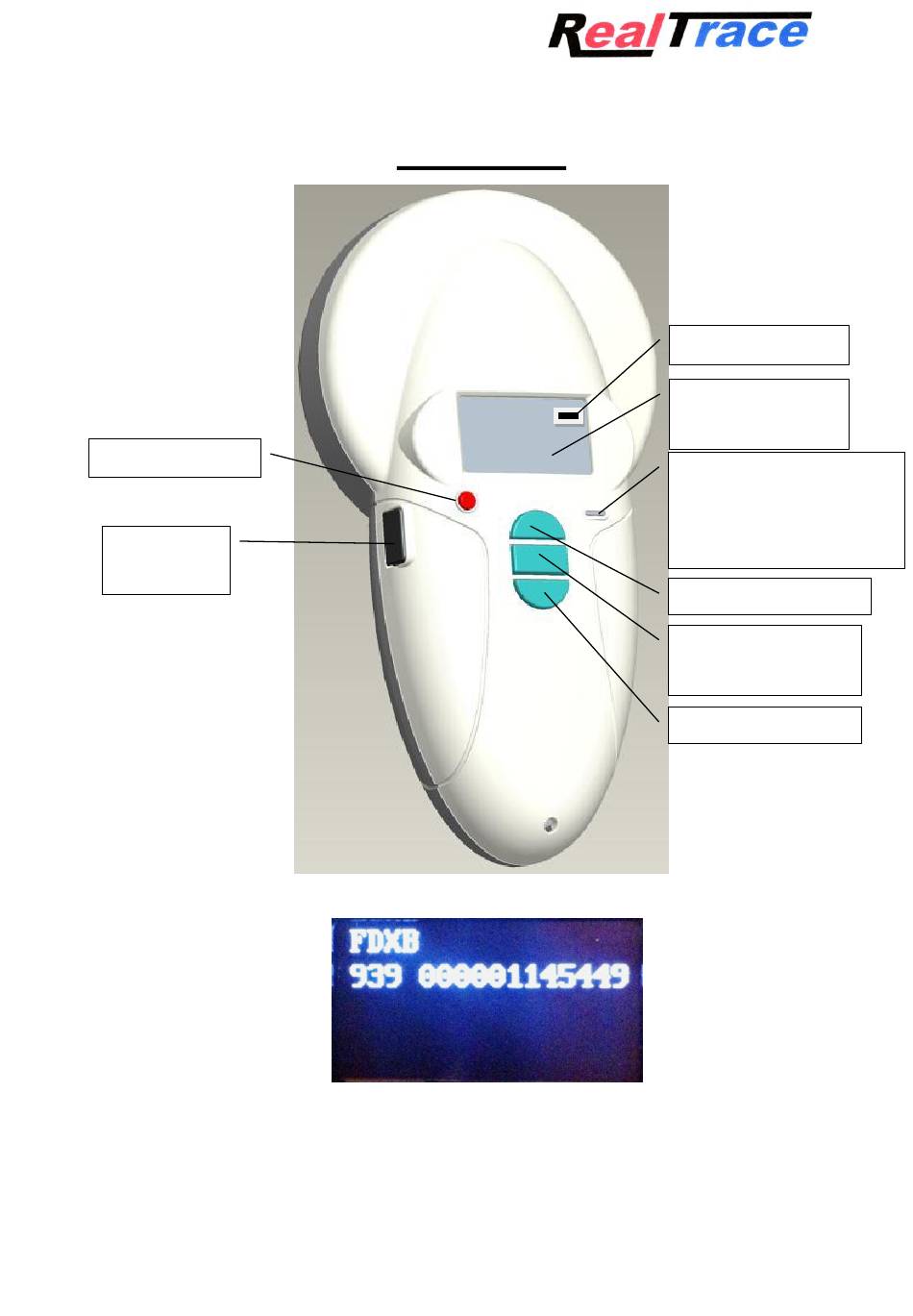

RT100 V8.
Battery charge level
Display OLED
128×64 pixels
In/out button (1)
LED blue Bluetooth activated
LED red charging battery
LED green battery charged
Mini USB
interface
Scroll up button (2)
Mid button (4)
( Enter)
Scroll down button (3)
ISO FDXB tag
26/02/2013
Advertisement
Related Manuals for RealTrace PetScan RT100 V8
Summary of Contents for RealTrace PetScan RT100 V8
- Page 1 RT100 V8. Battery charge level Display OLED 128×64 pixels In/out button (1) LED blue Bluetooth activated LED red charging battery LED green battery charged Mini USB interface Scroll up button (2) Mid button (4) ( Enter) Scroll down button (3) ISO FDXB tag 26/02/2013...
- Page 2 Reader characteristics 134.2kHz Read and write ISO 14223 Frequency Protocol ISO11784/5 FDX-A, FDX-B, EM4102, HDX ≥8 cm（12mm×2mm, glass tag） Reading range Display 128×64，black and white，OLED Keys 4 buttons Indication Battery charge control and Bluetooth . Buzzer USB port USB virtual comport，bluetooth virtual com.port Power supply Lithium battery，1400mAh，3.7V Dimension...
- Page 3 You can use Hyperterminal if your operating system is XP, or Datatransfer (Felixcan) or Realtrace Terminal with XP or Windows 7. Firstly, you will need to enter the communication parameters and the number of the USB port that your reader will be connected to.
- Page 4 “tags” currently marketed worldwide, provided that they comply with the ISO standard. ® Realtrace has developed a system called “WOOSIT ” which is comprised of: A reader /programmer...
- Page 5 Synoptic Menu SCAN Bluetooth SCAN NoTransponder found! Reading 20 seconds max. FDXB No transponder 939 2784879521125 found! After 25 seconds After 60 seconds Charging indicator light 26/02/2013...
- Page 6 Synoptic Menu “Language” SCAN Memory Language English English OK 5 seconds Français Français OK 5 seconds Español Español OK 5 seconds Italiano Italiano OK 5 seconds Portugues Portugues OK 5 seconds Deutsch OK Deutsch 5 seconds Polish Polish OK 5 seconds 26/02/2013...
- Page 7 Synoptic Menu “Bluetooth 1” Enable Bluetooth Memory Bluetooth Bluetooth SCAN Enable Button IN/OUT Bluetooth 26/02/2013...
- Page 8 Synoptic Menu « Bluetooth 2 » Disable Bluetooth Bluetooth Bluetooth Memory SCAN Button IN/OUT Disable Charging indicator light Bluetooth indicator light 26/02/2013...
-
Page 9: Erasing The Memory
Reader “Memory” function The V8 reader has a memory enabling it to store 1000 identifiers (tag numbers). This function must be activated by the user if he wishes to use it. Storage of numbers read by the V8 reader The V8 allows the user to store the numbers of the tags read in order to transfer them subsequently to a PC using the USB cable included with the reader. - Page 10 Synoptic Menu « Memory 1 » Enable the « Memory » Memory Bluetooth Language Memory Enable Button IN/OUT SCAN 26/02/2013...
- Page 11 Synoptic Menu « Memory 2 » Disable the “Memory” Memory is enable but there is no registration of ID numbers M: 0 Memory Language Bluetooth Disable Memory Button IN/OUT SCAN 26/02/2013...
- Page 12 Synoptic Menu « Memory 3 » Memory « Enable » but there are datas registered M: X Memory Language Bluetooth IN/OUT Button Send Press “OK” to Erase Sending 8 seconds ………………… …………. 8 seconds Press “OK” to confirm Erasing SCAN erase ……………………...
- Page 13 Serial link: use of the Windows « Hyperterminal » The current version of the PetScan RT100 V8, transmits the read identifiers to the PC it is connected to, either via the USB cable or its wireless link (Bluetooth). The PetScan does not wait for any order or acknowledgement from the PC.
- Page 14 Description of the frame transmitted each time a transponder is read The PetScan transmits the following frame to the PC after each valid reading : Octet at the start of Type of 8 Separation CRC-CCITT-control Carriage character character word, 16 ASCII format Return frame : ″U″...
- Page 15 /* Function that calculates CRC-CCITT 16 bits /* INPUT: unsigned char *inbuffer : 8 bits input vector over which CRC checksum is calculated must termined by 0x00 /* OUTPUT: unsigned int: 16 bits return of crc_ccitt checksum /*=======================================================================*/ /* OVERVIEW: Width = 16 bits Truncated polynomial = 0x1021 Initial value = 0xFFFF...
- Page 16 How to know what USB port the V8 is connected to. Windows XP When you connect a peripheral to a USB port on a PC, the PC automatically assigns it a port number. The peripheral is often automatically recognised by the application software, thus it is not necessary to configure it. This is the case with printers, scanners, etc.
- Page 17 Click! Then select « System » Cliquez! Then select « Device » Click! Then Select « Device Manager » 26/02/2013...
- Page 18 Cliquez! Then select « Ports (com et LPT) » Click! The number of the Com port is shown. Numéro du Port Com auquel est connecté le V8 26/02/2013...
- Page 19 How to know what USB port the V8 is connected to. Windows 7 Select as shown below. Click ! Then select « System » Click! Then select « Device Manager » 26/02/2013...
- Page 20 Click! Then select « Port COM et LPT» Click! The number of the Com port is shown. Com3 is the number of Port connected to the V8 The screens may be differents. It depends of the Windows version. 26/02/2013...
- Page 21 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
