HomeFree FDU-830 Operational Instructions

Wireless resident monitoring solutions, fall detection unit

Part Number - 350100004

Wireless Resident Monitoring Solutions 830

Fall Detection Unit Operational Instructions

The HomeFree system was designed to monitor special needs and Dementia

individuals in the care center environment. The Fall Detection Unit is one of the

many unique elements of this system.

The Fall Detection Unit is a small, battery operated device, connected to a chair or

bed monitoring mat, that can be used to notify care center staff members

whenever the resident gets out of the chair or bed. The Fall Detection Unit is

positioned on the chair or at the bedside.

outside the monitored area.

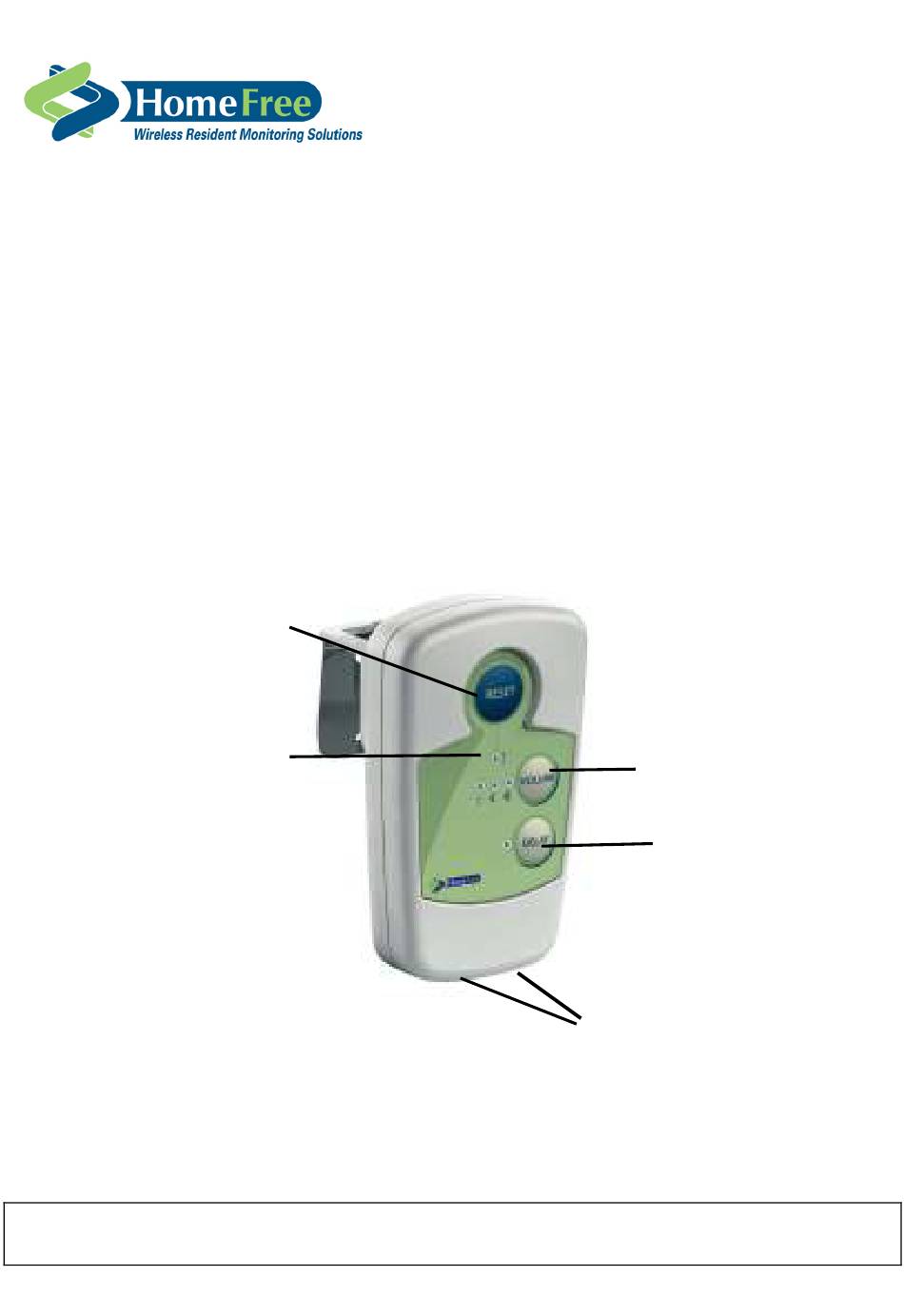

Alarm Reset /

Bypass Button

LED Indicator

Connecting the Fall Detection Unit

Plug the chair / bed /Incontinence mat into the mat connection jack, ensuring that

the cable between the mat and the Fall Detection Unit can move freely and is clear

of any moving parts.

The FDU-830 can be connected to the pressure pad and incontinence pad at the

same time but not the same units at same time.

The Fall Detection Unit is not for use

Mats Connection

Jack

Revision – A00-000

Alarm Volume

Panel

LED Indicator

Table of Contents

Do you have a question about the FDU-830 and is the answer not in the manual?

Page 1 Fall Detection Unit can move freely and is clear of any moving parts. The FDU-830 can be connected to the pressure pad and incontinence pad at the same time but not the same units at same time.
Page 2 Part Number - 350100004 Revision – A00-000 Place the chair / bed mat into its required position (refer to the placement instructions for the appropriate chair / bed mat). Place the Fall Detection Unit on the chair or at the bedside. Activating / Deactivating the Fall Detection Unit Insert the batteries in order to activate the Fall Detection Unit.
Page 3 If the monitored person is off the pad the FDU-830 enters to Of Mode. If the monitored person still on the pad the FDU-830 enters to On Mode.
Page 4 Part Number - 350100004 Revision – A00-000 The Fall Detection Transmitter Unit FDU-830 complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1) This device may not cause harmful interference and 2) This device must accept any interference received, including interference that may cause undesired operation.
