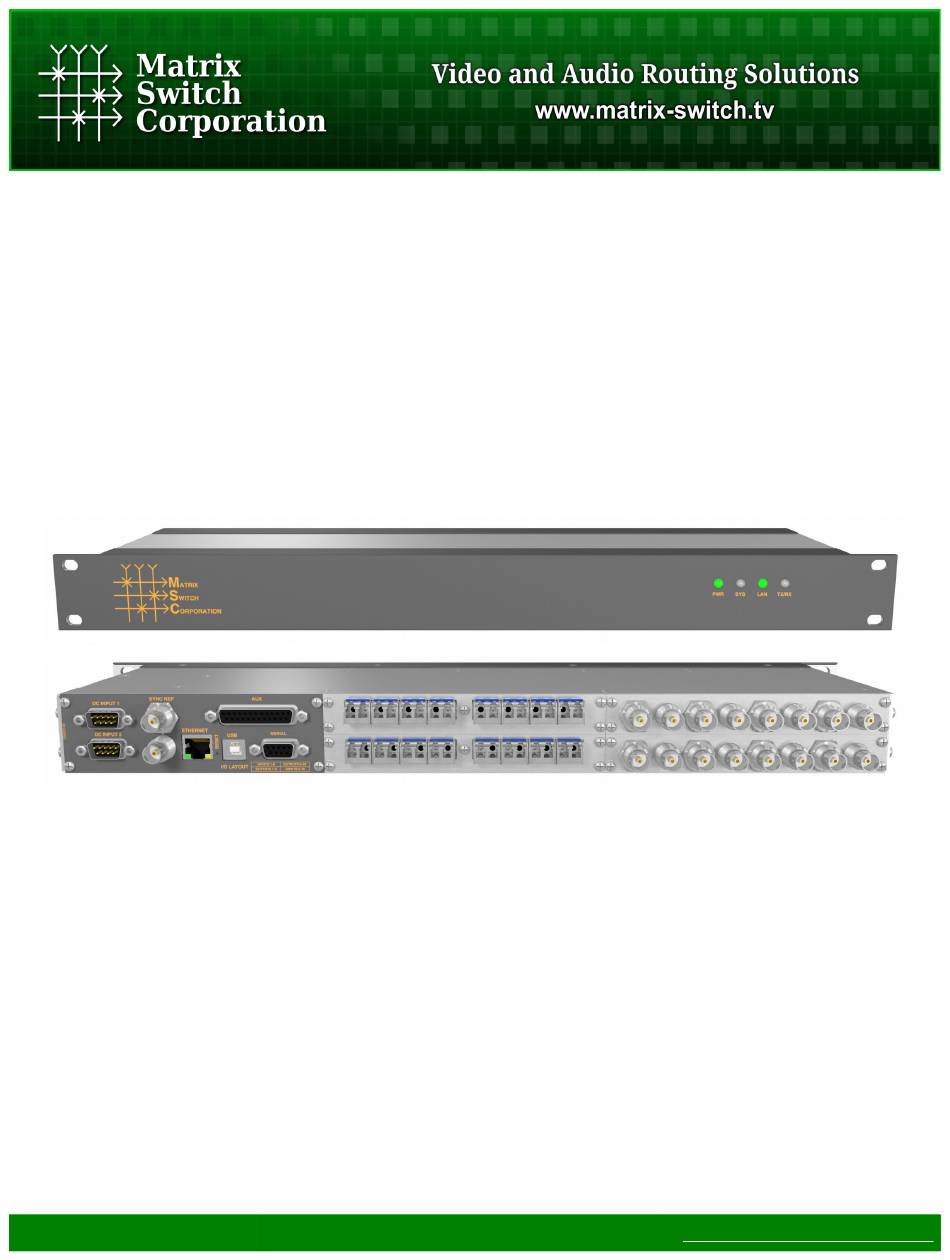

- Page 1 Matrix Switch Corporation MSC-XDM1000S Product Manual 1RU 16 input 16 output 3G-SDI Modular Video Router with Status Panel Revision 1.8 Page 1 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitchcorp.com...
- Page 2 ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Matrix Switch Corporation disclaims all liability arising from this information and its use. Use of Matrix Switch Corporation devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Matrix Switch Corporation from any and all damages, claims, suits, or expenses resulting from such use.
- Page 3 2013-11-29 MSC-4HDX6464 manual released. • Updated Mascot protocol information to version 2.3. • Added Vars Mascot command description. • Revision 1.0 Initial release of modular product manual. • 2013-04-15 Page 3 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 4: Table Of Contents
3.3 Serial Access..............................24 3.4 Command Format............................24 3.4.1 Command Names..........................25 3.5 Response Format............................25 3.6 Command Arguments..........................26 3.7 System Parameters.............................27 3.7.1 System Parameter Table........................28 3.8 Core Commands............................28 3.9 Configuration Commands..........................29 3.10 Miscellaneous Commands........................30 Page 4 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... - Page 5 3.11.36 RemoteSync Command........................48 3.11.37 S Command............................49 3.11.38 SerBaud Command.........................49 3.11.39 Set Command..........................50 3.11.40 SetA Command..........................51 3.11.41 SetS Command..........................51 3.11.42 SrcNames Command........................51 3.11.43 SysName Command........................52 3.11.44 SysType Command.........................52 3.11.45 Vars Command..........................53 Page 5 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com...
- Page 6 4.3.3 Linux..............................58 5 Troubleshooting..............................60 5.1 Unknown IP address...........................60 5.2 Unexpected reboots............................60 6 Reference................................61 6.1 Specifications.............................61 6.2 Serial Interface Pinout..........................61 6.3 GPIO Auxiliary Interface...........................62 6.4 Glossary..............................63 7 Matrix Switch Corporation Warranty......................64 Page 6 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 7: Getting Started
1.1 Device Connections The MSC-XDM1000S comes with a power supply adapter, a redundant power supply and a documentation CD. Additional cables and hardware are not usually provided. Power supply adapter – A 12 VDC 5 Amp power supply adapter is provided which is connected to the •... -
Page 8: Video I/O Boards
1.2 Video I/O Boards The MSC-XDM1000S modular router can be configured or expanded in the field for matrix sizes in increments of 8 inputs or outputs. Each input card adds 8 SDI video BNC or SFP module inputs, depending on the card (MSC-CARDRX-BNC8 as shown in Figure 1 or MSC-CARDRX-SFP8 in Figure 2 respectively). -
Page 9: Installing Video I/O Boards
4. Once the I/O board is properly connected and the mounting plate is flush against the back of the router, install the 4 mounting screws to hold it in place. 5. Repeat steps 3 and 4 for the remaining I/O boards. Page 9 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 10: Sfp Modules
MSC-XDM1000S Product Manual Figure 5: Video board installation example (MSC-XDM4000) 1.2.2 SFP Modules Matrix Switch Corporation offers several SFP modules for fiber optic and HDMI signaling (see Table 2) and many 3 party MSA compatible modules can be used as well. -
Page 11: Powering Up The Device
Routing matrix is initialized to Preset 0 state (defaults to source 1 connected to all destinations). • 1.4 Front Status Panel The MSC-XDM1000S has a status front panel with 3 LED indicators, described in the following table: Page 11 of 64 © 2013-2018 Matrix Switch Corporation... -
Page 12: Web
RS-232 serial and remote control panels. 1.5 Web Page Interface All Matrix Switch Corporation router and panel devices come with a built-in web page interface. This is the recommended interface for configuration and is also a convenient way to control the matrix routing of the device. -
Page 13: Matrix Routing
Ethernet network. Larger installations or integration with existing IP LAN networks require some network planning. NOTE: Matrix Switch Corporation can assist in planning and pre-configuring devices for specific application requirements at purchase time. Just ask a sales or customer service representative. - Page 14 MSC-XDM1000S Product Manual SECURITY WARNING: Matrix Switch Corporation devices are meant for installation in trusted LAN environments. In the event that remote device configuration or control is desired over public networks or the Internet, it is strongly recommended that some form of inter-network security is utilized, such as VPN. This is necessary to prevent undesired access to devices.
-
Page 15: Installation Example
The following diagram is of a simple installation example consisting of a 32x32 SDI Video Router, with a secondary level 32x32 Analog Audio router connected via the AFV DB-25 interface, a 32x32 Remote Button Panel, a 2RU LCD Remote Panel and a Computer system. Page 15 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 16: Web
2.1 Overview Figure 10: Routing Tab All Matrix Switch Corporation Router and Remote Panel systems include a built in web page that can be used with standards compliant Javascript enabled web browsers, including but not limited to Firefox, Chrome, Safari and recent versions of Internet Explorer. -
Page 17: Changing A Connection
No Change and Mute (the latter only if available for the given level). The No Change option indicates that the Destination for the given Level should not be changed from its current value, when the preset Page 17 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 18: Loading Work Matrix From A Source Target
Editing an existing Preset – Editing a Preset is done by loading it to the Work Matrix, making the • desired changes and saving it back to the same Preset. All this is accomplished without changing the Active Routing matrix state. 2.4 Labels Tab Page 18 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 19: Config Tab
Presets can also be assigned label names. Click the Save button to save changes that have been made. 2.5 Config Tab Page 19 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 20: System Settings
DHCP enable, the IP Address or the Netmask shall result in having to access the web page with the new settings. If there are Matrix Switch Corporation remote control panels which access the system which has Page 20 of 64 ©... -
Page 21: Button Panel Settings
0, the secondary level control is disabled. Can only be assigned a non-zero value if Level1 Override is also non-zero. If set to 3 for example, the secondary level would be level 3. Page 21 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 22: Command Tab
Clicking the Clear Output button will clear all command output in the lower area. See the section Mascot Control Protocol for more information. Page 22 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 23: Mascot Control Protocol
MASCOT (MAtrix Switch COrporation ProTocol) provides an ASCII text based command interface via several different transports to control and get status from Matrix Switch Corporation devices. This command protocol can be utilized for manual control or for integration with automation control systems. -
Page 24: Telnet Access
Carriage Return (ASCII 13), indicates the end of a command or chain of commands, Enter key. <BS> Backspace character (ASCII 11), can be used to backspace characters in interactive command shells. “ Used for double quoting string arguments. Used for single quoting string arguments. Page 24 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 25: Command Names
Devices have a limited backspace buffer size, if too many characters are reached backspaced and then more characters are appended, this error will occur. Buffer overflow Data exceeds maximum buffer length. Page 25 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 26: Command Arguments
Square brackets indicate an optional argument and parenthesis indicate a required argument. Any optional argument specified requires that all prior optional arguments are also specified. Table 8 lists currently used command argument types. Page 26 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 27: System Parameters
Set S [Parameter][Value] Set Stored value of a parameter only. Table 9: System Parameter Commands Parameter identifiers are represented as one or more alphanumeric words separated by periods, representing a Page 27 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 28: System Parameter Table
AS System name identifier. 3.8 Core Commands This section outlines commands considered to be core MASCOT protocol commands and consists of matrix routing, I/O label, preset, and other primary system commands. Page 28 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 29: Configuration Commands
External panel interface enable (if available). PanelOfs [Dest][Src][Lvl][Lvl] Button panel destination/source offsets and levels to control. PanelRate [Number] Remote panel refresh rate. SerBaud [Number] Query or assign serial baud rate. SysName [String] System name. Page 29 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 30: Miscellaneous Commands
DestNames Query all destination names. DestNames DEST Query destination names for all levels of a given destination. DestNames DEST, LEVEL Query the name of a specific destination and level. Page 30 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 31: Dhcp Command
IP assignment by MAC address or if there is a way to determine what IPs the Matrix Switch Corporation systems get assigned. Otherwise it may become difficult to determine what IP address to use when accessing the Web Page or other control interfaces. In the event that the IP address or... -
Page 32: E Command
Router's panel to control a different Router (set to 0.0.0.0 by default to disable remote control and control the Router device itself). This setting is saved and recalled on power up. Command Description FrameIP Query IP address of remote Router system to control. Page 32 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 33: Gateway Command
Display the Active value of a single parameter or a subset of parameters under a given parameter node. Examples of querying all parameters, “mtx” parameters, and “net.ip” parameter. >Get ctl.mascot.ver=2.3 ctl.serial.baud=115200 ctl.serial.log=0 ctl.serial.proto=mascot ctl.serial2.baud=115200 ctl.serial2.log=0 ctl.serial2.proto=mascot mtx.serial=1 Page 33 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 34: Gets Command
Routers requires that the IP address is known, valid and systems are configured to be on the same IP network. In the event that the IP address of a system is unknown refer to the Unknown IP Address section for this device. Command Description Page 34 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 35: Lockstatus Command
Query or assign matrix destination mappings. Destination mappings provide a means to remap logical destinations to different physical destinations for an added level of convenience when allocating and defining system I/Os. Page 35 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 36: Mapsrc Command
Assign a source mapping on all levels for Src1 to physical Src2. MapSrc Src1 Src2 Level Assign a source mapping on a single level for Src1 to physical Src2. Examples Page 36 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 37: Mascotver Command
The returned data is JSON formatted data (see www.json.org for details). If no arguments are specified then a simple format is returned consisting of an array of arrays (one per level) Page 37 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... - Page 38 Matrix status: OK, UPDATING, DISCONNECT or ERROR. Returned if the matrix is OK, updating (from a remote router for example), one or more remote routers disconnected or a general error (remote router in error status for example) respectively. Page 38 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com...
- Page 39 (No Change). Note that future protocol versions may support more than 10 presets and therefore may return information for more or less than 10 presets for the psetData and psetNames arrays. Page 39 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 40: Mtxgroup Command
IP network. In the event that the IP address or Netmask of a system is unknown, consult the Unknown IP Address section for this device. Command Description NetMask Query network mask value. NetMask NETMASK Set network mask value. Page 40 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 41: P Command
A given matrix crosspoint change will cause 2 destinations to be changed. Each odd destination/source is paired with the next highest even number Page 41 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 42: Panelcmd Command
Assign a panel button/GPIO command. Assigning a blank command to a button or GPIO pin will clear the command (two consecutive single or double quotes represents an empty string). Examples >PanelCmd Page 42 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 43: Panelcmden Command
NOTE: Condition statements are not currently fully defined and at the moment consists of only a matrix preset matching condition, which is specified as “Pn” where n is the preset number. For example P0 would cause the Page 43 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 44: Paneldis Command
Query or assign internal button interface panel disable setting. This setting is stored and recalled on power up. Command Description PanelDis Query internal panel disable setting. PanelDis 0 | 1 Assign internal panel disable setting (0: enable, 1: disable) Examples >PanelDis Page 44 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 45: Panelexten Command
Command Description PanelRate Query current panel refresh rate (in seconds). PanelRate RATE Set remote panel refresh rate in seconds. Examples >PanelRate >PanelRate 1 > Page 45 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 46: Pclr Command
Query or assign preset names. Preset names are stored and recalled on power up. Command Description PsetNames Query all preset names. PsetNames PRESET Query a single preset name. PsetNames PRESET, LABEL Assign a preset label. Page 46 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 47: Psub Command
The format of the returned output is “1:S1[,S2] 2:S1[,S2] ...” where the 1: and 2: are incrementing destination values, followed by one or more source values (depending on the number of system levels). Page 47 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 48: Reboot Command
The first command above queries the current reclocker disable value which returns 0 (the default, reclockers enabled). The second command disables the reclockers. 3.11.36 RemoteSync Command Routers only - Protocol Version: 2.1 Page 48 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 49: S Command
NOTE: Superseded by the ctl.serial.baud and ctl.serial2.baud System Paramete rs Query or assign the RS-232 serial port baud rate. The default value is 115200. This value is stored and recalled on power up. Page 49 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 50: Set Command
Examples of listing all writable parameters and setting the “net.ip” parameter. >Set ctl.serial.baud ctl.serial.log ctl.serial.proto ctl.serial2.baud ctl.serial2.log ctl.serial2.proto dbg.i2cAckFails dbg.i2cArbLosses dbg.i2cBusErrors dbg.i2cOverruns dbg.i2cTimeouts dbg.i2cResets mtx.sync net.dhcp net.gateway net.ip net.mac net.netmask pnl.cmdEn Page 50 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 51: Seta Command
Query source names for all levels of a given source. SrcNames SRC, LEVEL Query the name of a specific source and level. SrcNames SRC, LEVEL, LABEL Assign a label to a source. Page 51 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 52: Sysname Command
Protocol Version: 2.3 NOTE: Superseded by the sys.arch System Paramete r Query the system series type, which is currently defined as one of the following values: Value Series name Carina Lupus Page 52 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 53: Vars Command
NOTE: This command was not added until version 2.3 of the Mascot protocol. On previous versions, this command is available on the MSC-GCP2U32 LCD panel but not other Matrix Switch Corporation systems. When determining the system type, if executing the command returns an Invalid Command error, the system series can be assumed to be Carina. -
Page 54: W Command
3.11.48 X Command Routers and MSC-GCP2U32 only Query or make changes to the matrix routing state. This command comes in several variations described by the following table. Command Description Page 54 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... - Page 55 > The above would connect source 4 to destination 1, source 3 to destination 2, source 2 to destination 3 and source 1 to destination 4 for all levels. Page 55 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 56: Software Updates
4.1 Software Update on Pyxis Series Devices Once a valid software update image is obtained from Matrix Switch Corporation for the applicable hardware series, the following procedure can be used to perform a software update. -
Page 57: Tftp Software
5. Make sure to replace 192.168.2.59 with the device's IP address if the update procedure being used utilizes the device’s assigned IP and replace MSC-Pyxis-Firmware-x.x.x.img with the correct version number of the file. Page 57 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 58: Mac Os X
2. Open a Terminal command line application (CTRL-ALT-T will do this on many desktop environments). 3. Use 'cd' commands to change to the directory where the firmware file is located, for example (if the Page 58 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... - Page 59 8. The TFTP program will indicate if the transfer was successful or not. 9. If the transfer failed (timed out, etc), retry the put command or quit the application (type 'quit' and ENTER) and start over from step 4. Page 59 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com...
-
Page 60: Troubleshooting
If the device is rebooting unexpectedly (detectable on routers when the routing state gets reset to preset 0), make sure the correct power supply is being used with the device (12 VDC 5 Amp). Page 60 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 61: Reference
An RS-232 serial port is provided for system control. This interface uses serial signals with 8 data bits, No Parity, and 1 Stop Bit (8N1). The standard DE-9 pin configuration is used for a DCE device for the RX, TX and Page 61 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 62: Gpio Auxiliary Interface
Pin # Name Pin # Name Pin # Name GP10 GP19 GP11 GP20 GP12 GP21 GP13 GP22 GP14 GP23 GP15 GP24 GP16 Ground GP17 GP18 Page 62 of 64 © 2013-2018 Matrix Switch Corporation www.matrixswitch corp.com... -
Page 63: Glossary
Network router, which is referred to as a Network Switch in this manual). Simple Panel – A Matrix Switch Corporation Remote Panel which has buttons only. • Smart Panel – A Matrix Switch Corporation Remote Panel which comes equipped with an LCD screen • interface. -
Page 64: Matrix Switch Corporation Warranty
MSC-XDM1000S Product Manual 7 Matrix Switch Corporation Warranty MSC provides the following limited warranty with its products: 1. MSC warrants that the equipment it manufactures is free from defects in material and workmanship. 2. This warranty begins on the day the product is shipped from MSC and shall be in effect for two years.
