Summary of Contents for Atheros AR5BMB55

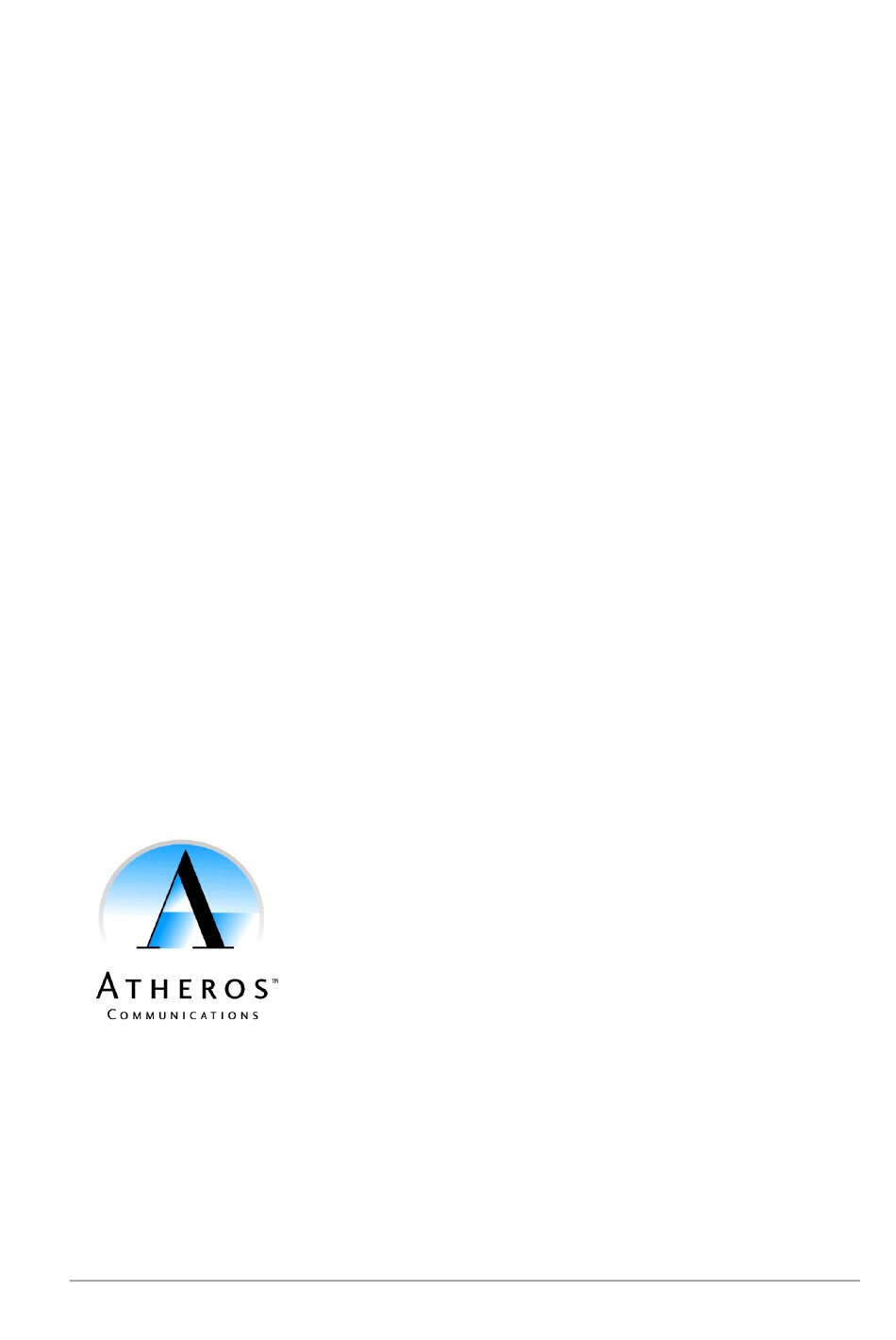

- Page 1 Model AR5BMB55 802.11 b/g MPCI Module July 2006...
- Page 2 Atheros reserves the right to make changes, at any time, in order to improve reliability, function or design and to attempt to supply the best product possible. Atheros does not represent that products described herein are free from patent infringement or from any other third party right.
- Page 3 Example: Start > Programs > DK > wdreg_install. Notices NOTE: This message denotes neutral or positive information that calls out important points to the text. A note provides information that may apply only in special cases. Atheros Communications, Inc. • COMPANY CONFIDENTIAL February 2008...
- Page 4 Revision History Revision Description of Changes July 2006 Initial Release • Atheros Communications, Inc. Feb 2006 COMPANY CONFIDENTIAL...
-
Page 5: Table Of Contents
Overwriting an Existing Static WEP Key............16 Disabling Static WEP..................16 Using WPA Passphrase Security............... 17 Zero Configuration..................... 17 Wireless Network Configuration ..............17 Check the Status Information or Diagnostics ........... 18 Atheros Communications, Inc. • COMPANY CONFIDENTIAL February 2008... - Page 6 Additional Security Features ................26 Message Integrity Check (MIC) .................26 Advanced Status Information ................27 Compliance......................28 Industry Canada Notice: ..................Avis de Conformité à la Réglementation d’Industrie Canada:......European Community — CE Notice: ..............• Atheros Communications, Inc. Feb 2006 COMPANY CONFIDENTIAL...
-
Page 7: Introduction
Introduction The Atheros 802.11b/g Adapter supports 802.11bg operation. The card uses the Atheros Client Utility (ACU) which is a user-mode utility designed to edit and add profiles for selected Atheros network interface adapters. System Requirements Laptop/ PC containing: 32-bit PCI Express Bus... -
Page 8: Remove A Configuration Profile
Remove a Configuration Profile Go to the Profile Management tab. Select the profile to remove from the list of configuration profiles. Click the Remove button. Auto Profile Selection Management Including a profile in the auto selection feature allows the wireless adapter to automatically select that profile from the list of profiles and use it to connect to the network. -
Page 9: Switching To A Different Configuration Profile
DNS server information is also required. IP configuration information (DHCP to assign the IP address, gateway and DNS server IP addresses) is usually obtained from the corporate IT staff. 5. Click to finish. Atheros Communications, Inc. • COMPANY CONFIDENTIAL February 2008... -
Page 10: General Tab
General Tab In the Atheros Client Utility, access the General tab by clicking Modify on the Profile Management tab. Edit the fields in the General tab to configure the configuration profile. Make sure to also edit the Security and Advanced tabs. -
Page 11: Security Tab
Security Tab In the Atheros Client Utility, access the Security tab by clicking Modify on the Profile Management tab. Click the Security tab in the Profile Management window. Edit the fields in the Security tab of Profile Management to configure the profile. To define the security mode, select the radio button of the desired security mode. -
Page 12: Using Eap-Tls Security
3. Click OK. 4. Activate the profile. Using EAP-TTLS Security To use EAP security In the Atheros Client Utility, access the Security tab in the Profile Management window. 1. On the Security tab, choose the WPA/WPA2 radio button. OR: On the Security tab, choose the 802.1x radio button. -
Page 13: Using Peap (Eap-Gtc) Security
Using PEAP (EAP-GTC) Security To use PEAP (EAP-GTC) security In the Atheros Client Utility, access the Security tab in the Profile Management window. 1. On the Security tab, choose the WPA radio button. OR: On the Security tab, choose the 802.1x radio button. -
Page 14: Using Peap-Mschap V2 Security
Using PEAP-MSCHAP V2 Security To use PEAP-MSCHAP V2 security In the Atheros Client Utility, access the Security tab in the Profile Management window. 1. On the Security tab, choose the WPA radio button. OR: On the Security tab, choose the 802.1x radio button. -
Page 15: Using Leap Security
Using LEAP Security To use security In the Atheros Client Utility, access the Security tab in the Profile Management window. LEAP security requires that all infrastructure devices (e.g. access points and servers) are configured for LEAP authentication. Check with the IT manager. -
Page 16: Pre-Shared Encryption Keys
Pre-Shared Encryption Keys Defining pre-shared encryption keys: 1. Click the Pre-Shared Key (Static WEP) radio button on the Security tab. 2. Click the Configure button. 3. Fill in the fields in the Define Pre-Shared Keys dialog box: Key Entry Determines the entry method for an encryption key: hexadecimal (0-9, A-F), or ASCII text (all keyboard characters except spaces). -
Page 17: Using Wpa Passphrase Security
Using WPA Passphrase Security To use WPA Passphrase security In the Atheros Client Utility, access the Security tab in the Profile Management window. 1. On the Security tab, choose the WPA Passphrase radio button. 2. Click on the Configure button. -
Page 18: Check The Status Information Or Diagnostics
Zero Configuration. When this check box is cleared, all profile settings are controlled by the configuration profile, which is set up from the ACU Profile Management tab. Check the Status Information or Diagnostics The Atheros client utility includes a number of tools to display current diagnostics and status information. Check current status... -
Page 19: Adapter Information Button
NDIS driver. The Advanced Statistics button to shows statistics for diagnostics for frames received by or transmitted to the wireless network adapter: Atheros Communications, Inc. • COMPANY CONFIDENTIAL February 2008... -
Page 20: Transmitted Frames
Transmitted Frames Received Frames Frames transmitted Frames received OK Beacons Frames retried Frames with errors Frames dropped CRC errors No ACK frames Encryption errors ACK frames Duplicate frames RTS frames AP mismatches Clear-to-send (CTS) Data rate mismatches frames Authentication time-out No CTS frames Authentication rejects: the number of AP authentication Retried RTS frames... - Page 21 Ad Hoc Connected Ad Network Hoc Network Encryption Active Atheros Communications, Inc. • COMPANY CONFIDENTIAL February 2008...
-
Page 22: Display Settings
Cumulative displays statistical data collected since opening the profile. ACU Tools Use the Action menu to access the Atheros Client Utility tools: Enable/Disable Radio Enable or disable the RF Signal on all Atheros station reference designs. Enable/Disable Tray Enable or disable the tray icon. -
Page 23: Tray Icon
IP address. Right-click on the tray icon to: Help Open the online help. Open Atheros Client Launch the Atheros Client Utility (ACU). Use the ACU to Utility configure a profile or view status and statistics information. Troubleshooting Run the Troubleshooting Utility. -
Page 24: Color
The colors are defined as follows: Color Quality RSSI* Green Excellent 20 dB + Green Good 10-20 dB + Yellow Poor 5-10 dB Poor < 5 dB Gray No Connection No Connection *Received signal strength indication RSSI. Displayed in dB or percentage. Enable or disable the tray icon in the Action menu. -
Page 25: Infrastructure (Access Point) Mode
Advanced tab. For access point mode, modify the settings: Power Save Mode 802.11b Preamble (if using 802.11b) Wireless Mode 802.11 Authentication Mode Make sure to also edit the General and Security tabs. Atheros Communications, Inc. • COMPANY CONFIDENTIAL February 2008... -
Page 26: Uninstall An Old Driver
Go to the Start menu and choose Search > For Files or Folders. b. Enter oem*.inf in the Search for files or folders named: field, and enter Atheros in the Containing text: field. -
Page 27: Advanced Status Information
Click the Advanced button on the Current Status tab of the Atheros Client Utility to see advanced information about the program and its operations. The Current Status tab does not require any configuration. The following table describes the items found on the Advanced Status screen. -
Page 28: Compliance
Regulatory Compliance Notices USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 29 This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: PPD-AR5BMB55”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this...
- Page 30 To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than required for successful communication. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
- Page 31 天 天 天 天 線 線 線 線 種 種 種 種 Dipole antenna with IPEX connector 類 類 類 類 : (Antenna gain : 2dBi) Atheros Communications, Incorporated 5480 Great America Parkway Santa Clara, CA 95054 t: 408/773-5200 f: 408/773-9940 www.atheros.com Atheros Communications, Inc.
