Ecolink WST-100 Manual

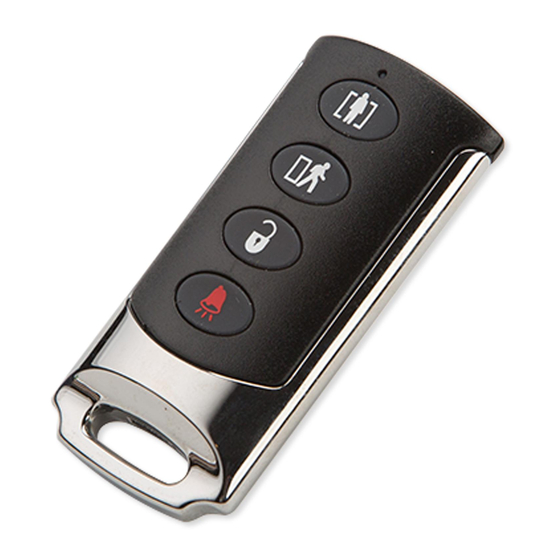

WST-100 Four Button Wireless Remote
Specifications
Frequency: 433.92MHz
Battery: 3V lithium CR2032
Battery life: 5 years
Enrolling
Each product has a 6 digit unique serial number printed on the back. This is required to assign your remote to
the security system. Follow the control panel or wireless receiver installation manual instructions for adding a
wireless key.
Operation
Stay Arming
Press this button to arm your system while
you are still at home. All the doors and
window will be armed but the motion
detectors will remain in standby mode.
Away Arming
Press this button to arm your system when
no one will be home. All the sensors in the
system will be in the armed mode.
Other button functions are available. Please consult your DSC panel or wireless receiver manual for
instructions on changing the button operation.
Panic Button Delay
To remove the 3 second delay on the panic key:
1. Press and hold all 4 buttons simultaneously until the LED starts to flash.
2. Press the Away button to disable the 3s delay on the panic button.
3. To re-enable the 3s delay, follow step 1 and press the Stay button instead of Away.
Replacing the Battery
When the battery is low a signal will be send to the control panel, or when a button is pressed the LED will
appear dim or will not turn on at all. Follow these simple steps to replace the battery
1. With a key or small screwdriver, push up on the black tab located at the bottom of the remote (fig.1)
and slide the chrome trim off.
2. Carefully separate the front and back piece of plastic to reveal the battery
3. Replace with a CR2032 battery ensuring the + side of the battery faces up (fig.2)
4. Re-assemble the plastics and ensure they click together
5. Ensure the notch in the chrome trim is aligned with the back of the plastic. It will only go on one way.
(fig.3)
Figure 1
Operating Temperature: 32°-120°F (0°-49°C)
Operating Humidity: 5-95% RH non condensing
Compatible with all DSC 433MHz receivers
Disarm
Press this button to disarm your system. You do
not have to enter your access code when you
use this key to disarm the system.
Panic
Press and hold this button to activate the panic
mode of your security system. Depending on
how the panel is programmed this will send a
notification to your monitoring station and/or
activate the alarm siren
Figure 2
.
Figure 3
