Sprite DV555 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV555 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sprite DV555

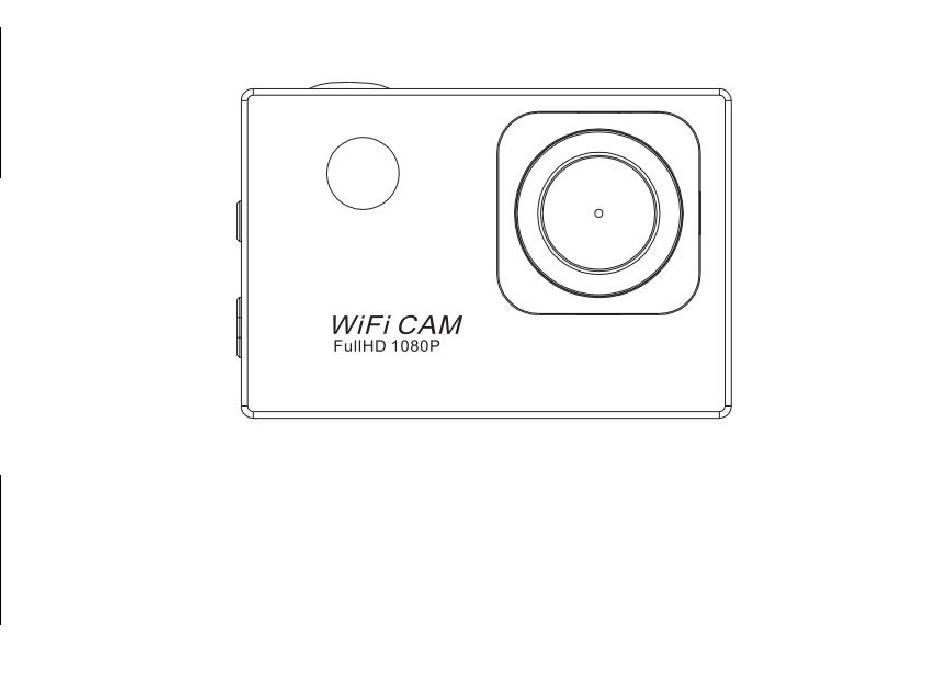

  • Page 1 User Manual...
  • Page 2 Function Function Thank you for choosing this camera. Please carefully read the manual before using, and keep it at a safe place for future reference. The compilation of the user manual refers to the latest information. The manual quotes captured screen displays and graphics, with the aim to introduce the digital camera through detailed and direct methods.

  • Page 3: Camera Maintenance

    place near speaker or receiver of TV; ● Don’t use or keep the memory card in environment with over high or low temperature; ● Keep the memory card clean and away from contacting liquid. In case of contacting liquid, please dry it with soft cloth;...

  • Page 4: System Requirements

    System requirements System requirements When operating or using the digital camera, please take minimum system requirements for the computer of the camera into consideration. You are strongly recommended to use better computer equipment for operating the camera to achieve the optimized effect. The minimum system requirements are as below: System Requirements PCCAM Microsoft Window XP(SP3), Vista, 7，8...
  • Page 5 Appearance Appearance 1. Busy indicator light(blue); 2. Shutter key； 3. Audio Alert; 4. Charge indicator light(red); 5. MicroSD Card Slot; 6. Micro-USB Port; 7. Micro HDMI Port; 8. Infrared remote light 9. Len;...
  • Page 6 1. LCD; 2. Up key； 3. Mode key; 4. Down key; 5. Power/menu key;...
  • Page 7 Removing battery from camera Removing battery from camera 1.remove the battery door by placing your thumb 2.Allow the door to pop out. Grasp the battery pull-tab and remove from the camera...

  • Page 8: Start To Use

    Start Start 1.Charge the built-in lithium battery The camera is equipped with built-in 3.7V lithium battery. Please ensure power available for the camera and timely charge it in case of low battery. Connect the camera to computer for charging under shutdown status. The charging indicator will be on when charging, and will be off when the battery is fully charged.
  • Page 9 2. How to use the memory card 2.1. Properly insert the TF card into the card holder as per the instructions indicated near the card holder. 2.2. To remove the TF card, press the end of memory card gently, the card will be ejected. Note: The camera is not equipped with built-in memory.
  • Page 10 3.3 Auto shutdown: the camera will be shut down automatically when the camera is under idle mode for a certain time to save power. The default time for auto shutdown is 3 min. 3.4 Shutdown under low power: when the battery is under low power, the LCD will indicate “ ”.
  • Page 11 6. Photo/recording/vehicle-mounted /mode It enters automatically into recording mode. Press Shutter to start recording, and press Shutter again to stop recording. Press Mode key to vehicle-mounted mode. Press Shutter to start recording, and press Shutter again to stop recording. Press Mode key to photo mode. 6.1 Screen display in photo mode 1.
  • Page 12 6.2 Screen display in recording mode 1. Recording mode; 2. Video quality; 3. Video framerate 4. Video resolution； 5. Available time to record； 6. Battery state; Note: 1. When using the HD size or FHD video, you must use the TF high-speed card at class 4 or above .
  • Page 13 6.3 Screen display in vehicle-mounted mode 1. In vehicle-mounted mode; 2.Video quality; 3. Video framerate 4. Video resolution； 5. Available time to record； 6. Battery state; Note: Press the shutter button once under the preview state to begin recording, save a segment for recording every 3 minutes, then start to record the next segment of video.

  • Page 14: Playback Mode

    7. Playback mode Turn on the camera,you can press the mode key to enter playback mode.and you can press the Up/Down key to choose CAR/VIDEO/JPG,then press the shutter key to enter preview. Press Mode key to enter playback mode to browse photo/video, play the video recorded by this camera. Press Up/Down key to access to previous or next photo/video.
  • Page 15 8. Menu Setting Mode 8.1 Menu display In photo, recording, vehicle-mounted and playback mode, press Power key to open the menu, and then press Up/Down key to select menu, press the Shutter key to enter submenu. When selecting menu, the selected menu will be displayed with blue background.
  • Page 16 Photo menu mode： 8.2 System mode menu setting After opening the menu by pressing Power key, press mode key to switch over to setting main menu, press Up/Down key to select menu, and after that to press Shutter key for confirming to enter the submenu. In the submenu, press Up or Down key to select menu, and press Shutter to confirm.
  • Page 17 System menu mode： 8.3 Setting date and time Press Power key to open the menu, press Mode key to switch to setting menu, and then press Shutter key to confirm. Press Down key to select “Date and time” in menu item, and then press Shutter key to enter setting window.
  • Page 18 Power key to cancel setting and exit. Finally, press Power key to exit from setting mode. 8.4 Playback mode menu setting In playback mode press power key to open playback main menu, press Up or Down key to select menu, press Shutter key to enter submenu.

  • Page 19: Playback Mode Menu

    Playback mode menu 9. Connecting to HDTV 5.1 Connect the DV to HDTV via HDMI cable (optional) If you need to transfer the image and audio to an HDTV for playback, insert the Com end of the HDMI cable to the DV, and the other end (output) to the HD input of the HDTV, as shown in the following figure:...
  • Page 20 When the camera is connected with the HDTV successfully,the camera display is synchronize with HDTV display. Note:Before connecting or removing the HDMI cable, please stop video recording and disconnect Wi-Fi first.
  • Page 21 10. Connect to PC 10.1 When the camera is connected with the computer and entering removable disk mode, there will be a removable disk added in the window of “My computer”. The photo or video file may be stored in the catalogue of “DCIM\CAR,JPG,VIDEO”...

  • Page 22: Android App

    11. APP (Support Android and ISO) 1. How to install an APP 1.1 Search for “Ismart DV” in Google Play (for Android OS) to find the APP and install it according to the instruction. 1.2 Search for “Ismart DV” in APP Store (for iOS) to find the APP and install it according to the instruction. 2.
  • Page 23 2.2 Insert the TF card and turn on the DV,The LCD show WIFI icon .When you want to turn on the wifi,you can press the shutter key about 3seconds,the LCD Screen display:Waiting for WiFi connection..and the Busy indicator will flash.the LCD show WIFI icon 2.3 Enable Wi-Fi on smartphone or tablet and search for wireless AP signal “DV555SA”, then connect it to DV, until the system displays “Connected successfully”.After it Connects successfully,the LCD Screen will turn off after about 15 seconds,and the wifi indicator will not flash.when you press shutter key to turn on the LCD...
  • Page 24 Note: The first time connecting to DV，you need to enter password “1234567890”.
  • Page 25 2.4 Click the icon in the App list of the smartphone or tablet to open it. Now you can preview the image...
  • Page 26 sent by the DV on the phone or tablet and start some operating. The operation interface on terminal is shown in the following figure. 1. Video resolution 2. White balance 3. Setup (enter setup menu) 4. Enter Playback mode 5. Shutter button 6.
  • Page 27 3. iOS APP 3.1 Install “Ismart DV” APP (provided by dealer or via internet) on iOS phone or tablet. When installation completes, the LCD will display icon 3.3 Enable Wi-Fi on iOS phone or tablet and search for wireless AP signal “DV555SA”, then connect it to DV, until the system displays “Connected successfully”.
  • Page 28 1. DV battery icon 2. Video resolution 3. White balance 4. Setup (enter setup menu) 5. Enter Playback mode 6. Shutter button 7. Photo mode 8. Video mode Note: A TF card must be inserted if you need to take a photo, record a video, or download files on the terminal;...
  • Page 29 Technical parameters Technical parameters Image sensor 5.0 mega-pixel CMOS image sensor Function mode Recording, Driving recorder,photo, playback LCD screen 2.0'' LCD Screen Picture resolution 12M (4000 x 3000), 10M (3648×2736), 8M (3264 x 2448), 5M (2560 x 1920), FHD (1920x1080 30fps)，HD (1280x720 30fps)，HD（1280x720 60fps） Video resolution Storage medium TF card (Maximum supporting 32GB)
  • Page 30 Power Save 1 min. / 3 min./5 min./ OFF Operating system Windows XP/Vista/7/8, Mac 10.8 requirements Dimensions 61x41x30mm Note: The product design specification is made based on updated information when compiling this product manual. The specification is subject to change without further notice. The product is subject to the actual camera.

  • Page 31: Fcc Compliance

    FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 32 may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●...
