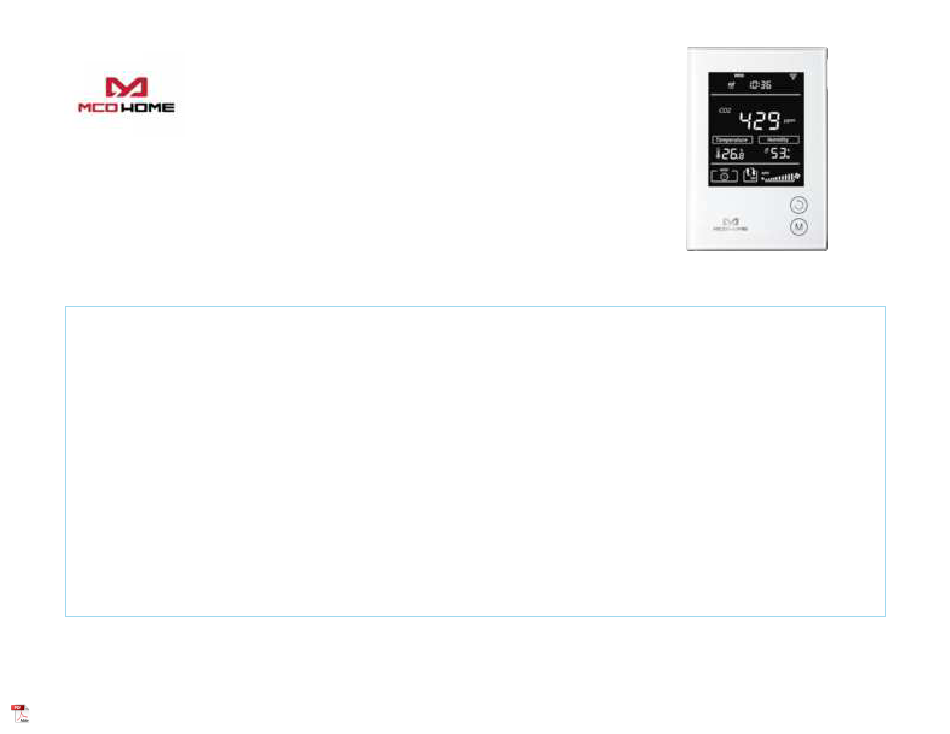

MCO Home
Z-Wave CO2 Monitor 12V
SKU: MCOEMH9-CO2
Quickstart
This is a Measuring Sensor Device for Europe. To run this device please connect it to your mains power supply.

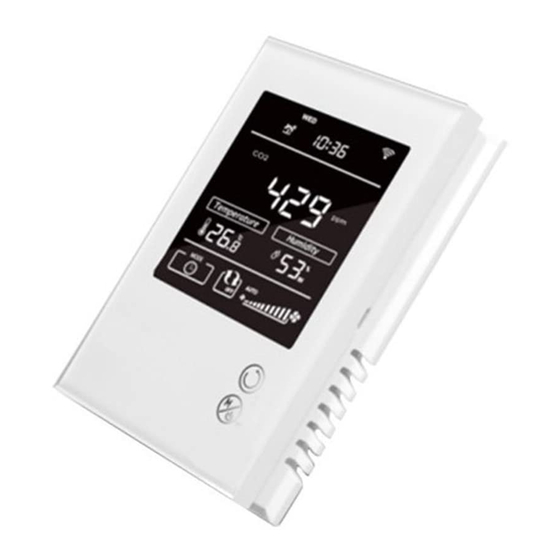

MCOHome CO2 Monitor is an air quality detector which is compatible with Z-Wave technology, it is mainly used to monitor CO2 concentration.
To protect yourself and others from danger and to protect the device from damage, please read the safety information before using it.
You can find further information in the device manual.
Step 1: Separate Panel and Bottom case by removing the screw at the bottom of device. Insert all wires into the right terminals and tighten
screws. The wiring diagram is shown below.
Pay attention to the current direction of positive and negative, otherwise device will easily be burn!
Step 2: Mount the Bottom case onto wall with two screws (M4*25mm).The hole pitch 60mm is for 86/60mm box, and 82mm is for American 120mm
box.
Step 3: Mount the Panel back by aligning its tabs and card slot onto the Bottom case.
Step 4: Tighten the fastening screw and the device is ready for normal work.
manual.zwave.eu/backend/make.php?lang=en&sku=MCOEMH9-CO2
1/10
Advertisement
Table of Contents
Summary of Contents for MCO Home MCOEMH9-CO2
- Page 1 MCO Home Z-Wave CO2 Monitor 12V SKU: MCOEMH9-CO2 Quickstart This is a Measuring Sensor Device for Europe. To run this device please connect it to your mains power supply. MCOHome CO2 Monitor is an air quality detector which is compatible with Z-Wave technology, it is mainly used to monitor CO2 concentration.
-
Page 2: Important Safety Information
23-10-2020 manual.zwave.eu/backend/make.php?lang=en&sku=MCOEMH9-CO2 Important safety information Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this equipment only for its intended purpose. - Page 3 23-10-2020 manual.zwave.eu/backend/make.php?lang=en&sku=MCOEMH9-CO2 1. Device must be wall-mounted vertically. Do not lay it flat or upside down while working. 2. Do not mounted it in a wind gap, or cover its bottom, which may affect the detected data. Step 1: Separate Panel and Bottom case by removing the screw at the bottom of device. Insert all wires into the right terminals and tighten screws.
- Page 4 23-10-2020 manual.zwave.eu/backend/make.php?lang=en&sku=MCOEMH9-CO2 Inclusion/Exclusion On factory default the device does not belong to any Z-Wave network. The device needs to be added to an existing wireless network to communicate with the devices of this network. This process is called Inclusion. Devices can also be removed from a network. This process is called Exclusion. Both processes are initiated by the primary controller of the Z-Wave network. This controller is turned into exclusion respective inclusion mode.
-
Page 5: Product Usage
23-10-2020 manual.zwave.eu/backend/make.php?lang=en&sku=MCOEMH9-CO2 Exclusion Including and Excluding of Z-Wave network Activate Inclusion/Exclusion mode in the gateway. When device is powered on, long press K2 can enter interface for inclusion or exclusion of Z-Wave network. If device has not been included into any Z-Wave network before, - - - will display on the screen. Then press K2 once, - - - flashing and device enters into learning mode to get a node ID. - Page 6 23-10-2020 manual.zwave.eu/backend/make.php?lang=en&sku=MCOEMH9-CO2 Long press K2 3Sec to check the Node ID Long press K1 3Sec to modify the local time Local Time Setting In normal display interface, long press K1 will enter the local time modification interface. Week - starts flashing, press K2 can switch among MON-TUE-WED-THU-FRI-SAT-SUN. Choose one then press K1 will save the setting.
-
Page 7: Quick Troubleshooting
23-10-2020 manual.zwave.eu/backend/make.php?lang=en&sku=MCOEMH9-CO2 You can find further information in the device manual. Specification Power Supply: DC12V CO2 display range: 0-2000ppm Default threshold: 1000ppm (adjustable) Temperature range: -9.0~50 °C Humidity range: 0%-99%RH Installation: Wall-mounted (Vertical) Work environment: -10~+8°C 0-90%RH(Non-condensation) Dimension: 90* 130*28mm... -
Page 8: Configuration Parameters
23-10-2020 manual.zwave.eu/backend/make.php?lang=en&sku=MCOEMH9-CO2 Configuration Parameters Z-Wave products are supposed to work out of the box after inclusion, however certain configuration can adapt the function better to user needs or unlock further enhanced features. IMPORTANT: Controllers may only allow configuring signed values. In order to set values in the range 128 ... 255 the value sent in the application shall be the desired value minus 256. -
Page 9: Supported Command Classes
23-10-2020 manual.zwave.eu/backend/make.php?lang=en&sku=MCOEMH9-CO2 Dimensions 0.0900000x0.1300000x0.0280000 mm Weight 300 gr 6928954202209 IP Class IP 21 Voltage 12 V Device Type Routing Multilevel Sensor Generic Device Class Multilevel Sensor Specific Device Class Routing Multilevel Sensor Firmware Version 01.02 Z-Wave Version 03.43 Z-Wave Product Id 015f.0905.0201... -
Page 10: Explanation Of Z-Wave Specific Terms
23-10-2020 manual.zwave.eu/backend/make.php?lang=en&sku=MCOEMH9-CO2 Explanation of Z-Wave specific terms Controller — is a Z-Wave device with capabilities to manage the network. Controllers are typically Gateways,Remote Controls or battery operated wall controllers. Slave — is a Z-Wave device without capabilities to manage the network. Slaves can be sensors, actuators and even remote controls.
