SEE WATER, INC.
Oil Smart® Plug & Play: 120VAC

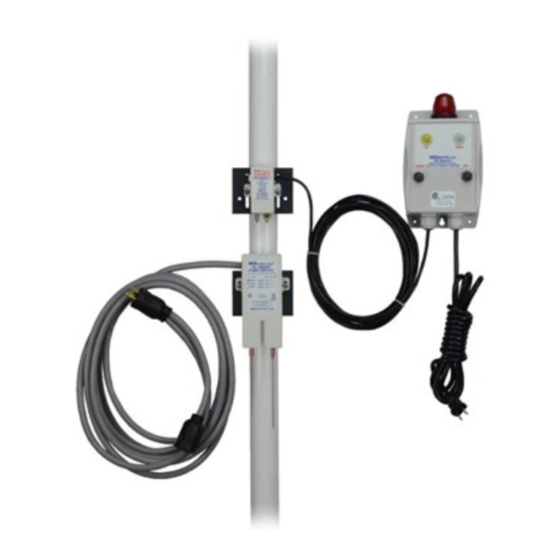

The Oil Smart® OSS-100 System incorporates pump controls and alarm
sensors that differentiate between oil and water, allowing companies to
responsibly discharge the water without the risk of pumping oil. Installation of
the OSS-100 keeps companies in compliance with Elevator Code
ASME A17.1 and State/Federal regulations while reducing the risk of adverse
publicity, fines, and expensive cleanup cost.
Model
OSS-100
Oil Smart® Pump Switch Mounting: NEMA 6P; IP67
Mounting - Mount Oil Smart® Pump Control Sensor with provided
mounting hardware to the pump's PVC discharge pipe. The 'OFF' sensor of
the Oil Smart® Switch shall be positioned at least 3" above the impeller of
the pump.
Oil Smart® Alarm Mounting: NEMA 3R
Mounting - Mount Oil Smart® Alarm panel (OSA-05) to near by wall with
provided

Remote Monitoring Dry Contacts:

1. Normally Open dry contacts for high oil, high water, and
general high liquid alarm.
FLA Range
(0.0-16.0 FLA)
Page 1-3
Oil Smart® Pump Switch & Alarm
Installation and Operation manual
OSS-100
Your Trusted Source for Quality Control Panels.
www.seewaterinc.com
951.487.8073 • 888.733.9283 • info@seewaterinc.com
22220 Opportunity Way, Suite 101 • Riverside, CA 92518
®
IM 806 REV. 2/19
