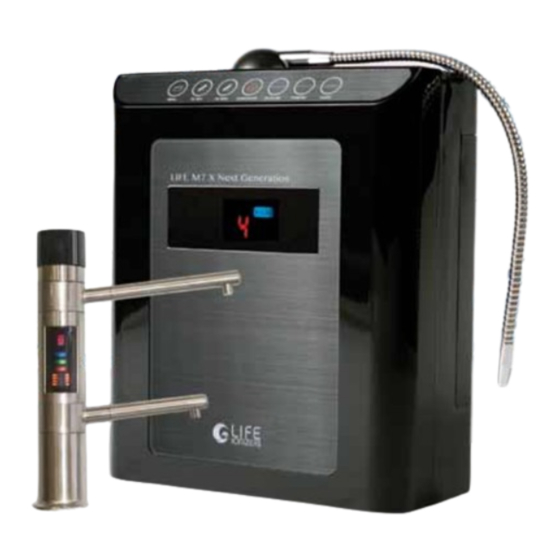

LIFE Ionizer M7 X NG User Manual
  1. Manuals
  2. Brands
  3. LIFE Ionizer Manuals
  4. Air Ionizer
  5. M7 X NG
  6. User manual

LIFE Ionizer M7 X NG User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LifeIonizers.com/support
LIFE | M7 X/M7 X UC NG
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M7 X NG and is the answer not in the manual?

Questions and answers

Summary of Contents for LIFE Ionizer M7 X NG

  • Page 1 LifeIonizers.com/support LIFE | M7 X/M7 X UC NG...
  • Page 2 What do I need to know? • Please read all safety warnings before the installation or operation of your LIFE Ionizer to ensure proper product usage. • To receive warranty service, you must register your warranty online. Please see enclosed warranty card for detailed instructions.

  • Page 3: Table Of Contents

    Quick Connect Fittings and Tubing Display Overview Function Options M7 X NG Operation Method (counter top) M7 X NG UC Operation Method (under counter) Internal Filter Replacement Filter Reset Instructions (counter top) Filter Reset Instructions (under counter) Citric Acid (Scaling) Cleaning Filter...

  • Page 4: Safety Guide

    Safety Guide Power Plug As with most electrical appliances, electrical parts in this ionizer are electrically live even when the switch is off. • Power cord should not be touched with wet hands • Use only (110v) in the USA, Mexico and Japan. Most other countries require (220v).
  • Page 5 Ionizer • Place machine in an upright position only • Do not install this unit in direct sunlight or near a heater, fireplace or other heat source • Do not place the machine in humid areas such as bathrooms • If wall mounted, secure firmly and correctly • Do not use water with a temperature of over 95 degrees Fahrenheit or 35 degrees Celsius • This machine should not be repaired or otherwise...
  • Page 6 Ionized water • If inexperienced with drinking Ionized Alkaline Water, users are encouraged to start with level 1 • When drinking Ionized Alkaline Water - Do not take prescription or other medications for approximately one hour before and after drinking water. Ionized alkaline water hydrates more efficiently, therefore will deliver more medication than tap water.

  • Page 7: Product Specifications

    Product Specifications Special features Fully convertible: counter-top to under counter Cleaning function Advanced RADC Cleaning System Display Full Color LED Display w/Automatic Voice Prompting Filtration Dual Internal, Custom Pre-filter Flow Control Automatic Power in watts Adjusts up to 450 watts ORP Output up to -700 (Enhanced ORP at drinkable levels)

  • Page 8: Package Contents

    Package Contents Flexible Hose Diverter Valve LifeIonizers.com/support LIFE | M7 X/M7 X UC NG 1/4” Tubing Hose User Manual Extra Fuse Located in the Power Suction Cup Switch at the bottom of the machine Reagent Drops pH Color (pH Test Drops) Chart BTB Chemical For M7 X UC NG...
  • Page 9 How to measure the pH of your water A pH color chart and a bottle of Reagent Drops are included with your ionizer in case you would like to test the water from your new ionizer. PH Tester Kit Instructions: Alkaline Water 1.

  • Page 10: Important To Remember

    Important to Remember Pre-filter Installation & Maintenance • You must run 2-3 gallons of water through the pre-filters before you connect them to the ionizer. To do this, install the pre-filters into their housings, connect a piece of tubing to the outlet con- nection on the pre-filter housing and run it into the sink so you can flush them out with water.
  • Page 11 Settings • Flow rate must be set before adjusting or running your ionizer. • Set flow rate no higher than 2.5 liters per minute. Anything higher could cause internal damage. • When adjusting the settings, the buttons must be pressed quickly as failure to do so will result in booting you out of the program menu.

  • Page 12: Parts Of The Ionizer

    Parts of the Ionizer BaCk 1. First Filter Cover 2. Wall Mount Screw Holes 3. Speaker 4. Bar Code and Serial Number x x x - x x x x x - x x - x x 5. Second Filter 6.
  • Page 13 FRONT DO NOT r un the f oll owing t ypes of w at er though the Li f e Ioni zer as it can cause damage t o the unit: 1. Di r t y or Salt W at er 2.

  • Page 14: M7 X Ng Installation (Counter Top)

    M7 X NG Installation (counter top) (help video on LifeIonizers.com/support) Refer to diagrams on page15. STeP 1: Unscrew the existing aerator from your faucet. STeP 2: Use Teflon plumber’s tape on the threads. Make sure the black rubber washer is inside the diverter valve before you screw it onto your faucet.
  • Page 15 DIVeRTeR CONNeCTION Option: Diverter Valve Adapter if STeP 1: needed for your type of sink. STeP 2: aerator Diverter valve STeP 3: STeP 5: round nut Diverter valve elbows 1/4” tubing plugs (in green) STeP 4: Bottom of ionizer Pre-Filter ** Plugs must be removed before installation.

  • Page 16: M7 X Ng Uc Installation (Under Counter)

    M7 X NG UC Installation (under counter) (help video on LifeIonizers.com/support) Angle stop valve Cold water connect valve COLD WaTeR CONNeCT Totally disconnect Find the raw water Take off the cold the line as shown valve under sink. water line from the above.
  • Page 17 LayOUT DIaGRaM counter hole for faucet should be 1 3/8” Cold Water Connect Faucet Adapter MCU cable Alkaline hose Acid hose Tap water hose Tap water hose NOTE: Run 2-3 gallons of water through the Pre lter(s) pre-filters before you Rubber packing connect them to the Pre lter...

  • Page 18: Quick Connect Fittings And Tubing

    Quick Connect Fittings and Tubing To ensure an optimal seal, tubing should be cut with the end square. An angled cut or distortion of the tubing will not provide an efficient seal and may cause leaks. Determine the length of tubing needed for the connection and cut the segment of tubing to the appropriate length.

  • Page 19: Display Overview

    Display Overview 1. ON/OFF Button 2. Alkaline Selector 3. Purify Selector 4. Acidic Selector 5. Menu/Function 6. Filter 1 Indicator/Reset 7. Filter 2 Indication/Reset 8. Filter 1/Life Indicator 9. Filter 2/Life Indicator 10. Operation Display Lamp 11. Level Indicator 12. Indicator Water Type (Alkaline/Acidic/Purify) 13.

  • Page 20: Function Options

    Function Options NOTe: FLOW RaTe MUST Be SeT TO GeT PROPeR PH LeVeLS. Set flow rate no higher than 2.5 liters per minute. Anything higher could cause internal damage. aMPS aND LITeRS PeR MINUTe (LPM) NOTe: the unit must be dispensing water before pressing the buttons. •...
  • Page 21 SOUND/VOLUMe aDJUSTMeNT (F10) To enter the Volume Adjustment please do the following: • Press and hold the “MENU” button for 5 seconds. • Once you do this “VOL” will appear on the display and below that it will show a number. • To increase volume, press and release the “FILTER 2”...
  • Page 22 PH TeSTING WITH DROPS To test and to determine the pH of your water, you will have to select the level you are testing as well as combining the liquid reagent pH drops provided with the purchase of your ionizer with a sample of water gathered from your ionizer.
  • Page 23 aMPeRaGe aDJUSTMeNT (F20) (help video on LifeIonizers.com/support) To enter into the F20 you will need to do the following: NOTe: The buttons must be pressed quickly as failure to do so will result in booting you out of the program menu. The unit must be dispensing water before pressing the buttons.
  • Page 24 FUNCTIONS F-30 aND aFTeR To enter F-30 and after functions you will need to do the following. • Press and hold the “MENU” & “FILTER 1” buttons simultaneously for 5 seconds. • The machine will display F20 and the screen. • Press and release the “MENU”...

  • Page 25: M7 X Ng Operation Method (Counter Top)

    M7 X NG Operation Method (counter top) * Make sure the cold water is on and diverted to the ionizer. Press the “ON/OFF” button. Alkaline water discharge method Then press the “ALKALINE” button and keep tapping that button until the desired alkaline level displays on the screen.

  • Page 26: M7 X Ng Uc Operation Method (Under Counter)

    M7 X NG UC Operation Method (under counter) DISPLAY WINDOW OPERATION MENU DESCRIPTION When you select alkaline water. 1~4 phases appear in number and light is marked by blue color. When you select acid water, 1~3 phases appear in number and light is marked by orange color.
  • Page 27 Indicator Functions: 1. Filter Indicator 2. Indicates Ionized Water Type 3. Indicates Selected Ionization Water Setting 4. Ionization Water Selection Button 5. The Faucet Can Swivel Up to 120° Voice Functions *It is being washed now, Please wait a minute. alkaline Water Button *Alkaline 4 - 4th grade of alkaline water is being extracted now.

  • Page 28: Internal Filter Replacement

    Internal Filter Replacement For installation video, go to www.lifeionizers.com/support and click the Next Generation filter replacement video. The sticker on the filter must be removed. Filter 1 Filter 2 How to Change the Filters 1. Remove the filter cover for the filter you want to change. 2.

  • Page 29: Filter Reset Instructions (Counter Top)

    Filter Reset Instructions (counter top) (help video on LifeIonizers.com/support) Filter 1 After changing the first filter, press and hold the “FILTER 1” button for 10 seconds. You will hear 2 beeps and the filter counter indicator will reset to 3000. Filter 2 After changing the second filter, press and hold the...

  • Page 30: Filter Reset Instructions (Under Counter)

    Filter Reset Instructions (under counter) Undercounter Filter Reset * After changing the first filter, you can reset it by pressing and holding the “ACIDIC” button for 10 seconds and you will hear 2 beeps. Volume Control * After changing the second filter;...

  • Page 31: Citric Acid (Scaling) Cleaning Filter

    Citric acid (Scaling) Cleaning Filter (Step by Step Installation Guide on LifeIonizers.com/support) Citric Acid (Scaling) cleaning filter should be used 3 to 4 times per year. Cartridge is only good for one cleaning. ON/OFF PURIFIED NOTe: If the water dispersed from the spout is still slower than the waste water, the machine may need to be sent in for deep cleaning.
  • Page 32 NOTe: If you are putting in any new filters, do so after the cleaning. 1. Turn off power to the ionizer by pressing the circle side of the power switch located at the bottom of the ionizer. 2. Remove the #2 filter cover located on the right side when looking at the back of the ionizer.

  • Page 33: Filtration Media

    Filtration Media Filter 1 1. Sediment Used to filter sediments (mud, rust, sand, etc) 10 microns or larger. 2. Pre-Carbon Used for chlorine Trihalomethanes and other Volatile Organic Compounds 3. activated Carbon Filters Ultra-fine coconut shell carbon and silver impregnated carbon. 4.

  • Page 34: Pre-Filter Replacement

    Pre-filter Replacement 1. Shut off water supply at source (cold water connect or diverter valve). Turn on the ionizer to relieve water pressure. Shut off ionizer. 2. Disconnect 1/4” tubing from inlet and out- let from pre-filter. Press collar in the then pull on tubing to release.

  • Page 35: Acidic Cleaning Instructions & Routine Maintenance

    acidic Cleaning Instructions & Routine Maintenance Many locations have excessive mineral content in the source water that can build up inside the ionizer over time and cause blockage. A routine acidic cleaning of the ionizer chamber will help maximize the life and performance of your ionizer by reducing the build-up of these minerals.

  • Page 36: Common Problems And Solutions

    Common Problems and Solutions Condition Possible Problem Solutions The power light • Unit may not be plugged in • Make sure power plug is plugged is not on or the correctly into outlet correctly power switch • Unit may be plugged into an •...

  • Page 37: Operation Warnings/Error Messages

    Operation Warnings/error Messages • Improper use may cause structural damage to the unit or physical injury. • Do not make any adjustments after F60 in the mode menu. • Do not place anything on the unit. • Disassemble the alkaline water outlet pipe (power set hose) before picking up the unit.

  • Page 38: How Alkaline Water Is Made

    How alkaline Water is Made Converts the existing mineral carbonates in tap water into mineral hydrates. Splits alkaline minerals – calcium and magne- sium – from the carbon- alkaline Side: acidic Side: ate in water using elec- • Higher pH • Lower pH tromagnetism. • Antioxidant • Oxidative Separates water into...

  • Page 39: Alkaline/Acidic/Purified Water

    alkaline/acidic/Purified Water aLkaLINe WaTeR • 1. If the machine has not been used for several days, let the water run on the “Purified Water” setting for at least 3-5 minutes before any operation. • First time users who are not familiar with this water are recommended to start with Ionized alkaline Water level 1 for two weeks, then adjust the level to alkaline Water level 2 for two weeks, and then adjust again to alkaline Water level 3 for daily drinking.

  • Page 40: Uses Of Ionized Alkaline/Acidic Water

    Uses for Ionized alkaline/acidic Water Highly Ionized alkaline Water: pH 11.0+ Highly Ionized Alkaline Water is useful for cleaning and preparing food. Food Preparation: Wash Vegetables and fruit. Cleaning: Clean cutting boards with. Good for cleaning oil and tough grime from vents, as well as for general cleaning in the kitchen.
  • Page 41 Soups and Stews: Ionized Alkaline Water draws out the flavor of ingredients so they get tender and juicy. Therefore, less seasoning such as salt and soy sauce are needed. This water is good for people who want to reduce their salt intake. animals: Give purified water with food.
  • Page 42 acidic Water pH: 4.0-6.0 Face wash: The astringent properties of acidic water are effective in toning and firming your skin. Pat the skin and leave to dry. This water is also excellent as a toner after shaving. Hair Care: Use this water to rinse your hair after shampooing. Reduces annoying tangles and brings out a radiant shine.

  • Page 43: Performance Features

    SMPS Power System- Combine GRID Technology™ with our advanced SMPS Power System (the same system used in High Definition Televisions) and your LIFE Ionizer® M series will outperform any other model in its class. The system generates up to 504 watts of power and it can be adjusted to compensate for hard water problems.

  • Page 44: Frequently Asked Questions

    Frequently asked Questions Q: What should I expect from drinking Ionized Alkaline Water? A: Everybody’s body is different, but typically new alkaline water drinkers say they see or feel effects in a month or two. You will notice a difference in taste: Ionized Water is much smoother tasting than conventional water.
  • Page 45 Q: Should I take medication or supplements with Ionized Alkaline Water? Do not take prescription or other medications for approximately one hour before and after drinking water. Ionized alkaline water hydrates more efficiently, therefore will deliver more medication than tap water. However, we highly recommend its use with vitamins, supplements, nutritional powders and other nutraceuticals because of its superior quality and enhanced absorption capabilities.
  • Page 46 Q: Why do some people have flu like symptoms when first drinking Ionized Alkaline Water? A: If you start drinking Ionized Alkaline Water at too high of a strength level (high pH level) then you might notice flu like symptoms. These symptoms are mild and they clear up in about a week.
  • Page 47 Q: How does a water ionizer work? A: Your counter top Alkaline LIFE Ionizer® M7 X NG can be directly connected to a diverter valve at the end of your faucet. Connecting directly to your faucet takes about 10-15 minutes.
  • Page 48 Alkaline minerals produce positively-charged ions which gather at the negative electrode. These minerals chemically combine with hydroxyl ions taken from water molecules and form mineral hydrates. Carbonate produces negatively charged ions which gather at the positive electrode and combine with water to create a weak solution of carbonic acid.
  • Page 49 Q: Where is the serial number located? A: On the back of the ionizer, you will see a bar code sticker. The serial number is located below the bar code. Q: What should be done if the machine is not to be used for 7 days or more? A: Remove the filter from the main body, wrap in plastic wrapping, and store in a refrigerator.
  • Page 50 Q: What is hard water? A: According to the U.S. Geological Survey, more than 85 percent of the United States geography has hard water. Hard water forms when naturally occurring minerals enter water sources. Over time these minerals are absorbed by groundwater. The two most common types of minerals found in hard water are calcium and magnesium compounds.
  • Page 51 Q: Do I need to hire a plumber to install the units? A: Most people find it is not necessary to call a plumber for most standard installations. For custom installations, a plumber may be needed depending on the individual circumstances. Q: What do I do if the filters are leaking? A: It is important to note where on the filter it is leaking.
  • Page 52 Q: How do I clean the internal plates? A: Use the Citric Acid Cleaning Filter 3 to 4 times per year. Q: What is the product warranty? A: To validate your warranty, you must complete the warranty card and return it or register online within 30 days of purchase. The warranty that is in effect at the time the machine is purchased is the one that is honored.
  • Page 53 Q: What is your return policy? A: We invite you to try out our new range of LIFE Ionizer® and enjoy the benefits for 60 days. We are so sure that you will be satisfied with your ionizer that we offer you a 60-day money back guarantee.
  • Page 54 LIFE Ionizer® authorized repair facility. LIFE Ionizer® will repair or replace any malfunctioning ionizer for the specified time frames disclosed above. If you are out of your warranty period, then labor is billed at $60/hr.
  • Page 55 Contact U 6352 Corte Del Abeto, Suite H Carlsbad, CA 92011 866.321.3116 760.431.8047 *When calling technical support please be prepared to give your ionizer serial number located on the back of the unit. www.LifeIonizers.com/Support LifeIonizers.com/support LIFE | M7 X/M7 X UC NG...
  • Page 56 LIFE | M7 X/M7 X UC NG LifeIonizers.com/support rev 6-29-17...
