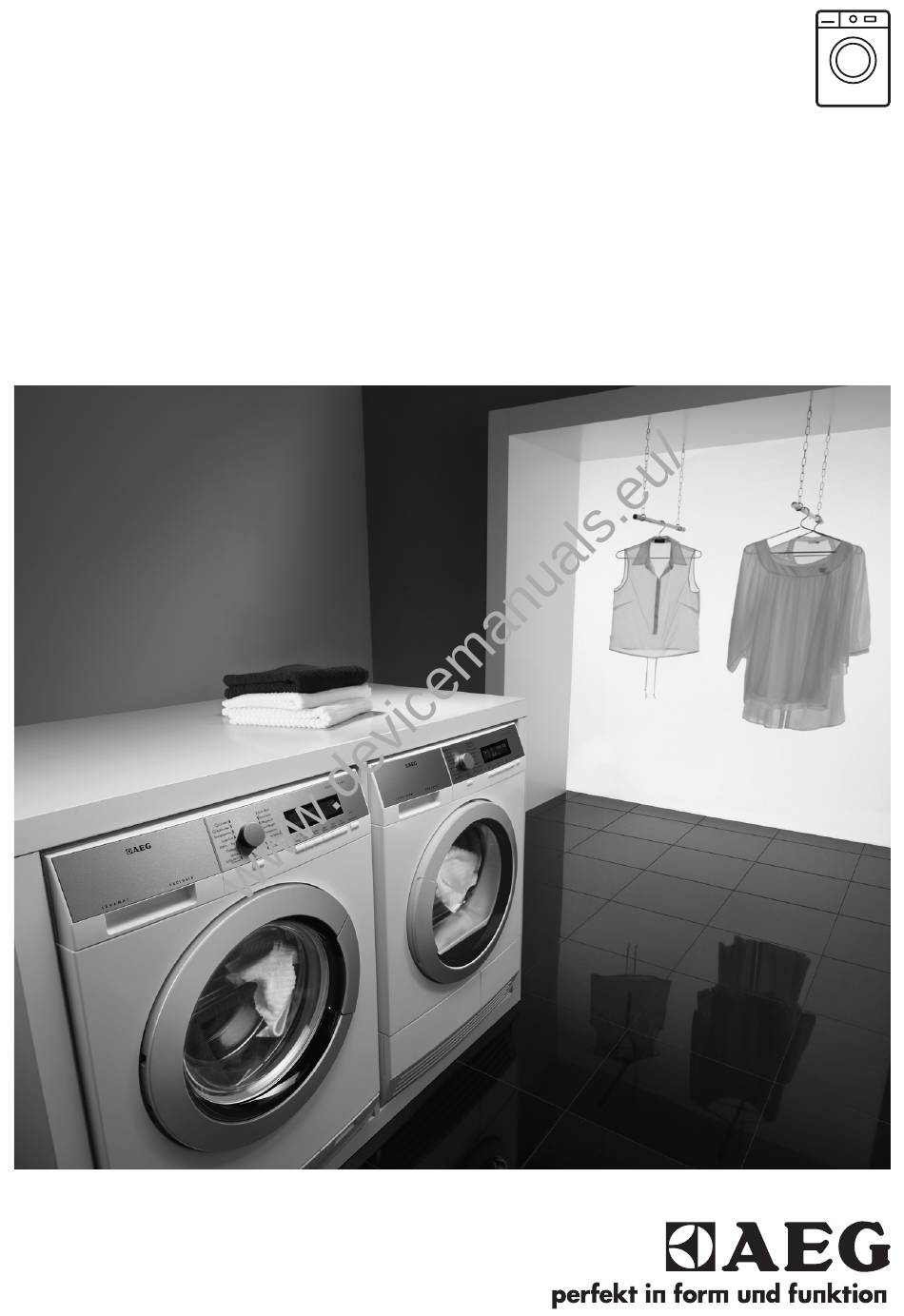

- Page 1 User Manual LAVAMAT 68270FL Washing Machine LAVAMAT 68470FL LAVAMAT 68270VFL LAVAMAT 68470VFL...
-
Page 2: Table Of Contents
14. TECHNICAL DATA..................... 23 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. -
Page 3: Safety Information
ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. -
Page 4: Safety Instructions
If the supply cord is damaged, it must be replaced by • the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard. Before maintenance, deactivate the appliance and • disconnect the mains plug from the mains socket. -
Page 5: Product Description
ENGLISH 2.4 Use • Do not touch the glass of the door while a programme operates. The WARNING! glass can be hot. Risk of injury, electrical 2.5 Service shock, fire, burns or damage to the appliance. • To repair the appliance contact an Authorised Service Centre. -
Page 6: Control Panel
4. CONTROL PANEL 4.1 Control panel description Cotton Prewash Cotton Eco 1400 Synthetics Quick 1200 Delicates Super Quick Wool/Handwash 30 Min - 3Kg Finish In Rinse Only Mix 20° Drain & Spin Easy Iron On/Off On/Off button (On/Off) Start/Pause touchpad (Start/Pause) -
Page 7: Programme Chart
ENGLISH 5. PROGRAMME CHART Programme Programme description Temperature range (Type of load and soil level) Maximum load Maximum spin speed Cotton White cotton and coloured cotton. Normal soil and light soil. 90 °C - Cold 7 kg; 1200 rpm for model L 68270FL,L 68270VFL; 1400 rpm for model L 68470FL,L 68470VFL White cotton and colour-fast cotton. - Page 8 Programme Programme description Temperature range (Type of load and soil level) Maximum load Maximum spin speed Synthetic items to be gentle washed. Normal and light Easy Iron 60 °C - Cold soil. 1 kg; 800 rpm 1) Standard programmes for the Energy Label consumption values. According to regulation 1061/2010, these programmes are respectively the «Standard 60°C cotton programme»...
-
Page 9: Consumption Values
ENGLISH 5.1 Woolmark Apparel Care - Company for the washing of wool garments labelled as «hand wash» Blue provided that the garments are washed according to the instructions issued by the manufacturer of this washing machine. Follow the garment care label for drying and other laundry instructions. -
Page 10: Options
Programmes Load (kg) Energy con- Water con- Approxi- Remaining sumption sumption (li- mate pro- moisture (kWh) tre) gramme du- ration (mi- nutes) Wool/Hand- 0,45 / 30 wash 30 °C Standard cotton programmes Standard 60 0,92 / 52 °C cotton... -
Page 11: Settings
ENGLISH 7.3 Prewash The related indicator comes on. With this option you can add a prewash 7.7 Drain & Spin phase to a washing programme. With this option you can perform the Use this option for heavy soil. spin and drain cycle. When you set this option the programme The spin phase is suitable to the washing duration increases. -
Page 12: Before First Use
• The programme is completed. If you deactivate the • The appliance has a malfunction. acoustic signals, they To deactivate/activate the acoustic continue operate when the signals, touch the buttons Programmes appliance has a malfunction. and Temp. at the same time for 4 seconds. - Page 13 ENGLISH 10.4 Liquid or powder detergent Flap for powder or liquid de- tergent. When you set a prewash option, put the detergent for prewash phase directly into the drum. • Position A for powder detergent (factory setting). • Position B for liquid detergent. When you use the liquid detergent: •...
- Page 14 • The display shows the You can cancel or change programme duration. the set of the Finish In 2. If necessary, change the temperature option before you touch the and the spin speed or add available button Start/Pause . After options.
-
Page 15: Hints And Tips
ENGLISH 10.11 Opening the door • The indicator flashes to remind you to drain the water. While a programme (or the Finish In) • The door lock indicator is on. The operates, the appliance door is locked. indicator of button Start/Pause The indicator is on. -
Page 16: Care And Cleaning
• Some coloured items can discolour programmes (60 °C max) for all with the first wash. We recommend types of fabric, or special for that you wash them separately for the woollens only. first times. • Do not mix different types of •... - Page 17 ENGLISH 12.1 External cleaning 12.3 Maintenance wash Clean the appliance only with soap and With the low temperature programmes it warm water. Fully dry all the surfaces. is possible that some detergent stays in the drum. Make regularly a maintenance CAUTION! wash.
- Page 18 12.6 Cleaning the drain filter WARNING! Do not clean the drain filter if the water in the appliance is hot.
- Page 19 ENGLISH 12.7 Cleaning the inlet hose and the valve filter 45° 20°...
-
Page 20: Troubleshooting
12.8 Emergency drain 0° C, remove the remaining water from the inlet hose and the drain pump. Because of a malfunction, the appliance 1. Disconnect the mains plug from the cannot drain the water. mains socket. If this occurs, do steps (1) through (9) of 2. - Page 21 ENGLISH • - No communication between WARNING! electronic elements of the appliance. Deactivate the appliance Switch off and switch on again. before you do the checks. 13.2 Possible failures Problem Possible solution The programme does Make sure that the mains plug is connected to the mains sock- not start.
- Page 22 Problem Possible solution The spin phase does not Set the spin programme. operate or the washing cycle lasts longer than usually. Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to 'Care and cleaning'.
-
Page 23: Technical Data
ENGLISH 14. TECHNICAL DATA Dimension Width/ Height/ Depth/ 600 mm/ 850 mm/ 517 mm/ 576 mm Total depth Electrical connection Voltage 230-240 V Overall power 2200 W Fuse 13 A Frequency 50 Hz Level of protection against ingress of solid particles IPX4 and moisture ensured by the protective cover, ex- cept where the low voltage equipment has no pro-... - Page 24 www.aeg.com/shop...
