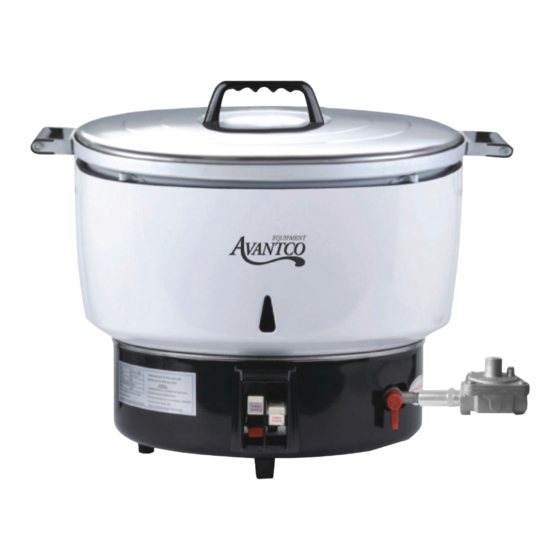

110 Cup (55 Cup Raw) Gas Rice Cooker
Model: 177GRC110LP, 177GRC110NAT
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
Please read and keep these instructions. Indoor use only.
www.AvantcoEquipment.com
User Manual
User Manual
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operating, and maintenance Instructions thoroughly
before installing or servicing this equipment.
Intertek
5010781
Conforms to ANSI
STD Z83.11-2016
4/2020
1
Advertisement
Table of Contents
Related Manuals for Avantco 177GRC110LP
Summary of Contents for Avantco 177GRC110LP
- Page 1 User Manual Intertek 5010781 Conforms to ANSI STD Z83.11-2016 110 Cup (55 Cup Raw) Gas Rice Cooker Model: 177GRC110LP, 177GRC110NAT 4/2020 WARNING FOR YOUR SAFETY Improper installation, adjustment, alteration, service or maintenance can cause property Do not store or use gasoline or other damage, injury or death.
-
Page 2: Table Of Contents
User Manual NOTE: Save these instructions for future reference. Index Safety Precautions ..............3 Specifications ................4 Parts List ..................4 Safe Usage ................5 Placement ..................5 Installation Instructions ............6, 7 Before Use .................8 Notice ..................8, 9 Instructions ................9, 10, 11 Cleaning Method ...............12 Maintenance Instructions ............12 Troubleshooting .................13 Warranty ..................14... -
Page 3: Safety Precautions
User Manual Safety Precautions: 1. For safety purposes, please do not store or use this device in the vicinity of gas or other flammable material. 2. If you notice the smell of gas, please contact you gas company immediately. How to handle gas leak: if you detect gas leaks, please do not ignite, do not turn on or off any electrical equipment (such as exhaust fans), do not plug in or remove any electrical outlet, and do not use the phone near the cooker. -
Page 4: Specifications
User Manual Specifications Intertek 5010781 Conforms to ANSI STD Z83.11-2016 Model No ............177GRC110LP Power Rating ..........22,000 BTU Capacity .............110 cups/55 cups raw Weight ............33.6 lb. Dimensions ..........201/4" D x 171/8"H Orifice Size & Drill For Main Burner ..1.4MM Orifice Size for Permanent Pilot ....0.15MM Orifice Size for Ignition Burner ....0.4MM... -
Page 5: Safe Usage
User Manual Safe Usage • Use the designated gas listed on the rating plate. • Contact Avantco Equipment for correct usage if gases change. NOTE: Current national gas types: 1. Liquid Propane Gas (Y) 2. Natural Gas (T) 3. Manufactured Gas ( R ) Placement •... -
Page 6: Installation Instructions
User Manual Installation Instructions 1. The gas supply line must be of adequate size to ensure maximum efficiency of the unit. 2. The installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223. - Page 7 User Manual 14. If applicable, the vent line from the gas appliance pressure regulator shall be installed to the outdoors in accordance with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223. 1/NFPA 54. Always follow these lighting and shut down instructions when lighting the rice cooker.
- Page 8 User Manual Installation Instructions Before using your gas rice cooker, be sure to install the following two parts on the rice cooker: Gas Connector Rear Connector 1. Fasten the rear connector into the gas valve. (Fig. 1) 2. Fasten the gas regulator into the rear connector. Be sure to follow the direction of the arrow.
-
Page 9: Before Use
User Manual Before Use NOTE: Please use neutral detergent to wash inner pot and lid before use. Gas Connection • Connect 0.374 in rubber hose with the external line and fasten tightly. (Refer to below picture) • Use this hose to prevent loss of pressure and difficult ignition. Inspect the hose regularly and change immediately if it becomes compromised. -
Page 10: Notice
User Manual Notice (Continued) • The inner pot is only used for the gas rice cooker and cannot be applied for other appliances. This can lead to breakdown. • The bottom burner is only for the gas cooker and cannot be applied for other appliances. - Page 11 User Manual IGNITION AND COOKING INSTRUCTIONS 1. Turn gas valve to ON position. 2. Take out the inner pot when first used during lighting. 3. Press down the IGNITION BUTTON until you hear a sound. 4. Check to ensure WARM BUTTON is also at ON position. 5.
- Page 12 5. If it is not ignited using the above sequence, or abnormal combustion is found during ignition or usage, switch off the gas to check the burner if it is blocked or wet. Cook down and clean the burner, then ignite again. If problems repeat, please contact Avantco Equipment for repair.
-
Page 13: Cleaning Method
User Manual Cleaning Method Cleaning of Water Pan • Clean with soap and water. Cleaning of Inner Pot • Clean the inner pot with water, or use neutral detergent when necessary. Then wipe dry with a cloth. Be careful when using metal cleaner, this will cause scratches on metal surface, especially for the thermostat at the bottom. -
Page 14: Troubleshooting
CAUSE SOLUTION Backfire sound is found Back fire on main orifice. Ignite again after the flame is out. If it is not solved, please contact Avantco during ignition or use Equipment for repair. Cannot flame out 1. Broken-down thermal 1. Thermal expansion device replacement. -
Page 15: Warranty
Equipment Limited Warranty Avantco warrants its equipment to be free from defects in material and workmanship for a period of 6 months. This is the sole and exclusive warranty made by Avantco covering your Avantco brand equipment. A claim under this warranty must be made within 6 months from the date of purchase of the equipment.
