Vixen Horns VXO8530/3311B Installation Manual

Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual

BEFORE BEGINNING YOUR INSTALLATION

Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.
CONTENTS
 Triple Trumpet Train Air Horn (Black)
 150 PSI Air Compressor
 1.5 Gallon Air Tank
 12V/24V Electric Air Valve (Solenoid)
 140 PSI Air Pressure Gauge
 95-125 PSI Pressure Switch
 Brass Drain Nut
 1/4" NPT Compression Fitting for 1/4" OD Air Line
 1/4" OD Nylon Plastic Hose (6 Feet)
 30A In-line Fuse
 Horn Button
 Mounting Hardware
The specific voltage requirement for this horn system is 12 volt DC, therefore installation must be done to a DC
power source of 12 volts.

SAFETY INSTRUCTIONS

 Do not attempt to disassemble, repair or customize this product.
 Avoid setting up any parts of this product where there is a risk of falling off or risk of coming in contact with water.
 Avoid reaching out to touch or pick up any fallen or water submerged parts.
 Never leave this product unattended during use.
 Intended for use by adults only.
 During and immediately after use, avoid touching any part of the compressor with bare hands as it is very hot
during such periods.

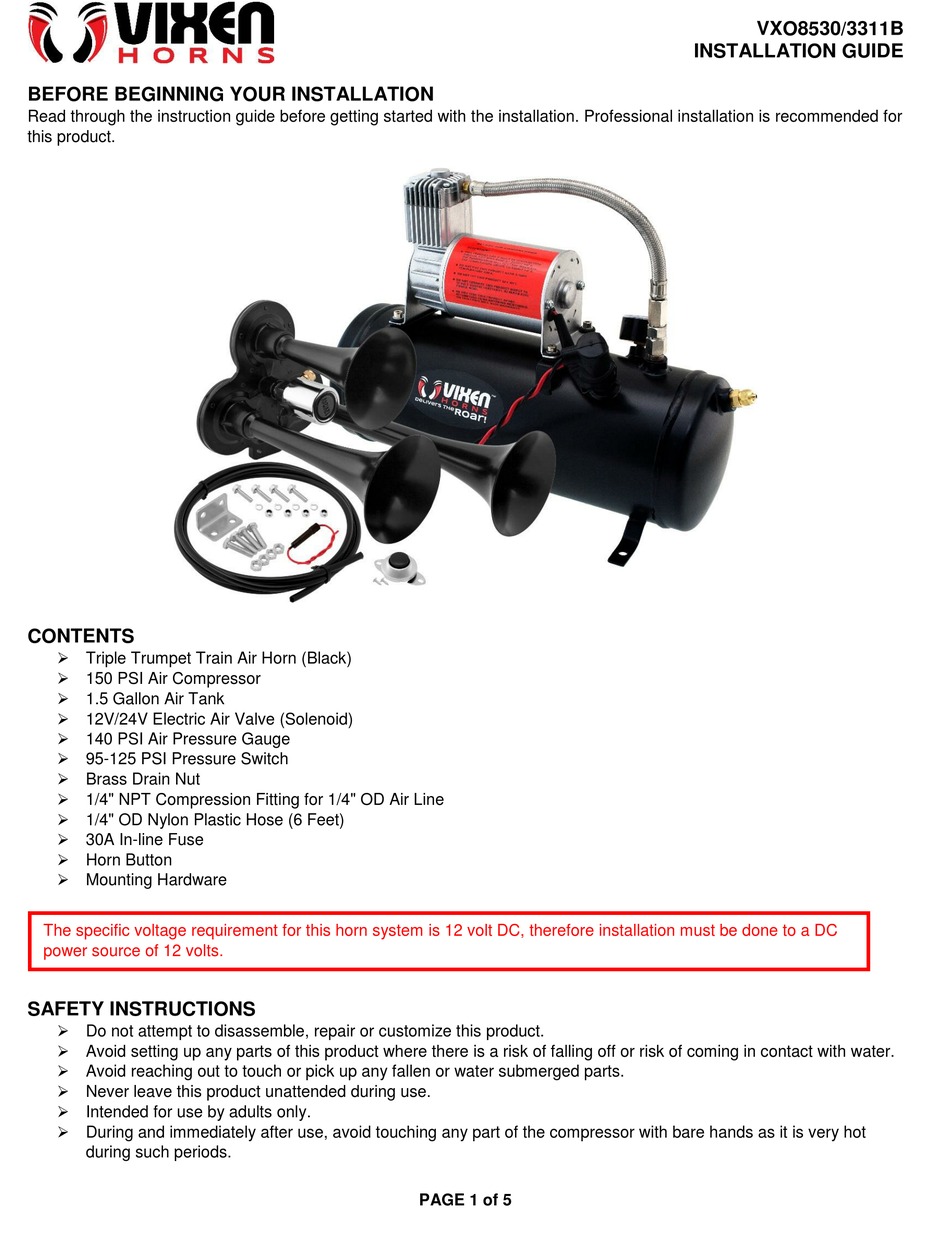

PAGE 1 of 5
VXO8530/3311B
INSTALLATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VXO8530/3311B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vixen Horns VXO8530/3311B

Summary of Contents for Vixen Horns VXO8530/3311B

  • Page 1 VXO8530/3311B INSTALLATION GUIDE BEFORE BEGINNING YOUR INSTALLATION Read through the instruction guide before getting started with the installation. Professional installation is recommended for this product. CONTENTS  Triple Trumpet Train Air Horn (Black)  150 PSI Air Compressor  1.5 Gallon Air Tank ...
  • Page 2 VXO8530/3311B INSTALLATION GUIDE  Avoid sounding the air horn when in close range to your ear(s) or the ear(s) of others.  Avoid use of product near flames, explosive materials, aerosol products or oxygen devices.  Be sure to pump nothing other than atmospheric air.
  • Page 3 VXO8530/3311B INSTALLATION GUIDE ON-BOARD AIR SYSTEM MOUNTING  Determine a dry place to mount your on-board air system. If you have chosen to install in the engine compartment, you should mount it as close to the front as possible to allow for maximum flow of air around compressor and also to avoid heat from the exhaust.
  • Page 4 VXO8530/3311B INSTALLATION GUIDE ELECTRICAL CONNECTION ON-BOARD AIR SYSTEM  The red wire of the on-board system coming from the pressure switch should be connected using the provided fuse to (+) 12-volt power source. IMPORTANT: To prevent the compressor from over running and possible damage due to an air leak, connect the compressor’s red wire to a power source in the vehicle that...
  • Page 5 VXO8530/3311B INSTALLATION GUIDE MAINTENANCE  Make sure that electrical and fitting connections are regularly inspected, cleaned and tightened when needed.  Make sure mounting screws are regularly tightened if needed.  Drain weekly, to avoid excessive buildup of condensation.  Compressor features a washable air filter which should be cleaned using any mild form of liquid soap every two months if it gets dusty.
