Summary of Contents for Twinhead DURABOOK S14I

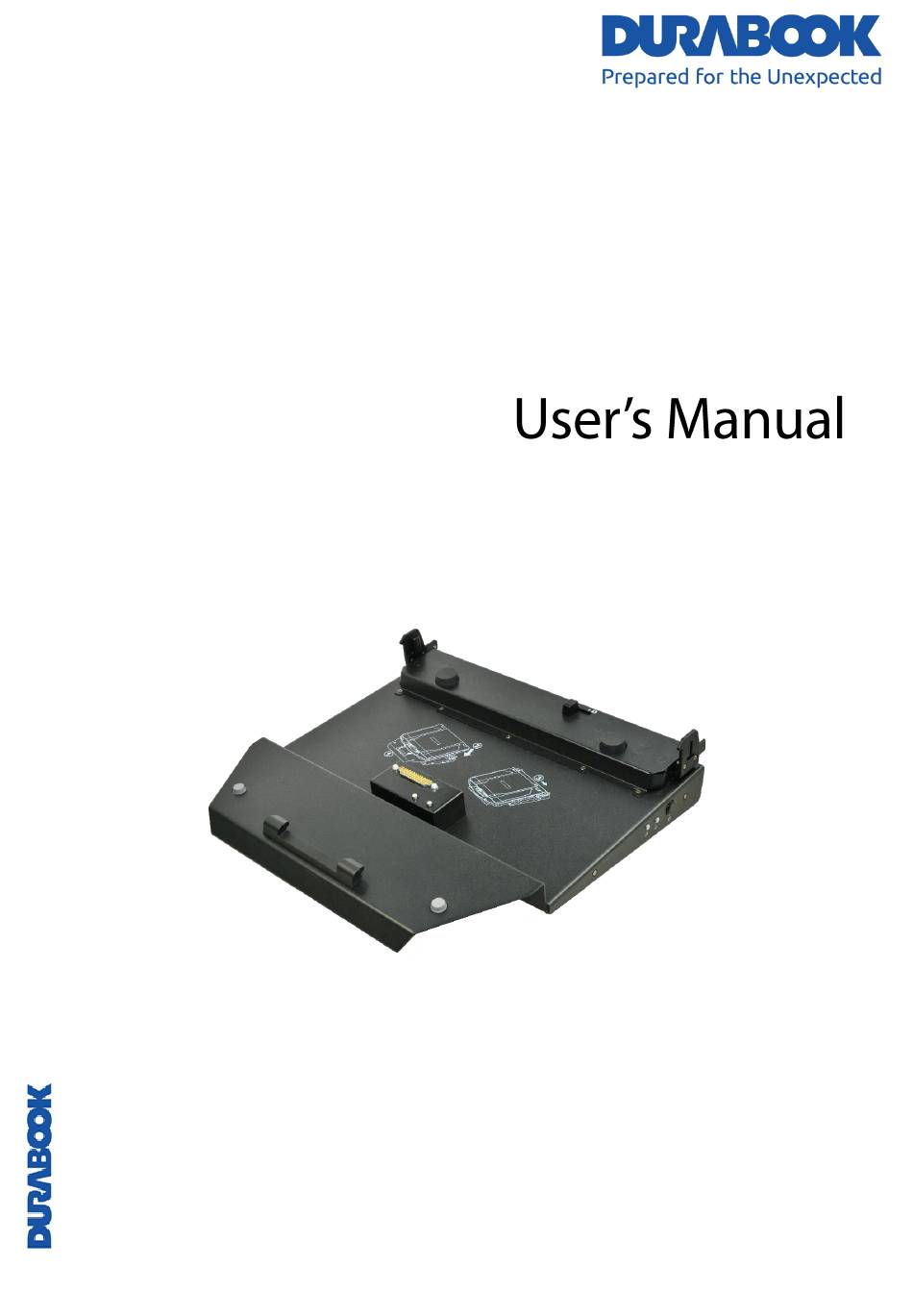

- Page 1 S14I Rugged Laptop Office Docking PN: 62+030940+00 © 2021 Twinhead International Corp and/or its affiliates. All rights reserved.
- Page 2 Office Docking Package Contents If any of following items is damaged, please contact your retailer. Office Docking Adapter Power code NOTE The pictures are for reference only, actual items may slightly differ.

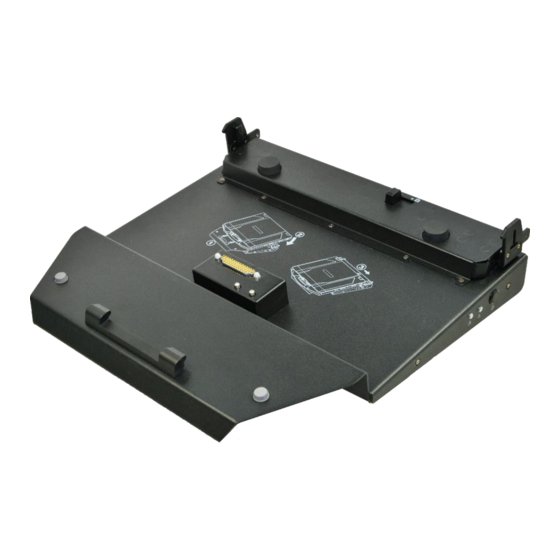

- Page 3 Office Docking Product Overview Item Terminal Alignment bracket Lock/Unlock switch Lock latch LAN LED Power LED Power button DC-in jack Ethernet port 2x USB3.0 ports 2x USB2.0 ports DP (DisplayPort) port HDMI port VGA port Serial port Audio out jack Microphone input jack LED Indicator Behavior LAN LED...
- Page 4 Office Docking Docking the Laptop PC 1. Align the Laptop PC by the alignment bracket and terminal contact and then place the Laptop PC onto the docking cradle. Be sure to insert the handle side first as shown the illustration. 2.
- Page 5 • If the Laptop PC is equipped with dual mini DP ports and VGA port (or dual LAN ports), then the mini DP port on the right side is disabled while the Laptop PC is locked to the docking cradle. Twinhead International Corp. 11F, No.550, Ruiguang Rd., Neihu, Taipei 11492, Taiwan, R.O.C.
