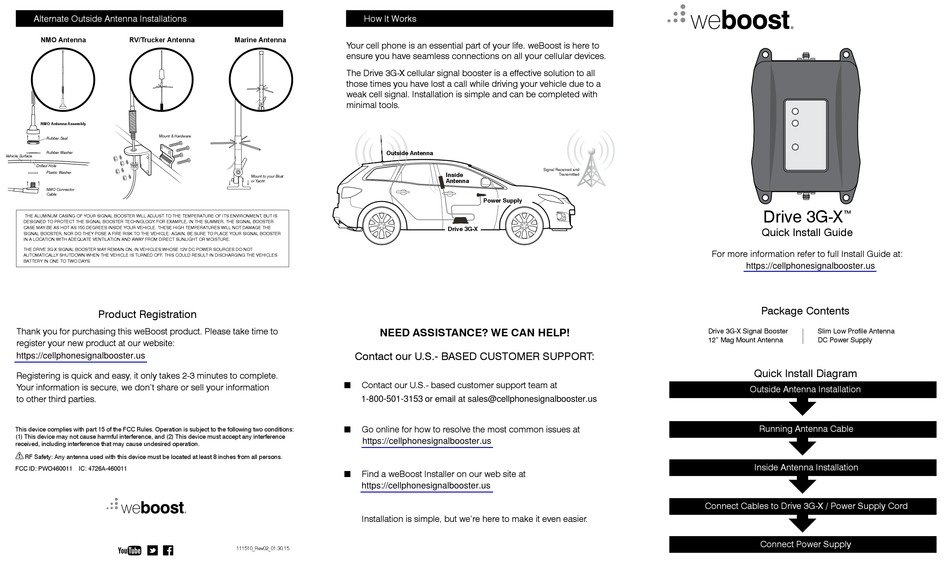

weBoost Drive 3G-X Quick Install Manual

Alternate Outside Antenna Installations
NMO Antenna RV/Trucker Antenna
NMO Antenna Assembly
Mount & Hardware
Rubber Seal
Rubber Washer
Vehicle Surface
Drilled Hole
Plastic Washer
NMO Connector
Cable
THE ALUMINUM CASING OF YOUR SIGNAL BOOSTER WILL ADJUST TO THE TEMPERATURE OF ITS ENVIRONMENT, BUT IS
DESIGNED TO PROTECT THE SIGNAL BOOSTER TECHNOLOGY. FOR EXAMPLE, IN THE SUMMER, THE SIGNAL BOOSTER
CASE MAY BE AS HOT AS 150 DEGREES INSIDE YOUR VEHICLE. THESE HIGH TEMPERATURES WILL NOT DAMAGE THE
SIGNAL BOOSTER, NOR DO THEY POSE A FIRE RISK TO THE VEHICLE. AGAIN, BE SURE TO PLACE YOUR SIGNAL BOOSTER
IN A LOCATION WITH ADEQUATE VENTILATION AND AWAY FROM DIRECT SUNLIGHT OR MOISTURE.
THE DRIVE 3G-X SIGNAL BOOSTER MAY REMAIN ON, IN VEHICLES WHOSE 12V DC POWER SOURCES DO NOT
AUTOMATICALLY SHUTDOWN WHEN THE VEHICLE IS TURNED OFF. THIS COULD RESULT IN DISCHARGING THE VEHICLES
BATTERY IN ONE TO TWO DAYS.
Product Registration
Thank you for purchasing this weBoost product. Please take time to
register your new product at our website:
https://cellphonesignalbooster.us
Registering is quick and easy, it only takes 2-3 minutes to complete.
Your information is secure, we don't share or sell your information
to other third parties.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
RF Safety: Any antenna used with this device must be located at least 8 inches from all persons .
FCC ID: PWO460011 IC: 4726A-460011
How It Works
Marine Antenna
Your cell phone is an essential part of your life. weBoost is here to
ensure you have seamless connections on all your cellular devices.
The Drive 3G-X cellular signal booster is a effective solution to all
those times you have lost a call while driving your vehicle due to a
weak cell signal. Installation is simple and can be completed with
minimal tools.
Outside Antenna
Mount to your Boat
or Yacht
NEED ASSISTANCE? WE CAN HELP!
Contact our U.S.- BASED CUSTOMER SUPPORT:
n C ontact our U.S.- based customer support team at
1-800-501-3153
n Go online for how to resolve the most common issues at
https://cellphonesignalbooster.us
n F ind a weBoost Installer on our web site at
https://cellphonesignalbooster.us
Installation is simple, but we're here to make it even easier.
111510_Rev02_01.30.15
Signal Received and
Inside Transmitted
Antenna
Power Supply
Drive 3G-X
or email at sales@cellphonesignalbooster.us
Drive 3G-X
™
Quick Install Guide
For more information refer to full Install Guide at:
https://cellphonesignalbooster.us
Package Contents
Drive 3G-X Signal Booster Slim Low Profile Antenna
12" Mag Mount Antenna DC Power Supply
TM
Cellular Signal Booster
Quick Install Diagram
460101
Outside Antenna Installation
Running Antenna Cable
Inside Antenna Installation
Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Connect Cables to Drive 3G-X / Power Supply Cord
Connect Power Supply
