3.4 Other network topologies

3.4.1 Repeater networks
Though there is no functionality for a transmitter to automatically forward a message along to
another radio, repeater networks can be setup to provide for additional coverage.

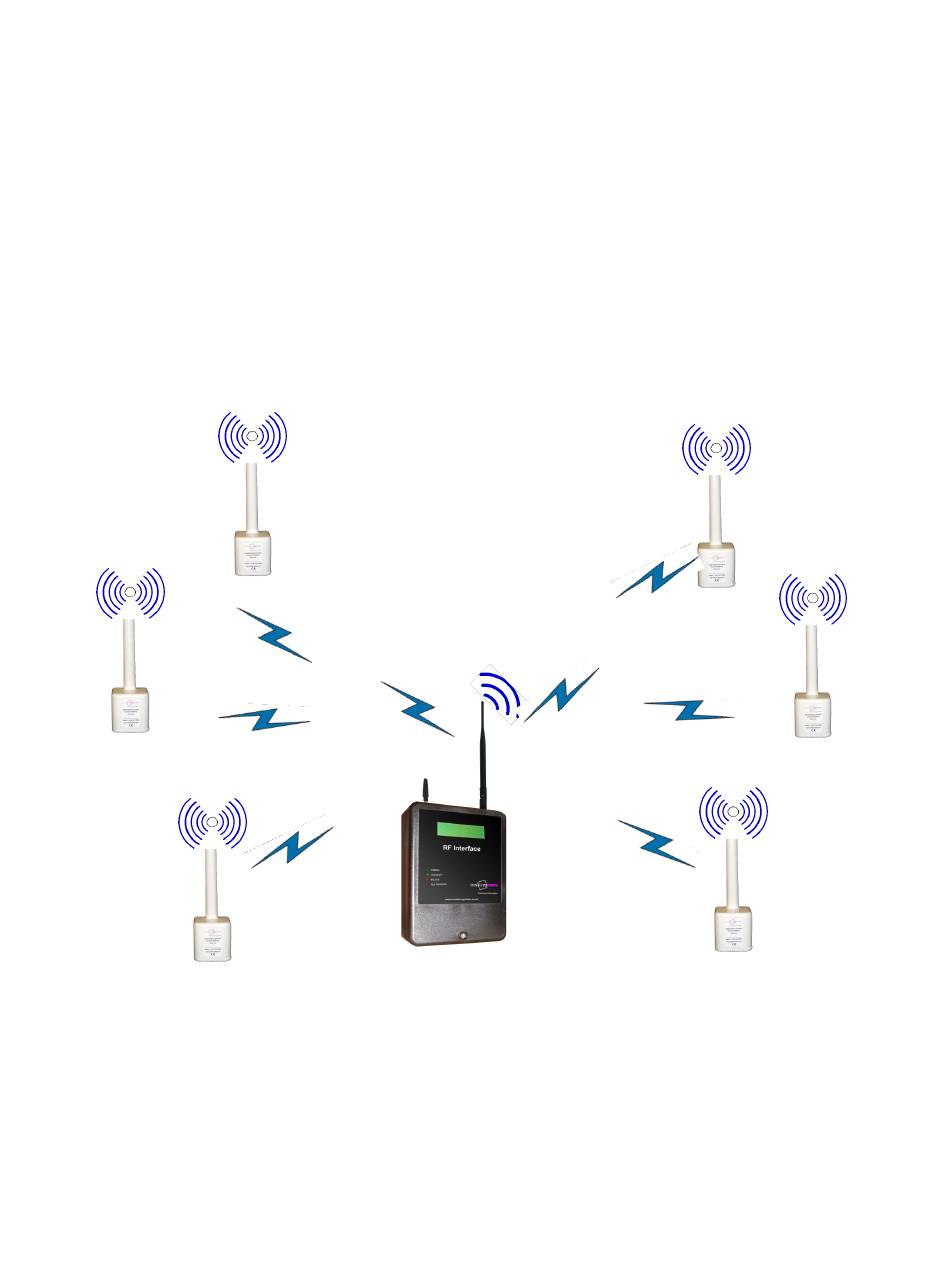

This example of a repeater network would still be useful for a point-to-multipoint network
where some of the transmitters are not in range of the primary access point.
In this network topology an ISL024DB1R product is setup as a repeater to act as the primary
access point.
To cover additional areas, a repeater consisting of two ISL024DB1R can be added to the
network.
Transmitter
Transmitter
Transmitter
Transmitter
Repeater
Repeater
Receiver
Transmitter
Transmitter
