- Page 1 BST-LAN10 LAN CABLE TESTER INSTRUCTION MANUAL...
- Page 2 INTRODUCTION ● The Lan cable tester is a newly designed tool that can easily test the correct pin configuration of the RJ45/ RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc. ● By comparing one transmitting end and the corresponding receiving end, the Lan cable tester also can test installed cable far away by using the remote receiving unit.

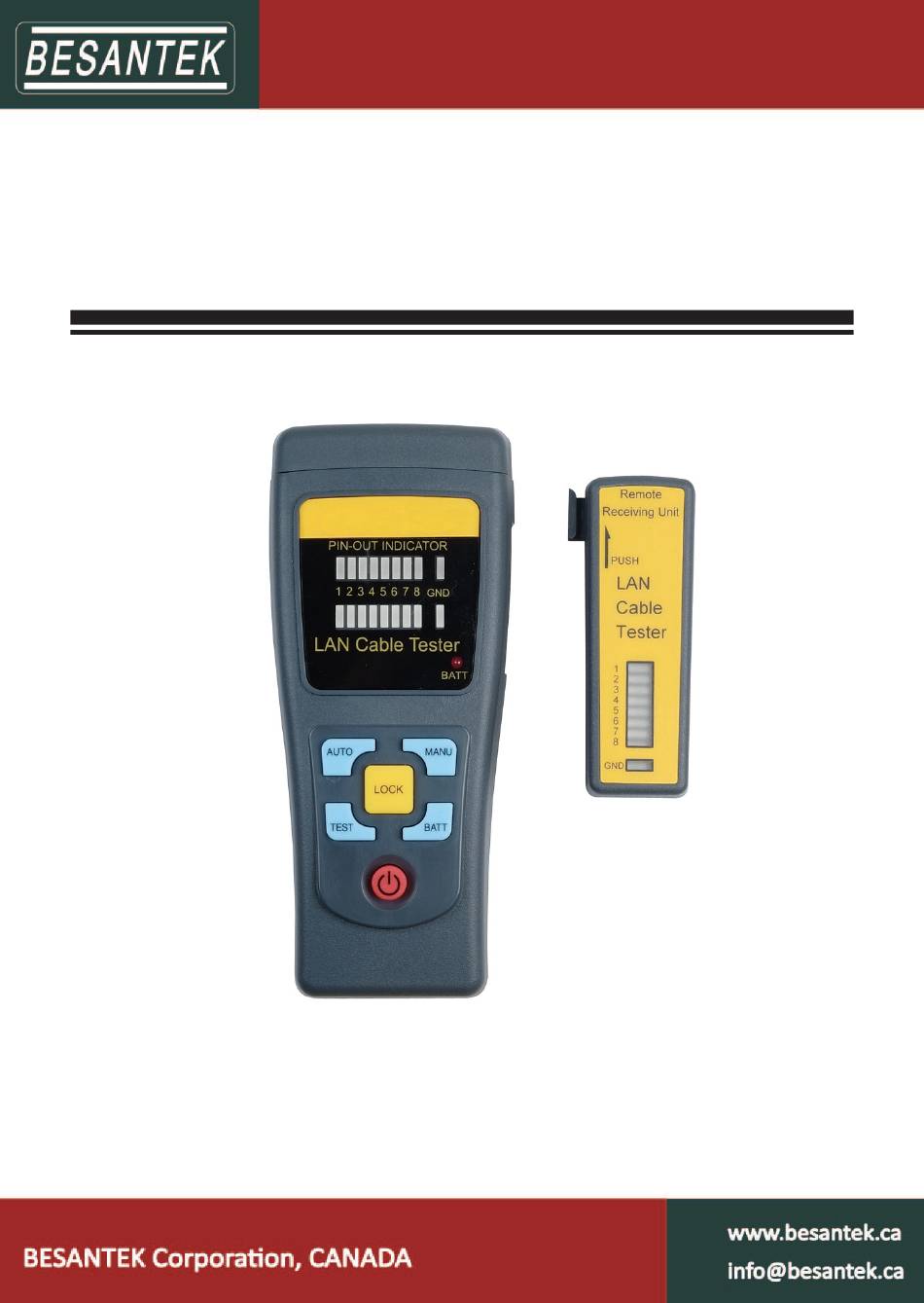

- Page 3 INSTRUMENT LAYOUT (14) (13) (12) (11) (15) (10) (16) (1) RJ45 jack of sourcing end. (2) RJ45 jack of receiving end. (3) LED indicator of sourcing end. (4) LED indicator of receiving end. (5) Auto scan control button. (6) Test button for manual wire test. (7) Power ON/OFF control button.
- Page 4 (10) Manual scan control button. (11) Battery check LED. (12) LED indicator of receiving end for ground wire test. (13) LED indicator of sourcing end for ground wire test. (14) RJ45 jack of the remote receiving unit. (15) LED indicator of the remote receiving unit. (16) LED indicator for ground wire test on remote receiving unit.
- Page 5 OPERATION Loopback test ● Plug one end of the testing cable into the Rj45 jack of sourcing end on the master unit and another end of the testing cable into the RJ-45 jack of receiving end on the master unit. ●...
- Page 6 Loopback Test Remote Test Receiving Sourcing end (IN) end (OUT) Wall Plate Patch Panel...
- Page 7 TEST RESULT...
- Page 8 MAINTENANCE ● Battery replacement: When press the "BATT" button, if the "BATT LED" doesn't glow, replace with a new 9V battery. ● Cleaning and storage: Periodically wipe the case deterged with a damp cloth; do not use abrasives or solvents. If the meter is not to be used for periods of longer than 60 days, remove the battery and store them separately.
