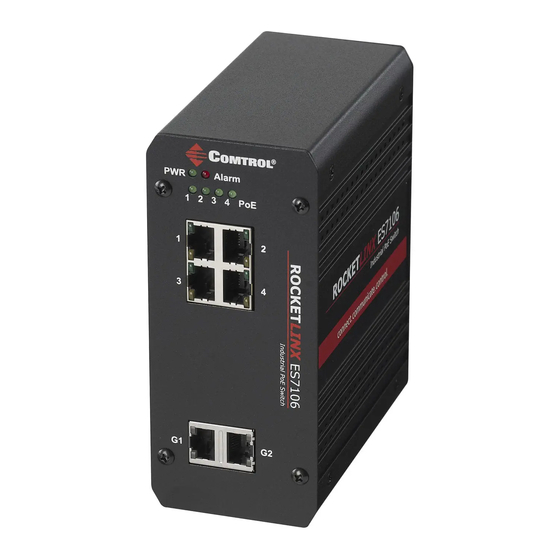

- Page 1 ROCKETLINX ES7106-VB Industrial PoE Switch Quick Installation Guide www.comtrol.com 2000561 Rev A...
- Page 2 Refer to the Comtrol web site for detailed specifications. Set the DIP Switch The ES7106-VB has a 6-pin DIP switch located on the bottom panel to configure the Port Link Alarm for the Ethernet ports. The following table shows the DIP switch number mapping...
- Page 3 ES7106-VB is not damaged by noise or electrical shock. a. Loosen the earth ground screw on the bottom of the RocketLinx ES7106-VB with a screw driver. b. Tighten the screw after the earth ground wire is connected.
- Page 4 DIN Rail Mount The DIN rail clip is already attached on the rear side of the ES7106-VB. 1. Insert the upper end of the DIN rail clip into the back of the DIN rail track from its upper side. 2. Lightly push the bottom of the DIN rail clip into the track.
- Page 5 All the Fast Ethernet ports automatically detect the signal from the connected devices to negotiate the link speed and duplex mode. Auto MDI/MDIX allows you to connect another switch, hub, or workstation without changing straight-through or crossover cables. Crossover cables cross-connect the transmit lines at each end to the received lines at the opposite end.
- Page 6 Comtrol Customer Service You can use one of the following methods to contact Comtrol Corporation. Contact Method Web Address or Phone Number Support http://www.comtrol.com/pub/en/support Downloads ftp://ftp.comtrol.com/html/ES7106_VB.htm Web Site http://www.comtrol.com Phone 763.957.6000...
