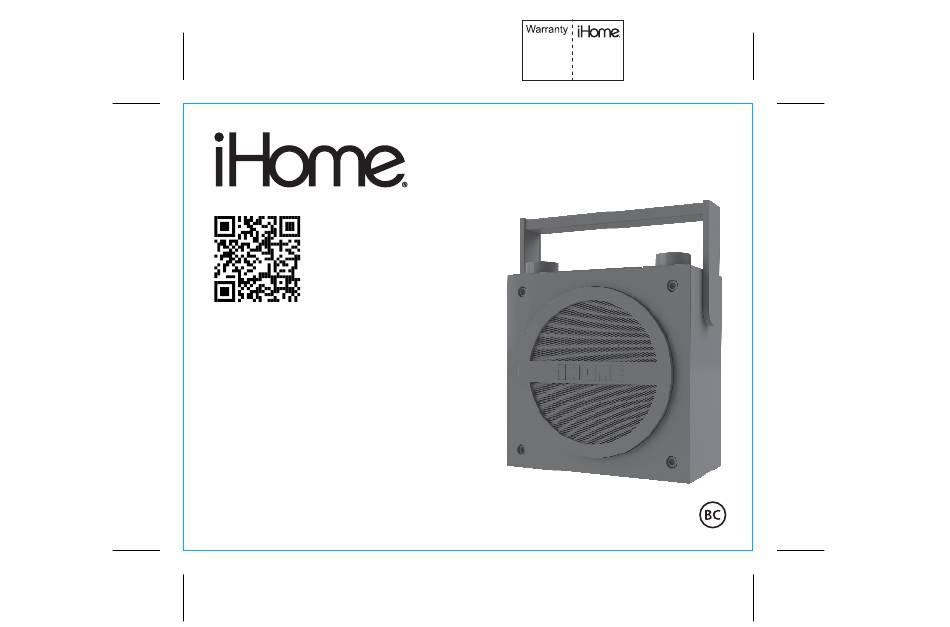

- Page 1 IB r4 Size: 153mm x 120mm Printing color: Black NOV 29, 2013 Model: iBN4 (USA) iBN4A (Canada) NFC Bluetooth Wireless Boombox with FM Radio and Rechargeable Battery instruction manual...
- Page 2 Introduction Thank you for purchasing the iHome iBN4. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device. Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic operation and care of the unit.
- Page 3 FCC Information FCC ID:EMOIBN4A FCC Radiation Exposure Statement IC:986B-IBN4A This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions:...
-
Page 4: Table Of Contents
iBN4 Table of Contents Meet Your iBN4......................1-2 Setting Up the Unit/Charging the Unit ..................3 Using Bluetooth: Pairing And Playing Your Device Using NFC ...........4 Using Bluetooth: Pairing Your Device Manually................5 Playing Audio Via Bluetooth....................6 Playing Audio Via Aux-in/ Playing Audio Via Aux-out ..............7 FM Radio/ Using FM Radio in Other Countries..............8 Resetting the Unit ......................9 Internal Rechargeable Lithium-ion Battery................10... -
Page 5: Meet Your Ibn4
Sept 02, 2013 iBN4 Meet Your iBN4 NFC Antenna Volume Dial Power/Mode Dial Display Reverse/Forward/Setting Buttons Play/Pause and Pairing Button Back Bottom Line-out Jack Line-in Jack DC Jack... - Page 6 iBN4 Included • iBN4 system • 100V-240V universal AC adaptor • 3.5mm stereo audio cable The handle of the unit can be placed power adaptor audio cable in two positions, upright for carrying, or back for general use or tilt-back play.
-
Page 7: Setting Up The Unit/Charging The Unit
iBN4 Using the Setting Up the Unit The unit can be operated using the included AC adaptor or on the internal rechargeable lithium ion battery for portable use. Connect the included AC adaptor to the DC jack located on the back of the unit and connect the other end to a RESET TEST working wall outlet. -
Page 8: Using Bluetooth: Pairing And Playing Your Device Using Nfc
“PAIR” will flash on the display while the unit attempts to pair. If prompted, accept Bluetooth pairing. “iHome iBN4” should appear on your device’s menu under Bluetooth Settings. Once paired with a device, the PAIR indicator will stop flashing, the Bluetooth icon will remain and your music will play through the unit. -
Page 9: Using Bluetooth: Pairing Your Device Manually
“iHome iBN4” should appear on your device’s menu. If “Not Connected” or similar message appears, select “iHome iBN4” on the device to connect it. If your device asks for a password, enter 1234 or 0000 on the keyboard of your device. If no device is paired within 2 minutes, a tone will sound and the unit will revert to its previous mode. -
Page 10: Playing Audio Via Bluetooth
iBN4 Using the Playing Audio Via Bluetooth 1. Turn the Power/Mode Dial to the Bluetooth position (right) to enter Bluetooth mode. The Bluetooth Indicator on the display will flash and a tone will sound as the unit searches for a previously paired device, and then turn solid once a previously paired device is detected. -
Page 11: Playing Audio Via Aux-In/ Playing Audio Via Aux-Out
iBN4 Using the Playing Audio via Line-In 1. Connect one end of the included stereo 3.5mm audio cable into the line-in jack on the back of the unit and the other end into the headphone or output jack of your audio device. NOTE: The unit defaults to Line-in mode when the audio cable is connected. -
Page 12: Fm Radio/ Using Fm Radio In Other Countries
iBN4 Using the FM Radio 1. Turn the Power/Mode Dial on the unit to Radio mode (center). 2. Press the Buttons on the unit to tune in the desired station (press and hold to scan to the next clear station). 3. -
Page 13: Resetting The Unit
iBN4 Using the Resetting the Unit If the unit “locks up” or becomes unresponsive, you can reset it to factory settings. To do so, press and hold the Button and the Button TOGETHER for 8 SECONDS. A long beep will sound, indicating the unit has been reset. Note that you will need to re-pair Bluetooth devices. -
Page 14: Internal Rechargeable Lithium-Ion Battery
Internal Rechargeable Lithium-ion Battery This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead, try charging it several times. If the battery does not recharge, please contact us for repair information. -
Page 15: Consumer Product Safety Guide
Consumer Product Safety Guide IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. - Page 16 13. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. Questions? Visit www.ihome.com or call 1-800-288-2792 Toll Free 7/17/2013...
-
Page 17: Troubleshooting
Bluetooth capability on the already paired device, or take it out of range. • Make sure your device is working properly. Check your device’s manual for details on Bluetooth pairing and linking. For further information and to see the latest instructions, visit www.ihome.com/support 7/17/2013... -
Page 18: Warranty
Limited 1 Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
