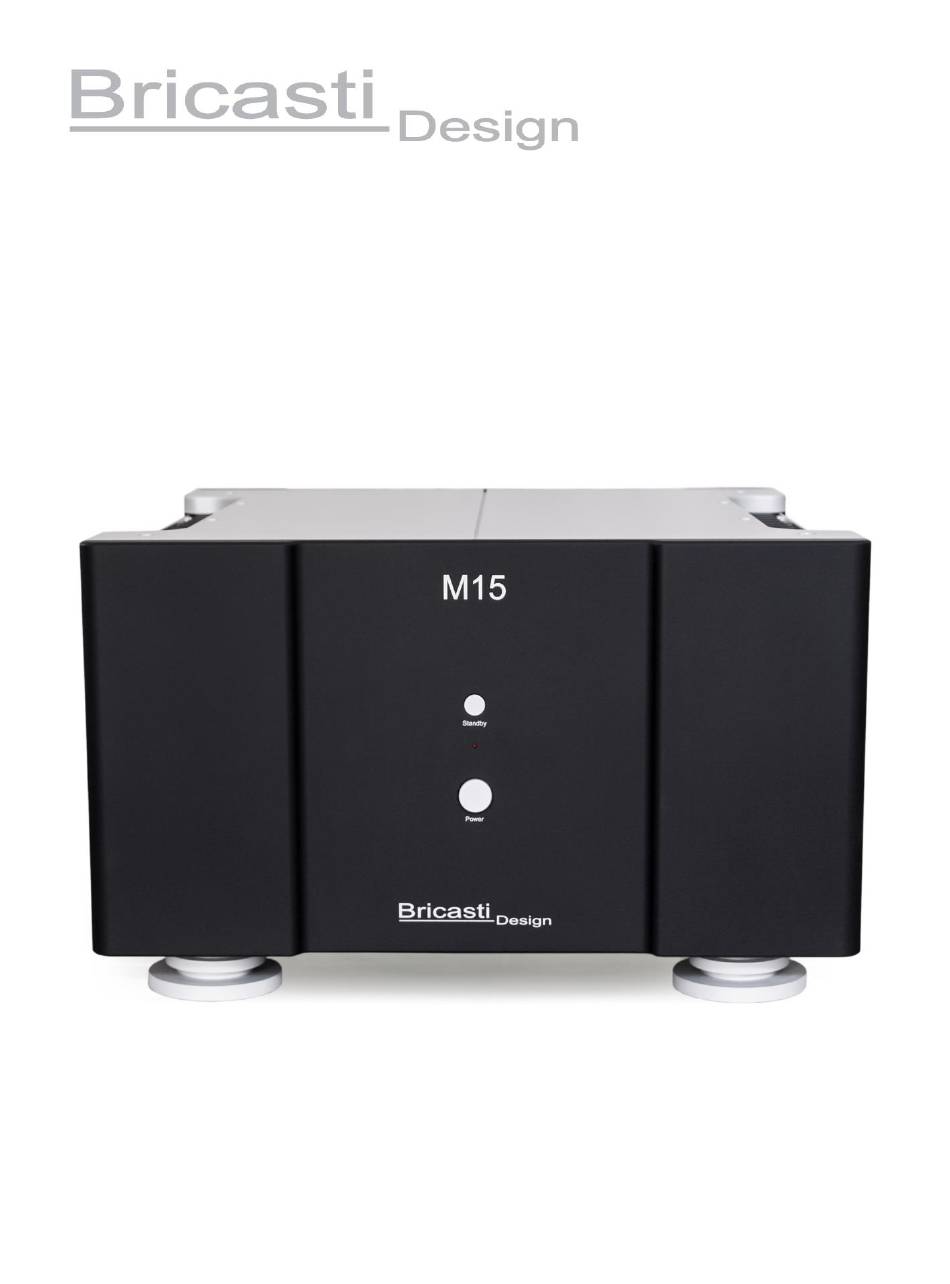

- Page 1 M15 Stereo Power Amplifier M25 Dual Mono Power Amplifier Combined User Guide 1/2/19...
- Page 3 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerous de la classe B est conforme a la norme NMB-003 du Canada. Certificate Of Conformity Bricasti Design, 123 Fells Ave., Medford MA, USA, hereby declares on its own responsibility the following products: M15/M25...
- Page 4 Introduction This is a combined M15 and M25 user guide covering theory of design and setup and use. In the future you can always find the latest version available at our web site www.bricasti.com. Congratulations on the purchase of your new power amplifier. We at Bricasti Design have set out to design the world’s finest audio products made for the professional and consumer audio markets.
-
Page 5: Unpacking And Inspection
Always use the correct AC line voltage as set by the manufacturer. Refer to the power requirements section of the manual and adhere to any power indications on the rear or bottom of the chassis. Using the incorrect AC line voltage can cause damage to your M15/M25, so please check this carefully before applying power. -
Page 6: Important Safety Instructions
Important Safety Instructions Notice! Warning! Read these instructions. To reduce the risk of fire or electrical shock do not expose this equipment to Keep these instructions. dripping or splashing water and ensure Heed all warnings. that no objects such as vases are placed on Follow these instructions. -
Page 7: Front Panel
M15/M25 Operational Overview Front Panel The front panel has 2 buttons and an LED. The larger lower button is the primary power on/off pushbutton switch, above this is a red LED power on and status indicator, and at the top a momentary stand-by switch that will set the amplifier in to an idle mode with low power consumption and then to standby with full power. -
Page 8: Setup And Operation
RF and noise from entering M15/M25 power grid. Take note that because the M15/M25 is a fully analog amplifier it utilizes linear power supplies and care should be taken to use only the power range indicated on the unit, otherwise damage may occur to the power supplies and other circuits in the amplifier. -
Page 9: Power Up/Power Down
Recommended Power Down Sequence It is recommended that you first put the M15/M25 into standby before initiating a hard power off from the large front panel AC power switch. We have taken great care in the way the amplifier behaves on power down to eliminate the possibly of noise at the outputs when power is suddenly removed but there may be a possibly that this could happen. -
Page 10: Using The Trim Control
This makes for a simple setup with the M1or other source, one only has to connect the balanced output of the M1 directly to the M15/M25 and then make any fine tune the gain at the rear of the M15/M25 to the best range. -
Page 11: Audio Performance
5 yrs limited M15/M25 Limited Warranty Bricasti Design warrants the M15/M25 against manufacturing defects for 5 years from date of purchase from an authorized Bricasti Design dealer. The warranty covers only new products purchased from a Bricasti Design dealer or Distributor. - Page 12 Copyright 12/2014- Bricasti Design Ltd.-123 Fells Ave,- Medford MA 01255 USA...
