CS3690 (Wi-Fi) Lightweight Data Terminal Quick Guide

Notice

1) A standard packing includes a terminal, a USB cable and a CD (containing software and
electronical manuals). Optional accessory: AC/DC adaptor for battery charge.
2) Use dry and soft cloth to clean the terminal.
3) The terminal provides a variety of wireless communication modes, and supports batch data
mode and U disk mode. It is suggested to read the user manual in details before use.

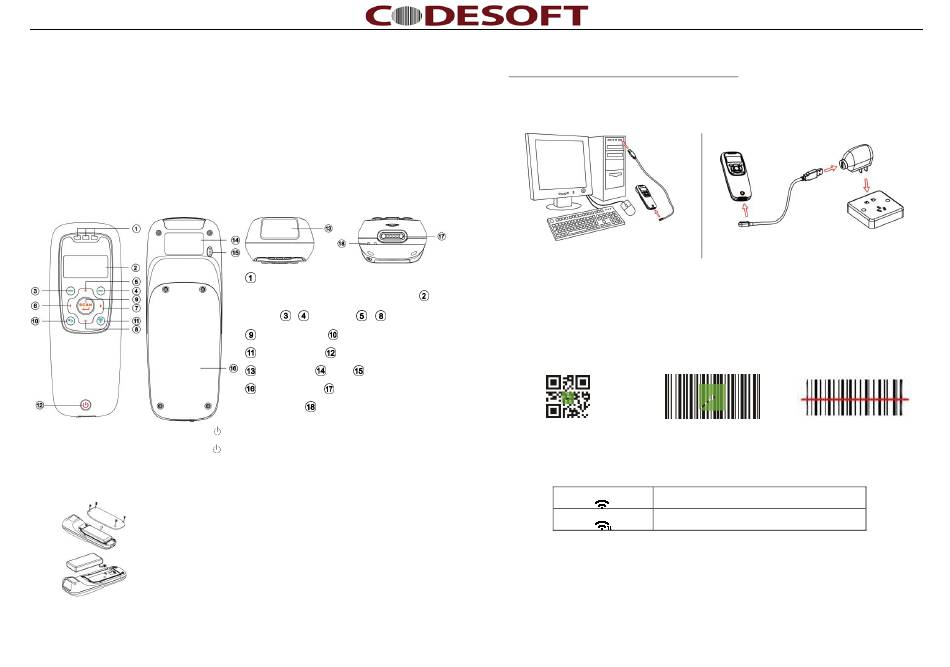

Parts of the terminal

Power on the terminal: Press the power key
Power off the terminal: Press the power key

Replace battery

1) Remove the 4 screws from the battery cover (one at a time).
2) Load the battery while sliding it with the connection on the battery
pack on the terminal body.
3) Place back the battery cover, screw in the 4 screws to tighten the
terminal and the battery cover.
Note: 1. More details refer to User Manual. 2. For better readability, please print this document with laser printer. 3. Version: CS3 690(Wi-Fi)_QG_EN_V1.1.
Blue LED (Wi-Fi power), Green LED (Decode
success), Red LED (Charging indicator)
~ ~
screen Soft keys Navigation keys
Scan/Select key Return key
Wi-Fi on/off key Power/Sleep key
Scan window Label Beeper
Battery cover Magnetic USB port/Battery
charging port Hook for neck/wrist strap
for two seconds.
for two seconds.

Charge battery

1) Please charge the battery before the first time of use. The charging indicator (red LED) turns on
when the charging is in process. When the charging process completes, the red LED turns off.
2) The terminal uses a 1900 mAh Lithium-ion battery. The charging time is 4 hours for fully charged
with charging current of 500 mA.
Charge battery by a PC

Enter barcode scan status to scan

OLED
Power on the terminal, and then press Scan Key once. When scanning the barcode, please adjust
terminal and the barcode in a certain distance, and green LED indicator is located in the core of the
barcode or the scan line crosses the barcode. If read successfully, the barcode data will be displayed
on the screen.

Establish Wi-Fi communication

Icon indication for Wi-Fi
The following figures show the steps how to make the terminal (Client) connect and communicate with
the host (Server).
Step 1: Please make sure that the Host (Server) has connected with the wireless router successfully.
Charge battery by an AC/DC adapter
Wi-Fi is on.

Communicating with a Wi-Fi network.
