AL5720 Mini-Dock
User Guide
Draft Version 0.1
0.0 PURPOSE
This document provides operational guidance for the AL5720
1.0 OVERVIEW
The AL5720 allows Ultra-wideband (UWB) wireless data transfer and interoperability
with other Certified Wireless USB devices. Certified Wireless USB is the new wireless
extension to USB, combining the speed and security of wired USB technology with the
connivance and ease-of-use of wireless. Certified Wireless USB supports robust high-
speed wireless connectivity by utilizing the common WiMedia UWB radio platform
developed by the WiMedia Alliance. UWB technology offers a solution for high
bandwidth, low cost, and low power consumption. Certified Wireless USB is the first
high-speed wireless personal interconnect technology to meet the needs of multimedia
consumer electronics, PC peripherals, and mobile devices. Certified Wireless USB
preserves the functionality of wired USB while eliminating the tangle of cable
connections.
The AL5720 Mini Docking Station provides connectivity for a standard DVI/VGA Video
Monitor, Stereo audio inputs/outputs and two USB 2.0 devices. This connectivity allows
the user to establish a wireless desktop for a UWB enabled computer.

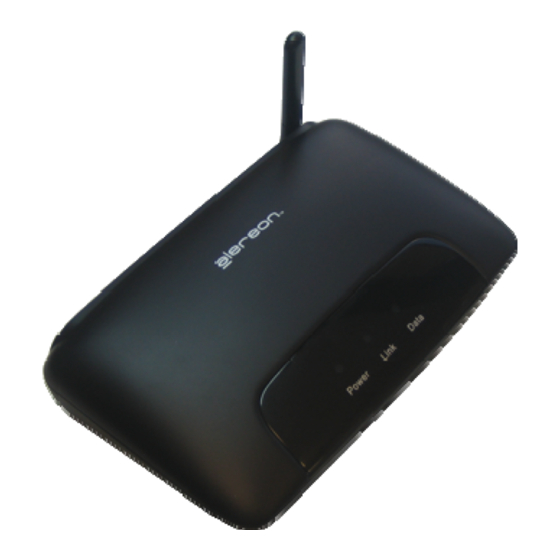

Figure 1 AL5720 Mini Docking Station
1
Alereon AL5720 UG
Rev. 0.1
Advertisement
Table of Contents
Summary of Contents for Alereon AL5720
- Page 1 USB while eliminating the tangle of cable connections. The AL5720 Mini Docking Station provides connectivity for a standard DVI/VGA Video Monitor, Stereo audio inputs/outputs and two USB 2.0 devices. This connectivity allows the user to establish a wireless desktop for a UWB enabled computer.
- Page 2 6.0 SETUP Perform the following steps to get your AL5720 Mini Docking Station up and running: 1. Remove all items from the packaging and inspect them for damage. If any appear to have been damaged in shipping, please contact Alereon Technical Support via this web form: http://www.alereon.com/contact-us/...
- Page 3 7. Following the remaining interactive software instructions to configure the hub for operation. After configuration is completed remove the USB cable connecting the Mini Docking Station to the PC. 8. Once you have finished these steps, your AL5720 Mini Docking Station should be working. 7.0 OPERATIONS For details on how to use the Certified Wireless USB software, please see the Alereon Software Guide.
- Page 4 9.2 Power LED Does Not Light Up; Hub Not Working If the LED indicators do not light up, your Mini Docking Station may not be powered up. Verify that the AL5720 Mini Docking Station power adapter is plugged firmly into a power Alereon AL5720 UG...
- Page 5 Alereon's product could create a situation where personal injury, death, or severe property or environmental damage may occur.
