SET UP GUIDE
Package:
HC-PACK2-UIWRLSII-VW270 Quality Home
Cinema Package (In Wall / Shelf 5.2)
Thank you for purchasing your home cinema products from AWE Europe
Ltd. This quick set up guide is here to assist you get your system
connected and working with the help of your installer!
Please note: It is essential that a trained professional comes to check
your work and correctly install the system.
1 |
P a g e
V1.2
Advertisement
Table of Contents
Related Manuals for AWE HC-PACK2-UIWRLSII-VW270
Summary of Contents for AWE HC-PACK2-UIWRLSII-VW270
- Page 1 HC-PACK2-UIWRLSII-VW270 Quality Home Cinema Package (In Wall / Shelf 5.2) Thank you for purchasing your home cinema products from AWE Europe Ltd. This quick set up guide is here to assist you get your system connected and working with the help of your installer! Please note: It is essential that a trained professional comes to check your work and correctly install the system.

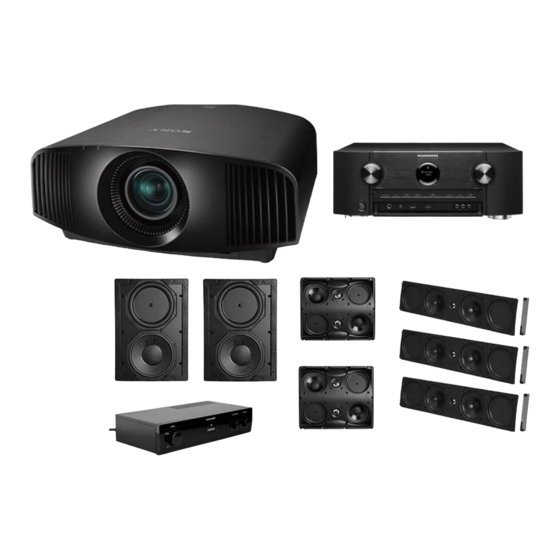

- Page 2 Package: HC-PACK2-UIWRLSII-VW270 Quality Home Cinema Package (In Wall / Shelf 5.2) Open package and check you have the following: VPL-VW270Sony 4K projector Marantz SR5014 4K Ultra HD AV Receiver with HEOS Built-In UIWRLSII UIWRSSII IWSub10/10 KASA500 Kinetik KLIC-SP2-50 2 Core LSZH Speaker Cable 50m Cardboard Pull Box...
- Page 3 Once the Projector is installed and cables are all connected, unpack the speakers and place them in the correct position Connect the speaker cable and subwoofer cable to each speaker P a g e V1.2...
- Page 4 Connect the speaker cables to the correct input as shown in the diagram below Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to this unit, and be sure to connect the channels and polarities correctly. Peel off about 10mm of sheathing from the tip of the speaker cable, then twist the core wire tightly Turn the speaker terminal counter clockwise to loosen it...
- Page 5 Connect the HDMI cable as shown in the diagram below Connect the Power cable to the AVR and follow the on screen set up instructions P a g e V1.2...
