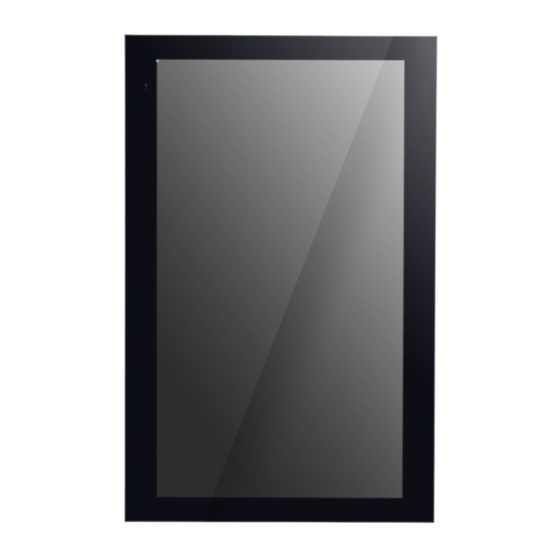

- Page 1 OWNER’S MANUAL LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 86XE3FS www.lg.com Copyright © 2019 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTION ....3 - Precautions When Installing the Product ....4 - Precautions for the AC Adapter and Power ..6 - Precautions When Moving the Product ....7 - Precautions When Using the Product ....8 - Precautions When Cleaning the Product ..10 - Precautions When Experiencing Image Sticking ................11 - Precautions When Using the Remote... -
Page 3: Safety Precaution
WARNING: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. SAFETY PRECAUTION The Safety Precautions are intended to prevent unexpected danger or harm by helping the user to use the product safely and for its intended purpose. -
Page 4: Precautions When Installing The Product
Precautions When Installing the Product WARNING Failure to observe these warnings may result in serious injury or death. • Do not place the product close to heat sources such as fires and stoves. - There is a risk of fire. •... - Page 5 CAUTION Failure to observe these instructions may result in minor injury or damage to the product. • Set to [Screen Off & Backlight (Outdoor mode)] when installing outdoors. - Enable the [Outdoor mode] to reduce the risk of the internal humidity and condensation. - When operating in below zero temperature, the enclosure may not work for up to one hour to raise the internal temperature of the enclosure.
-
Page 6: Precautions For The Ac Adapter And Power
Also, avoid touching the power plug immediately after pulling it out of the wall outlet. - This may cause electric shock. • Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc. - The use of non-approved products may cause fire or electric shock. •... -
Page 7: Precautions When Moving The Product
• Be careful not to step on or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter. Be careful not to damage the power cord or AC adapter with sharp objects. - Damaged power cords may cause a fire or electric shock. •... -
Page 8: Precautions When Using The Product
CAUTION Failure to observe these instructions may result in minor injury or damage to the product. • Do not discard the delivery box with the original packaging. - Put the product in the box when carrying it. • Lifting, moving or unpacking the product require at least four or more people due to the weight of the product. - Failure to do so may result in damage to the product or personal injury. - Page 9 CAUTION Failure to observe these instructions may result in minor injury or damage to the product. • Do not use or store the product near inflammables. - This may result in fire or explosion. • Take a break to protect your health and vision when using the product for long periods of time. •...
-
Page 10: Precautions When Cleaning The Product
Precautions When Cleaning the Product WARNING Failure to observe these warnings may result in serious injury or death. • Do not spray water directly onto the product and do not use inflammable materials such as thinner or benzene to wipe the product. - Doing so may cause fire or result in electric shock. -
Page 11: Precautions When Experiencing Image Sticking
Precautions When Experiencing Image Sticking • Displaying a still image for a prolonged period of time may cause damage to the screen, resulting in image sticking. • Use a screen saver when using the monitor for a prolonged period of time. •... -
Page 12: Assembly And Preparation
SuperSign Software & Manual - Downloading from the LG Electronics website. - Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model. • The warranty will not cover any damage caused by using the product in an excessively dusty environment. -
Page 13: Product Contents
Product Contents The image may be different according to the model. Front IR Receiver Power Indicator IR Receiver: This is where the unit receives signals from the remote control. • • Power Indicator: This Indicator lights up red when the display operates normally (on mode). If the display is in sleep mode (in Power Saving mode), this indicator changes color to amber. -
Page 14: Installing In Landscape Orientation
Installing in Landscape Orientation To install in landscape orientation, rotate the screen clockwise 90 degrees while facing it from the front. IR Receiver IR Receiver... -
Page 15: Pixel Sensor And Illuminance Sensor
Pixel Sensor and Illuminance Sensor Pixel Sensor / Illuminance Sensor • Illuminance Sensor: Adjusts the screen brightness by measuring the amount of light. -
Page 16: Installing On A Wall
Installing on a Wall For proper ventilation, make sure the product is installed at least 100 mm away from the walls on every side. Consult a professional installation company near you for details on installation. 100 mm 100 mm 100 mm 100 mm •... -
Page 17: Safety And Precaution Guide For Installation
Safety and Precaution Guide for Installation Direct Sunlight • While powered off, make sure the device is not exposed to direct sunlight for a prolonged period. - Protect the display with cloth or a box when storing the device after it has been powered off. - This can prevent faults such as black spots, creases, and yellowing. -
Page 18: Remote Control
REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching terminals to the labels inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. - Page 19 Selects the Picture Mode. (HOME) Activates the Launcher. Enters the White Balance menu. (SETTINGS) Accesses the main menus or saves your input and exit menus. SuperSign menu key. Navigation Buttons Scrolls through menus or options. Selects menus or options and confirms your input. (BACK) Allows you to move back one step in the user interaction function.
-
Page 20: Making Connections
MAKING CONNECTIONS You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a PC Some of the cables are not provided. -
Page 21: Power Connection
Power Connection • Prepare the waterproof power cable for 30 Amp (10 AWG). • Check power cable color connection to the circuit breaker. • Connect the power cable to the outside through the hole for power cable only. • Cord grip within hole for power cable can prevent to enter water or dust. Cord Grip Country Live... -
Page 22: External Device Connection
External Device Connection Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode. Some of the cables are not provided. For the best picture and sound quality, connecting external devices to your monitor using HDMI cables is recommended. When Installing a Media Player Internally... - Page 23 WARNING • When mounting the back cover, be sure to use the proper torque for tightening. • The torque exceeding the proper level could damage the PEM nut or screw. - Proper torque: 5-10 kgf·cm , 0.5-1 N·m, 4-9 lbs·in...
-
Page 24: Using The Input List
NOTE • For the best image quality, using the monitor with HDMI connection is recommended. • To comply with the specifications of the product, use a shielded interface cable with ferrite core, such as a DVI-D cable. • If you turn the monitor on when the set is cold, the screen may flicker. This is normal. •... -
Page 25: Troubleshooting
TROUBLESHOOTING No image is displayed. Problem Action Is the product power cord connected? • Check if the power cord is correctly plugged into the power outlet. • Check whether the circuit breaker has been connected properly. The switch of the circuit breaker must be set to on (red). •... - Page 26 The screen image looks abnormal. Problem Action Is the screen position wrong? • Check if the graphics card resolution and frequency are supported by the product. If the frequency is out of range, set to the recommended resolution in the (Control Panel → Display → Setting) menu. (The settings may differ depending on your operating system.) The screen is displayed abnormally.
- Page 27 The audio function does not work. Problem Action No sound? • See if the audio cable is connected properly. • Adjust the volume. • See if the sound is set properly. Sound is too dull. • Select the appropriate equalizer sound. Sound is too low.
- Page 28 CAUTION • Image sticking does not occur when using constantly changing images but may occur when using a fixed image for an extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood of image sticking occurring when using a fixed image.
-
Page 29: Product Specifications
Operating Humidity 5 % to 100 % Storage Temperature -20 °C to 60 °C Storage Humidity 5 % to 100 % 86XE3FS LCD screen Pixel Pitch 0.4935 mm (H) x 0.4935 mm (V) Power Rated power AC 200-240 V ~ 50/60 Hz 10.0 A AC 100-240 V ~ 50/60 Hz 20.0 A... - Page 30 HDMI/ DVI-D/ DisplayPort (PC) Support Mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1280 x 720 44.772 59.855 1366 x 768 47.712 1280 x 1024 63.981 60.02 1680 x 1050...
- Page 31 NOTE • When using HDMI/ DVI-D/ DisplayPort inputs, PC and DTV resolutions can be adjusted in the Input Label. • Vertical frequency: The product display functions by the screen image changing dozens of times every second like a fluorescent lamp. The vertical frequency or refresh rate is the number of times the image display is repeated per second.
-
Page 32: Licenses
LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. - Page 33 Make sure to read the Safety Precautions before using the product. The model and serial numbers of the SET are located on the back and one side of the SET. Record it below should you ever need service. MODEL Temporary noise is normal when powering ON or OFF this device.
