TT-4501R
Model
Features
1. Power supply: 12VDC input;
2. Plug & Play, real time transmit HD-CVI/TVI/AHD/CVBS signals, more clear, more stable;
.3. Excellent Design for heat rejection: Metal case, superior heat rejection performance, more stable;
4. Connectors: Male BNC connectors for coax, and with push-pin terminals.
Overview

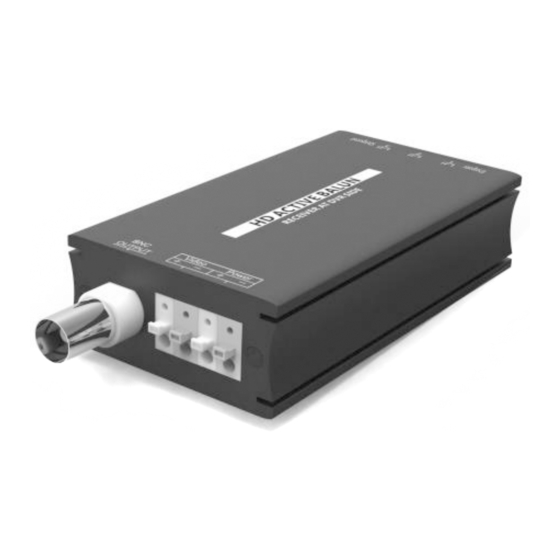

TT4501R is single channel HD active UTP Video Receiver over Cat5e/6, compatible with HD-CVI/TVI/AHD/CVBS analog cameras. It is widely applied to the
field of CCTV Video Transmission.
HD Picture
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for epcom TITANIUM TT-4501R

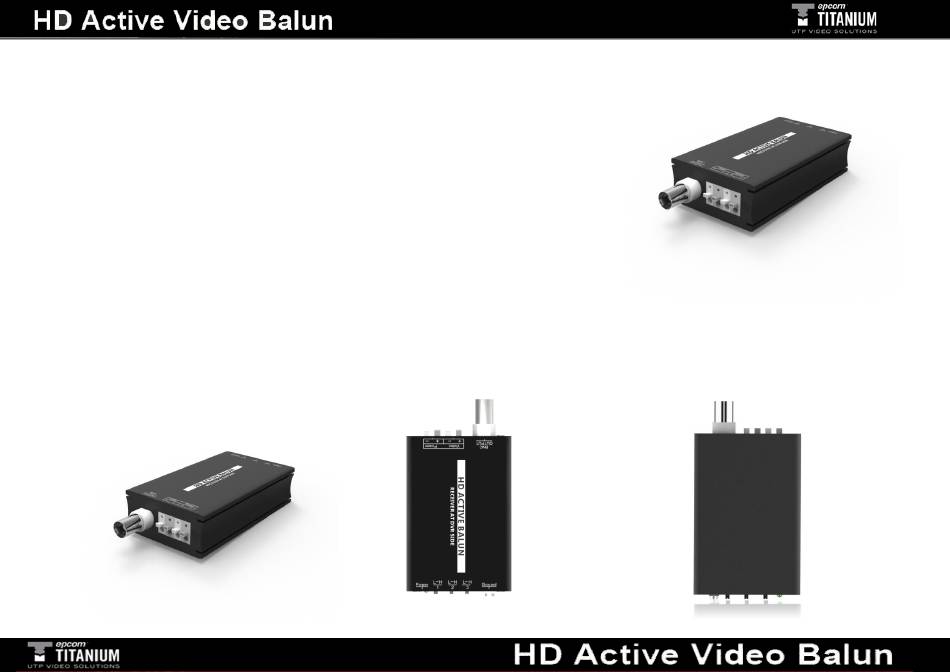

- Page 1 TT-4501R Model Features 1. Power supply: 12VDC input; 2. Plug & Play, real time transmit HD-CVI/TVI/AHD/CVBS signals, more clear, more stable; .3. Excellent Design for heat rejection: Metal case, superior heat rejection performance, more stable; 4. Connectors: Male BNC connectors for coax, and with push-pin terminals.
- Page 2 Installation steps 1.Before installation, please check the devices and accessories as blow included in the package; If not, please contact with the manufacturer directly. 1) TT4501R 2) User Manual 2. Please follow the below steps for installation. 1) Power off, make sure no damage for the device； 2) Connect TT4501R to DVR, Male BNC of TT4501T to the female BNC of Camera, the other side of TT4501T to power connector and UTP cat5e/6 ；...
- Page 3 Trouble shooting If something has gone wrong with the device, please follow up the below steps to solve the problems: 1) Check whether the connection is well or not according to the user manual； 2) Check whether the UTP cable connect well or not, with open circuit or not, and the pin connection table of transmitter and receiver right or not； 3) Check the transmission distance is no more than the max transmission distance；...
- Page 4 Application Diagram...
