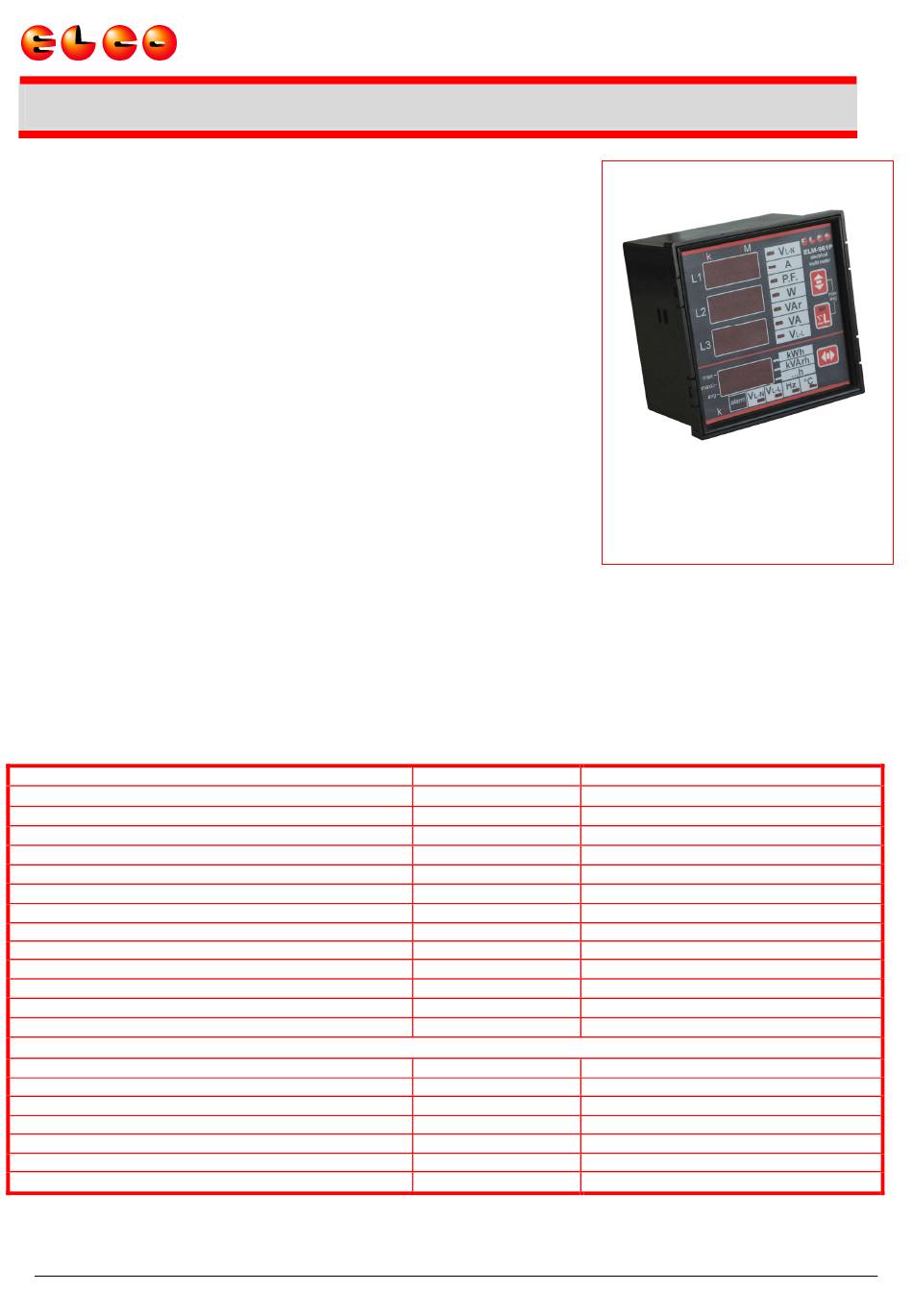

INSTRUCTION MANUAL
IM441-U v0.6

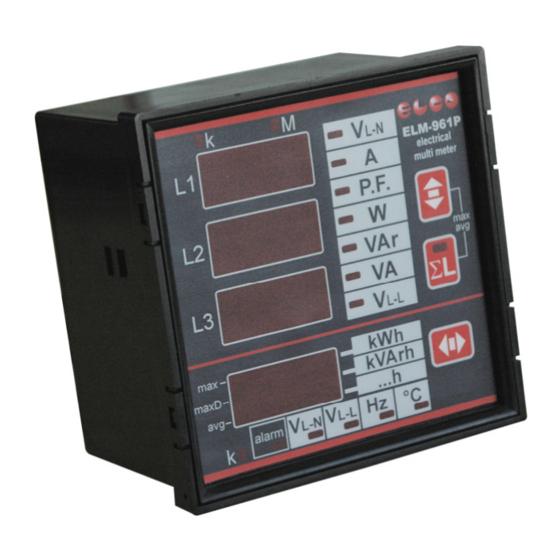

ELM-961
GENERALITY
These digital multimeters series allow to monitor all the electrical parameters
present on a distribution line. The local display of 30 electrical parameters is
carried out by 4 display with red LED guaranteeing a good and contemporary
reading of more measures. A simple front panel completes the intuitive
selection of several electrical parameters, with a great quantity of information.
These instruments, over of the instantaneous measures, display the
maximum peak of the main parameters (maximum peak and maximum
demand).
The presence of the serial port communication EIA485 (option) allows the
connection in network of more instruments to realize centralized measure
networks.
These multimeters replace in a unique device, all the functions of voltmeters,
ammeters, energy meters, cosphimeters, wattmeters, varmeters, frequency
meters permitting a great economic saving, a reduction of dimension and the
wiring energy and a simplification in the purchase and management of the
instruments because this is a model usable at all of need of local measure in
the electrical panel, machine, etc.
OPTIONS
- internal CT
- digital output (in alternative to the serial port)
- serial port (in alternative to the digital output)
- power supply different from standard version
- current input 1A
MEASURED PARAMETERS
parameters
phase and three phase voltages
phase to phase and three phase system voltages
phase and three phase currents
phase and three phase power factors
phase and three phase active powers
phase and three phase system reactive powers
phase and three-phase system apparent powers
frequency
temperature
three phase system active energy
three phase system reactive energy
three phase system apparent energy
hours counter
peak value (maximums):
maximum phase voltages
maximum phase currents
maximum three-phase powers
maximum average phase currents (maximum demand)
maximum average three-phase powers (maximum demand)
average phase currents
average three-phase powers
ELM-961
ELECTRICAL MULTIFUNCTION METER
instruction manual
unit of measurement
[V-kV]
V
[V-kV] V
[A-kA] A
PF
[W-kW-MW]
W
[VAr-kVAr-MVAr] VAr
[VA-kVA-MVA] VA
[Hz] Hz
[°C] T
[kWh]
Σ kWh
[kVArh]
Σ kVArh
[kVAh]
Σ kVAh
[hr] h
[V-kV] V
[A-kA]
A
[W-VAr-VA (k-M)]
Σ W
[A-kA] I
[W-VAr-VA (k-M)]
Σ W
[A-kA] A
[W-VAr-VA (k-M)]
Σ W
IM441-U v0.6
initial identification
V V
L1-N L2-N L3-N
V V
L1-L2 L2-L3 L3-L1
A A
L1 L2 L3
PF PF
L1 L2 L3
W W
L1 L2 L3
VAr VAr
L1 L2 L3
VA VA
L1 L2 L3
L3
V
L1-N max L2-N max
A
L1 max L2 max
Σ VAr
max max
I
L1 max (avg) L2 max (avg)
Σ VAr
max (avg) max (avg)
A
L1 avg L2 avg
Σ VAr
avg avg
Σ V
L-N
Σ V
L-L
Σ A
Σ PF
Σ W
Σ VAr
Σ VA
V
L3-N max
A
L3 max
Σ VA
max
I
L3 max (avg)
Σ VA
m x (avg) a
A
L3 avg
Σ VA
avg
