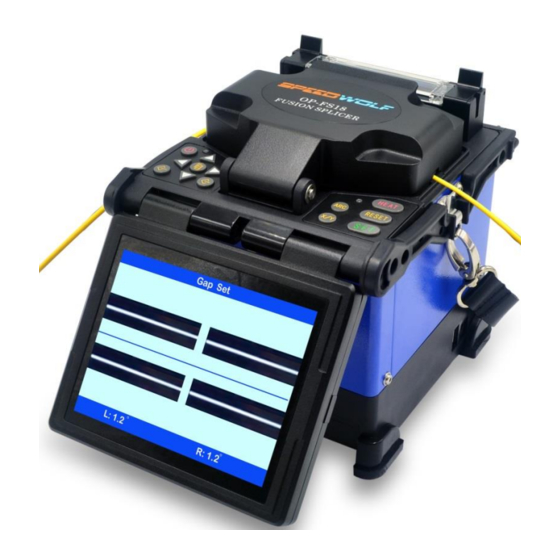

Speedwolf FS18 User Manual

Optical fiber fusion splicer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SPEEDWOLF
Optical Fiber Fusion Splicer
FS18
User's Manual
Shenzhen SPEEDWOLF Technology CO.,LTD.
Version 2.00(201801)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS18 and is the answer not in the manual?

Questions and answers

AdeaFiber
May 21, 2025

Hi, Im interested to by a speedwolf fusion splicer, and can you help me FS18-D-1 and FS18-C-3

0

Related Manuals for Speedwolf FS18

Summary of Contents for Speedwolf FS18

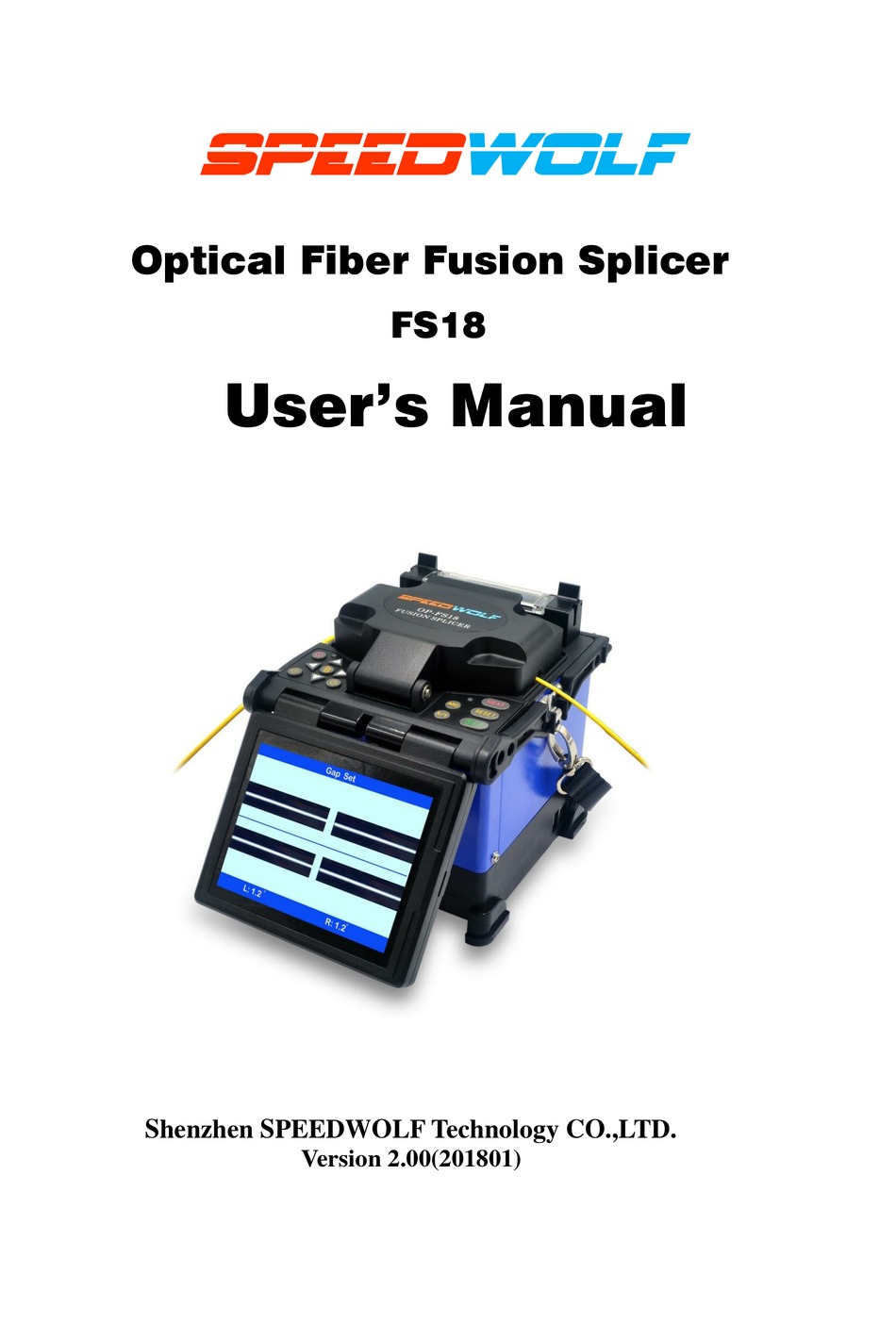

  • Page 1 SPEEDWOLF Optical Fiber Fusion Splicer FS18 User’s Manual Shenzhen SPEEDWOLF Technology CO.,LTD. Version 2.00(201801)
  • Page 2 Warning: Ignore the warning, non-proper use of fusion splicer could lead to fatal and serious injury. 1. The input voltage of this model of machine is definite; please do not use the voltage outside the scope. Please use the correct AC and DC power supply. 2.

  • Page 3: Table Of Contents

    Content 1. Brief Introduction ............... 1 1.1 Specifications ......................1 1.2 Configuration of fusion splicer ................2 1.3 Parts Name of fusion splicer ..................3 1. 4 Descriptions of the Keyboard ................. 4 2. Basic operation ..............5 2．1 Descriptions of the power modules............... 5 2．2 AC operation .......................

  • Page 4: Brief Introduction

    —FS18 Fusion Splicer User’s Manual 1. Brief Introduction Shenzhen SPEEDWOLF Technology CO.,LTD. specializing in the production of optical fiber fusion splicer, optical fiber cleaver, OTDR, light source, optical power meter, and optical fiber fixture, and other optical communication instrument high-tech enterprises. Company production of...

  • Page 5: Configuration Of Fusion Splicer

    Cooling tray 2 pair Spare Electrodes 1 pc User Manual CD 1 pc Test Report 1 pc Cleaning brush Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 6: Parts Name Of Fusion Splicer

    1.3 Parts Name of fusion splicer Windshield cover Heater Power switch Key board Power Module Left Keyboard Right Keyboard Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 7: Descriptions Of The Keyboard

    Reset of motor Reset of motor Invalid Further propulsion/start Start to fusion Invalid Invalid fusion Discharging Discharging Invalid Invalid Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 8: Basic Operation

    2．1 Descriptions of the power modules FS18 Fusion Splicer uses 2 in 1 power module design, during the work, the Fusion Splicer can be supplied by the polymer lithium ion battery separately; or use AC adapter for electricity supply;...

  • Page 9: 2．3 Battery Supply Operation

    When the power module is in the charged state, the four battery capacity indicator (red) lights on the left side will be bright, which only represents the Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.
  • Page 10 10.3V), the splicer will automatically alarm and lock the keyboard to disable input. The user should press until the Fusion Splicer Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.
  • Page 11 <6>When charging the battery with the special battery charger, immediately disconnect the charger when the battery is fully charged. Huge damage may Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 12: Turn On And Turn Off

    . When all of the motors return to the initial position, the screen shows the reset menu. Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 13: Display Brightness Control

    2.6 Cover fiber protection sleeve The installation of fiber protection sleeve Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 14: Preparation Of Fiber End-Face

    (Notes: Please use the alcohol with purity more than 99 %.) Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.
  • Page 15 ● Notes: The clean cross-section of fiber cannot touch other things. Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 16: Place Fiber

    2.8.4 Place another optical fiber according to the above steps. 2.8.5 Close shielding cover. 3．Check and Maintenance Critical cleaning points and maintenance checks are described below. Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 17: Cleaning V-Grooves

    <1> If contaminants are present on the clamp chips, proper clamping may not occur, resulting in poor quality splices. The fiber clamp chips should be frequently Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 18: Cleaning Wind Protector Mirrors

    Therefore, clean both of them at regular intervals. Otherwise, dirt may accumulate and become impossible to remove. Cleaning Objective Lenses： Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 19: Replace Electrodes

    , now the machine is turned off. <2> Remove the old electrodes and Method for tearing: Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 20: Set Calendar

    This function sets the date and time in the calendar incorporated in the splicer. <1> In the［Maintenance Men1］Menu, press and move the cursor to select the [ Calendar ] Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 21: Change The Spare Lithium Battery Pack

    4. 2 Remove the old battery Remove the lithium battery pack from the power module of the Fusion Splicer; Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 22: Power Supply

    “CHARGE” LED on AC adapter blinks during battery recharge Atmospheric temperature is too high (more than 50 degrees C), or the battery ● Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 23: Addenda A: Summary Of Quick Operating

    [Arc Calibration]. Discharge calibration automatically starts. The user is recommended to repeatedly prepare and place fiber in discharge Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.
  • Page 24 4. Remove the tube from the heater when the heater is cool. The whole process Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.

  • Page 25: Addenda B: Guarantee Period And Limits

    <1> Your full name, section, division, company, address, phone number, fax number and e-mail address. <2> Model name and serial number of the splicer <3> Problems encountered Shenzhen Speedwolf Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China If you have any question,please contact us directly for help,Email: speedwolf@speedwolf.
  • Page 26 The publication of information in thisdata sheet does not imply freedom from patent or otherprotective rights of SPEEDWOLF or others. Further detailsare available from any SPEEDWOLF sales representative. Contact SPEEDWOLF Shenzhen SPEEDWOLF Technology Co., Ltd Address:A-14,Haide Building, Nanxin Road Nanshan District Shenzhen,China .
