HAMPTON BAY GSS00224BW Use And Care Manual

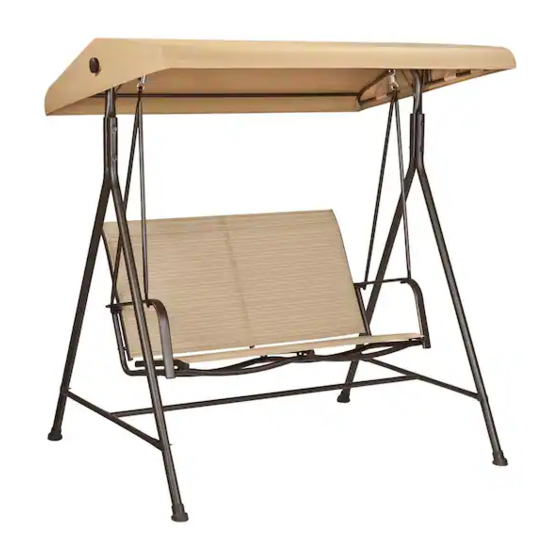

2 person steel sling swing with canopy
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item # 1002 060 499
Model # GSS00224BW
USE AND CARE GUIDE
2 PERSON STEEL SLING SWING WITH CANOPY
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this swing. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSS00224BW and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY GSS00224BW

Summary of Contents for HAMPTON BAY GSS00224BW

  • Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Warranty

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Safety Information ............2 Hardware Included ..............3 Product Caution ..............2 Package Contents..............4 Safety Warnings ..............2 ................ Warranty ................ 2 .

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Top bar Front leg Back leg Back support bar Seat Back Side bar & short swing pipe Long swing pipe Curved bar Support bar Canopy Screw knob Ground bumper...
  • Page 5 Assembly Assembling the swing frame Attach two sets of the legs (B & C) to the top bar (A) using M8x95 combination bolts, washers and nuts (AA). Attach the two side bars (H) to the legs (B & C) using M6x50 combination bolts, washers and nuts (DD). Attach the back support bar (D) to the back legs (C) using M6x50 combination bolts, washers and nuts (DD).
  • Page 6 Assembly (continued) Attaching the seat and back to the arms Attach the seat (E) to the arms (G) using M8x40 combination bolts (BB). Attach the back (F) to the arms (G) using M6x65 combination bolts, washers and nuts (CC). NOTE: Fully tighten all bolts using the hex wrench (GG) and the wrench (HH).
  • Page 7 Assembly (continued) Attaching the long swing pipes and the short swing pipes to the arms Attach the long swing pipes (I) and the short swing pipes (H) to the arms (G) using M6x50 combination bolts, washers and nuts (DD). Connect the top of the two swing pipes (H and I) by using the hooks (FF). Once all of the bolts are in place, fully tighten the bolts.
  • Page 8 Assembly (continued) Attaching the seat to the swing frame Attach the assembled seat frame to the swing frame using the hooks (FF).
  • Page 9 Assembly (continued) Assembling the top frame Attach the support bars (K) to the curved bars (J) using M5x30 bolts (EE). Tighten all of the bolts on the top frame before placing the canopy. NOTE: Please pay attention to the direction of the top curved bars (J). Velcro HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 10: Care And Cleaning

    Assembly (continued) Attaching the top frame to the top bar Attach the top frame to the top bar (A) using the screw knobs (M) on both sides. Adjust the angle of the top frame and fully tighten the screw knobs (M) in the clockwise direction. Care and Cleaning For best results, clean the swing with a damp cloth and dry thoroughly.
  • Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
