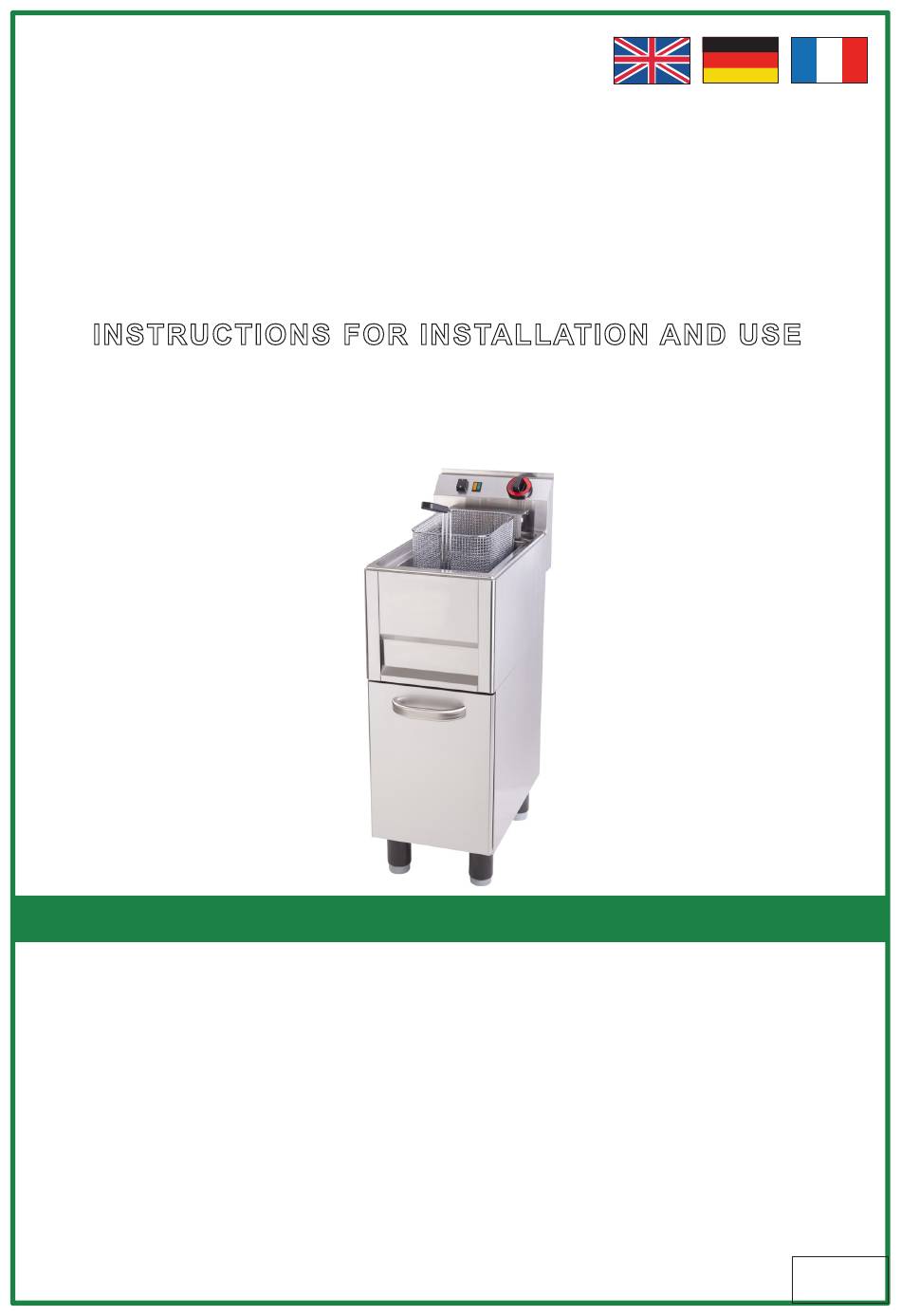

INSTRUCTIONS FOR INSTALLATION AND USE DIE GEBRAUCHS-, UND INSTALLATIONSANWEISUNG NOTICE D’INSTALLATION ET D’EMPLOI FRYERS FE - 30 EL / FE - 30 ELT / FE - 60 EL / FE - 60 ELT FE - 66 ELT / FE - 31 ELT / FE - 61 ELT / FE - 31/13 ELT FE - 61/13 ELT Date: 2017...
DECLARATION OF A STANDARDS CONFORMITY The producer confi rms that the devices agree with 2004/108/ES, 2006/95/ES standards, rule nr. 616/2006 sb., 17/2003 sb. and with relevant goverment orders. Instalation must be done with respect to valid standards. Attention, the producer refuses any responsibility in case of direct or indirect damages which are caused due to wrong instalation, incorrect intervention or modifi...
Page 4
PLACEMENT The device must be instalated in well ventilated room what is necessary for regulation of the function of the device (technician must go by valid standard (EN..). If the device is situated close to the wall or if it is in contact with the furniture walls, these walls must resist the temperatures ranging to 90°C.
Page 5
CONNECTION OF THE ELECTRIC CABLE TO THE ELECTRICITY Instalation of electric feeder - This feeder must be separetely protected by a safety fuse according to the specifi c electric stream which depends on the wattage of the instaled device. Check the wattage on the label at the back of the device.
Page 6
NSTRUCTION FOR USE Attention!Before the fi rst use of the device you must remove protection foil from all surfaces and wash the device with water with detergent. Than splash it with clean water. Use the device under supervision. Never use the device without oil or if the level of the oil is lower then min. line - danger of fi re. If the oil is dirty or you use the oil longer time it may cause boiling over.
CLEANING AND MAINTENANCE ATTENTION! The device cannot be cleaned by direct or pressure water. Clean it daily. Daily maintenance keeps longer useful life and effi ciency of the device. Before cleaning make sure to have disconnected the device from electricity. Always switch off the main feeder to the device. Stainless parts wash with moist cleaning cloth and non abrasive detergent than dry it by the cloth.
DIE NORMENÜBEREINSTIMMUNGSDEKLARATION Der Produzent erklärt, daß die Geräte in einer Übereinstimmung mit den Vorschriften der 2004/108/ES, 2006/95/ ES dem Gesetz Nr. 616/2006 sb., 17/2003 sb. der Sammlung und zugehörigen Regierungsverordnungen stehen. Die Installation muss mit der Absicht auf geltende Normen durchgeführt werden. Vorsicht, im Falle einer direkten oder indirekten Beschädigung, die sich auf falsche Installation, unrichtigen Eingriff...
Page 9
DIE PLATZIERUNG Es ist unbedingt notwendig, zu der Regulation der Gerätetätigkeit, daß das Milieu - der Küche -, wo das Gerät installiert wird, sehr gut belüftbar ist (im Hinblick darauf: sei der Techniker sich mit geltenden Normen (EN) richtet). Wenn die Einrichtung so plaziert wird, daß sie im Mobiliarwandkontakt stehen wird, so müssen diese einer Temperatur von 90°C wiederstehen.
Page 10
DER ELEKTRISCHE KABELNETZANSCHLUSS Die Installation der elektrischen Ankupplung - Diese Zuleitung muß selbstständig gesichert werden. Und das durch entsprechende Sicherung des Nennstromes in der Abhängigkeit am Anschlußwert des installierten Gerätes. Kontrollieren sie den Anschlußwert des Apparates auf dem Produktionsschild im Hinterteil des Gerätes.
Page 11
GEBRAUCHSANWEISUNG Vorsicht! Bevor Sie das Gerät verwenden werden, ist es notwendig ihn gut mit feuchte Waschlappen abzuwaschen, und danach ins Trocken abzuwischen. Lassen Sie nie das Gerät ohne Aufsicht im Betrieb. Schalten Sie nie das Gerät ohne Öl oder wenn sein Niveau unter der Minimumstrich ist ein. Falls der Öl beschmutzt ist oder Sie ihn längerer Zeit verwenden, droht die Gefahr der Ölentzündung.
Page 12
INSTANDSHALTUNG Es ist empfohlen mindestens einmal pro Jahr das Gerät durch einen fachlichen Servicedienst warten zu lassen. Alle Eingriff e in das Gerät darf nur eine qualifi zierte Person durchführen, die zu solchen Handlungen eine Befugnis besitzt. !!! Nach jedem Reinigungsausrüstung nötig ist, die Oberfl äche der Arbeitsplatte mit Pfl anzenöl!!! Bemerkunge und Empfehlunge Benützen Sie das Gerär nur unter ständigen Aufsicht.
DÉCLARATION DE CONFORMITÉ 2006/95/ES Le fabricant certifi e la conformité des appareils aux normes 2004/108/ES, 2006/95/ES, à la loi n° 616/2006 sb., 17/2003 sb. et aux décrets applicables. L‘installation doit être eff ectuée dans le respect des normes en vigueur. Attention: le fabricant décline toute responsabilité en cas de dommages, directs ou indirects, causés par une mauvaise installation, par une utilisation, des interventions ou des modifi...
Page 14
LA LOCATION Le local dans lequel l‘appareil est installé doit être bien ventilé. Si l’appareil doit toucher le parois , celui-ci doit résister à la chaleur de 90°C au minimum. L’installation, le réglage et la mise en marche doivent être eff...
MÉSURES DE SÉCURITÉ POUR LA PROTECTION CONTRE INCENDIE SELON EN 06 1008 ARTICLE 21: - l’apparel ne peut être utilisé que par des personnes majeures - l’appareil peut être utilisé dans un espace ordinaire selon EN 332000-4-482; 332000-4-42 - l’appareil doit être placé ou suspendu d’une manière stable sur une surface ininfl ammable Il est interdit de placer sur l’appareil ou dans la distance inférieure à...
UTILISATION ET ENTRETIEN Utilisation à l‘aide d‘huile: il est recommandé de faire usage d‘une huile de bonne qualité (type …); les meilleurs résultats s‘obtiennent à l‘aide d‘huile d‘olive ou d‘huile d‘arachide. Utilisation à l‘aide de graisse: les graisses les mieux adaptées sont les graisses de type végétales; la graisse doit être fondue avant d‘être placée dans la friteuse.
NETTOYAGE ET ENTRETIEN ATTENTION! Le nettoyage au jet d’eau ou sous pression n’est pas autorisé. Nettoyer l’appareillage tous les jour. Le nettoyage quotidien prolonge la durée de service et l’effi cacité d’appareillage. Avant d’eff ectuer toute entretien, il faut débrancher l’appareil du réseau électrique. Les parties en inox doivent être nettoyées avec un chiff...
Page 18
DIMENSION PLANS / MASSSKIZZEN / DIMENSIONS FE - 30 EL FE - 30 ELT FE - 60 EL...
Page 22
EL. CONNECTION DIAGRAM / SCHALTPLAN / SCHÉMA DU ELECTRIQUE FE - 30/60 EL ENGLISH DEUTSCH FRANÇAIS TERMINAL BOARD KLEMMSBRETT BORNIER MICROSWITCH MICROSCHALTER MICRO-INTERRUPTEUR MAIN SWITCH SCHALTER INTERRUPTEUR SICHERHEITSTHERMOSTAT THERMOSTAT DE SÉCURITÉ SAFETY THERMOSTAT 230 °C 230 °C 230 °C GREEN WARNING LIGHT GRÜN KONTROLLEUCHT VOYANT VERTE THERMOSTAT...
Page 23
EL. CONNECTION DIAGRAM / SCHALTPLAN / SCHÉMA DU ELECTRIQUE FE - 30, 60, 31, 61 ELT (400V/3N 2x contactor) ENGLISH DEUTSCH FRANÇAIS TERMINAL BOARD KLEMMSBRETT BORNIER MICROSWITCH MICROSCHALTER MICRO-INTERRUPTEUR MAIN SWITCH SCHALTER INTERRUPTEUR SICHERHEITSTHERMOSTAT THERMOSTAT DE SÉCURITÉ SAFETY THERMOSTAT 230 °C 230 °C 230 °C GREEN WARNING LIGHT...
Page 24
EL. CONNECTION DIAGRAM / SCHALTPLAN / SCHÉMA DU ELECTRIQUE FE - 30, 60, 31, 61 ELT (230V/3 2x contactor) ENGLISH DEUTSCH FRANÇAIS TERMINAL BOARD KLEMMSBRETT BORNIER MICROSWITCH MICROSCHALTER MICRO-INTERRUPTEUR MAIN SWITCH SCHALTER INTERRUPTEUR SICHERHEITSTHERMOSTAT THERMOSTAT DE SÉCURITÉ SAFETY THERMOSTAT 230 °C 230 °C 230 °C GREEN WARNING LIGHT...
Page 25
EL. CONNECTION DIAGRAM / SCHALTPLAN / SCHÉMA DU ELECTRIQUE FE - 66, 66/2, 66/3 ELT (400V/3N 2x contactor) ENGLISH DEUTSCH FRANÇAIS TERMINAL BOARD KLEMMSBRETT BORNIER MICROSWITCH MICROSCHALTER MICRO-INTERRUPTEUR MAIN SWITCH SCHALTER INTERRUPTEUR SICHERHEITSTHERMOSTAT THERMOSTAT DE SÉCURITÉ SAFETY THERMOSTAT 230 °C 230 °C 230 °C GREEN WARNING LIGHT...
Page 26
EL. CONNECTION DIAGRAM / SCHALTPLAN / SCHÉMA DU ELECTRIQUE FE - 31, 61/13 ELT (400V/3N 2x contactor) ENGLISH DEUTSCH FRANÇAIS TERMINAL BOARD KLEMMSBRETT BORNIER MICROSWITCH MICROSCHALTER MICRO-INTERRUPTEUR MAIN SWITCH SCHALTER INTERRUPTEUR SICHERHEITSTHERMOSTAT THERMOSTAT DE SÉCURITÉ SAFETY THERMOSTAT 230 °C 230 °C 230 °C GREEN WARNING LIGHT GRÜN KONTROLLEUCHT...
Page 27
EL. CONNECTION DIAGRAM / SCHALTPLAN / SCHÉMA DU ELECTRIQUE FE - 31, 61/13 ELT (230V/3 2x contactor) ENGLISH DEUTSCH FRANÇAIS TERMINAL BOARD KLEMMSBRETT BORNIER MICROSWITCH MICROSCHALTER MICRO-INTERRUPTEUR MAIN SWITCH SCHALTER INTERRUPTEUR SICHERHEITSTHERMOSTAT THERMOSTAT DE SÉCURITÉ SAFETY THERMOSTAT 230 °C 230 °C 230 °C GREEN WARNING LIGHT GRÜN KONTROLLEUCHT...
