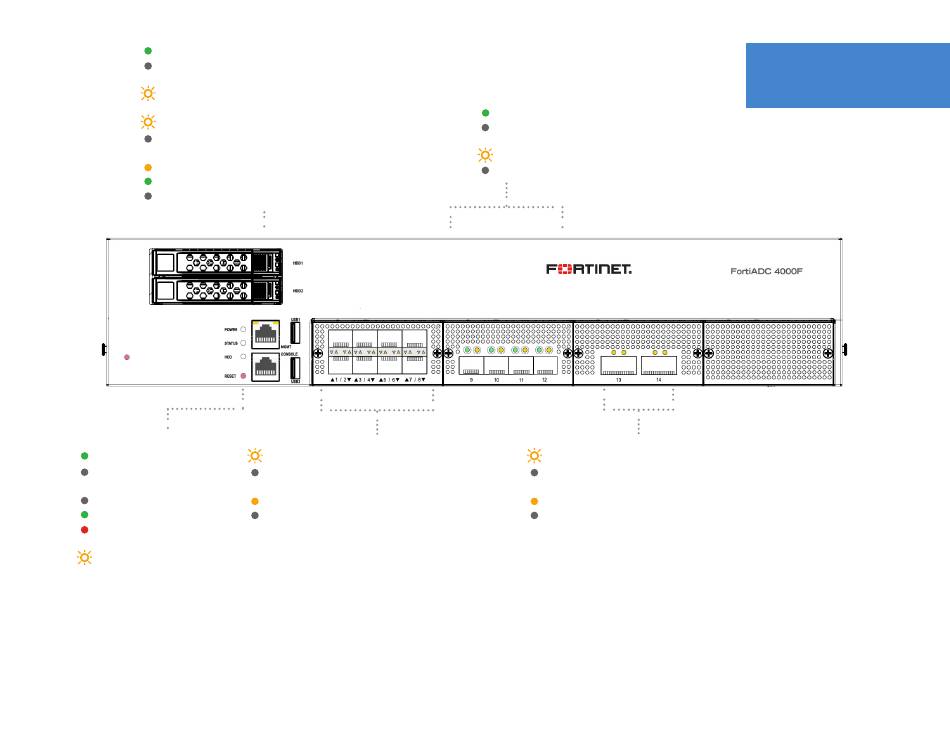

HDD Power Indicator (Top)
Green: HDD 1is in service
Off: HDD1 is OFF or not installed
HDD Activity Indicator (Bottom)
Flashing Amber:
MGMT Port Link/Activity (Left)
Flashing Amber:
Off: No link established
MGMT Port Speed (Right)
Amber: Port is connected at 1Gbps
Green: Port is connected at 100Mbps
Off: Port is connected at 10Mbps or no link established
Power
Green: The unit is ON
Off: The unit is OFF
Status
Off: System is normal
Green: Minor system alarm
Red: System failure
HDD
Flashing Amber: HDD in use
16 16
HDD1 in use
Transmitting & receiving data
PORT 1 – 8 Link/Activity (Left)
Flashing Amber: Transmitting & receiving data
Off: Port is not in use
PORT 1 – 8 Speed (Right)
Amber: Port is connected at 1Gbps
Off: No link established
PORT 9 – 12 Speed (Left)
Green: Port is connected at 1Gbps or 10Gbps
Off: No link established
PORT 9 – 12 Link/Activity (Right)
Flashing Amber: Transmitting & receiving data
Off: Port is not in use
PORT 13 – 14 Link/Activity (Left)
Flashing Amber: Transmitting & receiving data
Off: Port is not in use
PORT 13 – 14 Speed (Right)
Amber: Port is connected at 40Gbps
Off: No link established
