Check list
Lint Stereo 5 amplifier
Earth cable and lug
Power supply 24 Volts DC – 220 VAC
The LINT Stereo 5 is designed for use with a MP3 player, cell phone or a chromecast device, featuring a 5 watt RMS per channel. It features a Class AB
Amplifier, a single 3,5 mm jack input. The unit uses high quality Nichicon capacitors found in high end products. Designed to use existing speakers. By
using a chromecast device, nothing further is required to enjoy a bookshelf sound system with full remote control..
Cable connections
Plug in a input 3,5 mm aux cable to the PCB, visible through the acrylic side panel
Connect speakers to the binding posts at the rear
Connect power supply to the power in jack socket
A earth cable is provided, connect to earth and attach the end to a mains plug earth point, if using a turntable earth to the pre amplifier and the turntable.
DC external power connection, 24 VDC
2,1 mm DC plug at rear
Earth post, access at the rear
ON/OFF Switch
Volume control

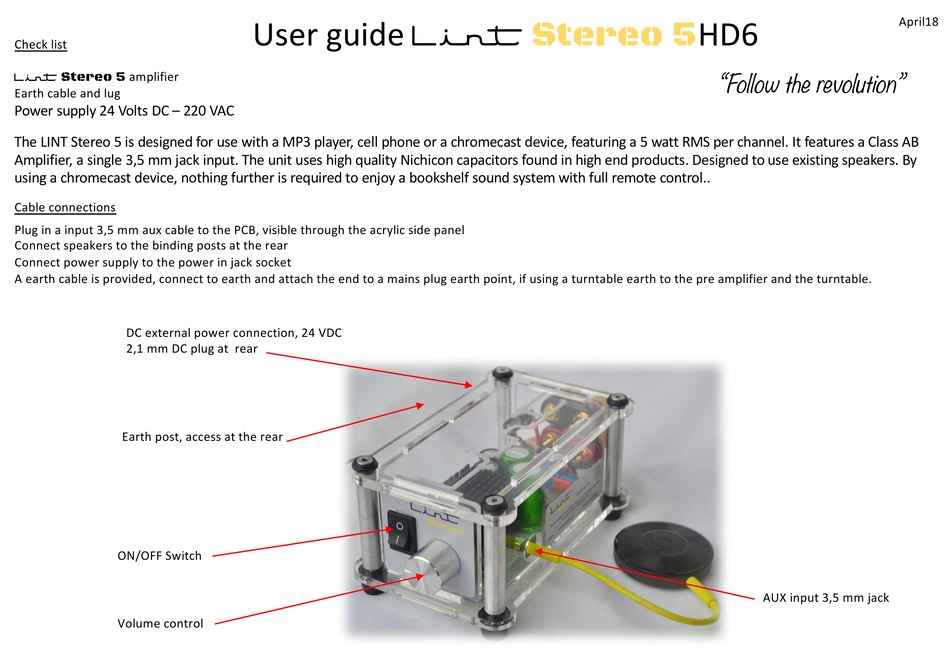

User guide Lint
Stereo
5HD6
"Follow the revolution"
AUX input 3,5 mm jack
April18
