GP-176 STD/ EVO Owner's
Manual
www.geme.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP-176 STD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Great Power Engine GP-176 STD

Summary of Contents for Great Power Engine GP-176 STD

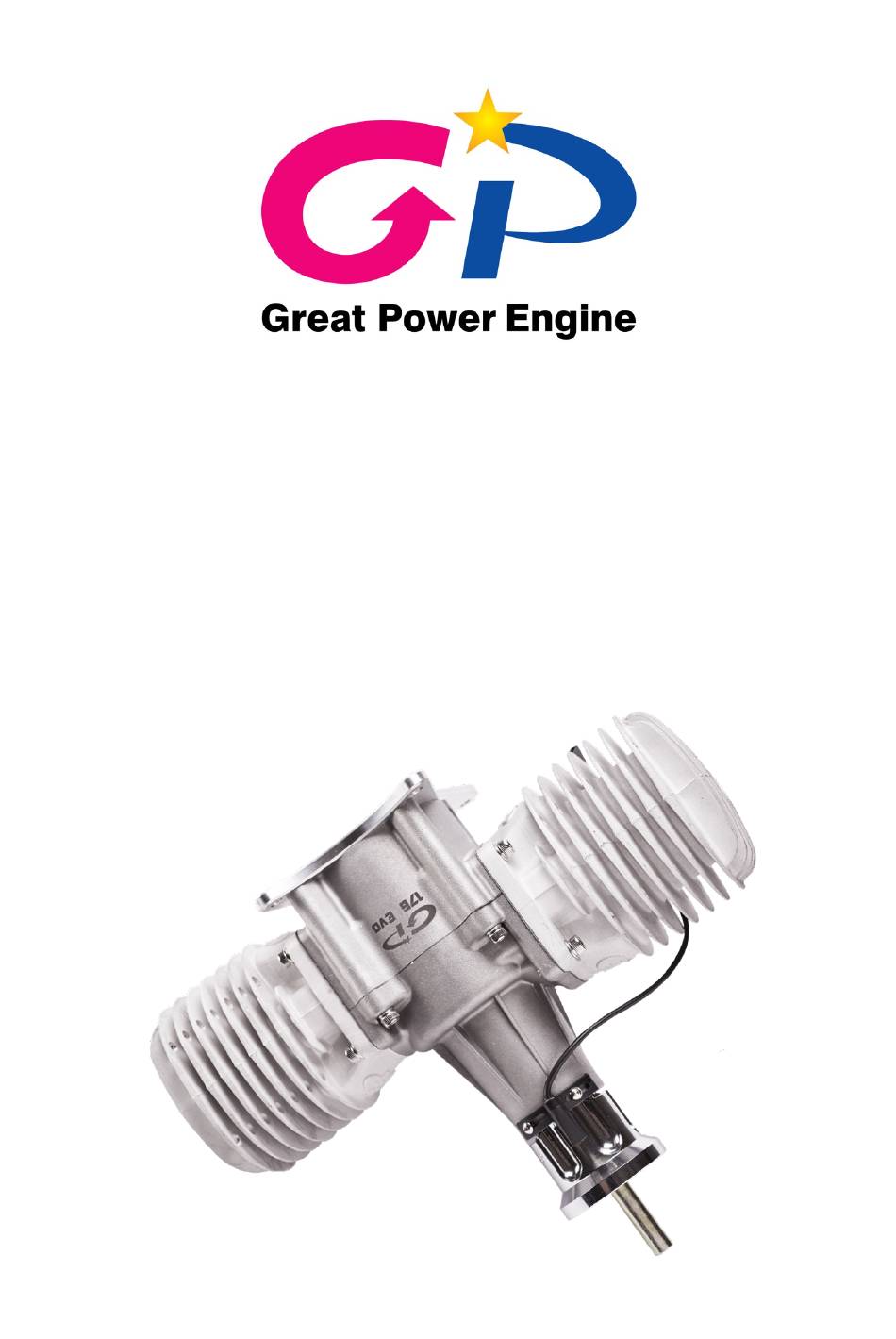

  • Page 1 GP-176 STD/ EVO Owner’s Manual www.geme.com.tw...

  • Page 2: Technical Specifications

    Please read these instructions carefully before operating the engine ※ Technical Specifications ※ Item Data Item Data Bore 53 mm RPM Range 1100-8900 RPM Net Weight 3550 g Output STD: 19 Horsepower EVO:20.5 Horsepower Weight of Ignition 202 g Fuel Unleaded 89-92 octane fuel Weight of Muffler...
  • Page 3 2.   Read all instructions before operating your engine. 3.   When operating the GP engine, always abide by the laws of your country. 4.   Use original spare parts only. 5.   Make sure all parts of your body area safe distance away from the plane of the spinning propeller.

  • Page 4: Fuel And Oil Mix

    Suggested propeller dimensions: 2 blade: 30x13, 31x12, 32x10. GP-176 is designed for a power maximum of 8900 RPM. We recommend that you do not use propellers that turn the engine on the ground at more than 6700 RPM. Do not forget that the balance of your propeller is absolutely critical to the health of your engine.

  • Page 5: Needle Setting

    GP-123 2 open on the Low needle 1 ½ open on the High needle GP-176 STD& EVO ¾ open on the Low needle 1 ½ open on the High needle Needle settings will vary according to different conditions, such as altitude, temperature, fuel carb variances, humidity, and so on.
  • Page 6 Switch on the radio system and confirm that all controls work correctly and are in the 5.   correct direction. Ensure that you have the throttle cut switch set to fully close the throttle and stop the engine. After setting up, reconfirm that the throttle works by testing whether it stops the engine.

  • Page 7: Troubleshooting

    ※ Trouble Shooting ※   Trouble Shooting I ( The engine will not start) 1.   Check the battery voltage. It should be over 6.6+ when checked under load. Also check all the ignition connections, wiring and switches. 2.   Examine the fuel system for clogs, jams or a bad fuel line. Make sure the propeller is flipped over with authority.

  • Page 8: Maintenance

    low needle setting is not too rich. (2) Check the balance of the propeller and spinner.(3)Ensure the engine’s mount bolts are secure. (4) Check the ignition timing (bad ignition timing could cause severe damage). (5) Check the structure of the engine box and firewall on your plane.

  • Page 9: Limited Warranty

    Website: http://www.gpme.com.tw FB: Great Power Engine Instagram: gpengine                                                                                                                ...
  • Page 10 American Service Center (Aviator Plus Rc) 1982 Leslie Dr, Zanesville, OH 43701, USA Contact Person: Joe Lewis Phone: 1-740-919-7670 Email: joe@aviatorplusrc.com Website: http://www.aviatorplusrc.com/rcaviation/ Mile High RC 1500W. Hampden Ave#3E, Englewood, Co. 80110 Contact Person: Mike Maloney Phone: 303-558-0801 (Regarding the Phone Support, please refer to Mile High RC’s website ) Email : Sales@milehighrc.com or Milehighrc@comcast.net Website: http://www.milehighrc.com/  ...

This manual is also suitable for:

Gp-176 evo
