Themis TS-150 Quick Manual

TS-150 Cordless Scanner Quick Guide
The radio frequency range in this document is 430.5~432.0MHz, 433.05~434.79MHz.
A standard kit contains: a handheld unit, a cradle, a USB cable, and a CD-ROM (containing
software and manuals).
Use dry and soft cloth to clean the handheld unit and the cradle.
Effective data communication range: The radio communication distance is up to 200 meters under
the condition of temperature at 27 degrees Celsius, sunny day, and visibility of 5 kilometers.
Natural surroundings significantly affect the communication distance in practice. The distance
drops quickly in the rainy, high-humidity, or heavy haze day; radio interference also shortens the
communication distance.
This series of scanners provide two kinds of wireless network topology, and support batch data
mode (offline data storage). It is suggested to read the user manual in details before use.

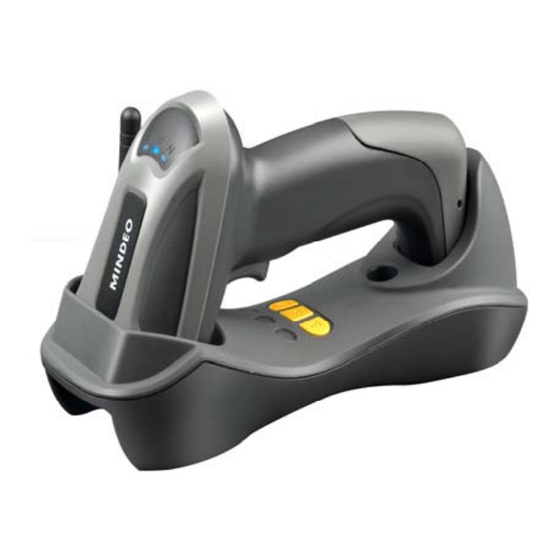

Parts of the handheld unit

①Exit window ②Trigger ③Red LED (Battery charging indicator)
④Communication/Charge socket ⑤Power button
⑦Red LED (Not successful transmission); Blue LED (Power, flash when the power is low.);
Green LED (Setting)

Parts of the cradle

①
B button (Reserved); S button (Upgrade / Reset); P
button (USB Enumeration)
② Red LED (Initiation failure); Blue LED (Power); Green
LED (Data In / Radio Frequency hopping indicator)
③ Antenna
Power on handheld unit
: Press the power button
Power off handheld unit
: Press the power button
Note: 1. See user manuals for more information. 2. For better readability, please print this document with laser printer. 3. Version: TS-150_QG_EN_1.5.
⑥Sound hole
on the handheld unit for two seconds.
on the handheld unit for two seconds.

Installation of cradle

1. Switch off power of the host. Refer to the below pictures, connect the host with the scanner with
different cables firstly, and then connect the adaptor to the power socket.
2. Ensure that all connections are secure. Switch on the power of the host. After a few seconds, if
only the blue LED on the cradle is ON, it indicates the cradle is in normal working mode.
Otherwise, make a short press on the S button on the cradle to reset the cradle.
USB cable

Charge battery

1. Please charge the battery before the first time of use. The
charge indicator on the handheld unit is turned on when the
charging is in process. When the charging process completes,
the charge indicator is turned off.
2. Charging time: 3.5 hours for fully charged.
3. You can charge the battery via a USB port on the device or an
optional 5V adapter.

Visual and audio indication of handheld unit for wireless data transmission

Successful Transmission Audio (Beeper)
Yes
No Three beeps

Programming instruction and example

RS232 cable PS/2 keyboard cable
Red LED on handheld unit
None Off
On
Example: to set Flow control to be XON/XOFF.
