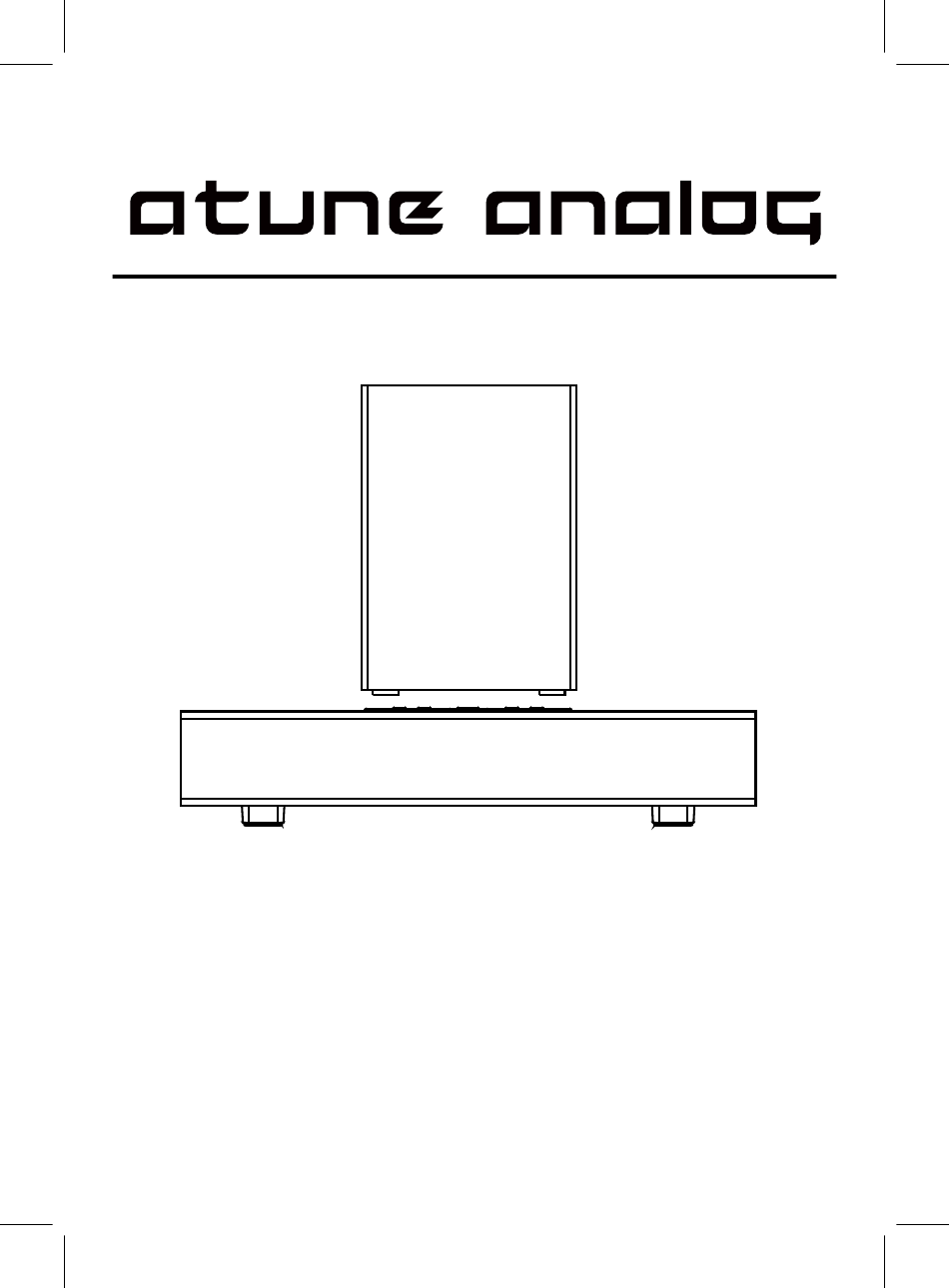

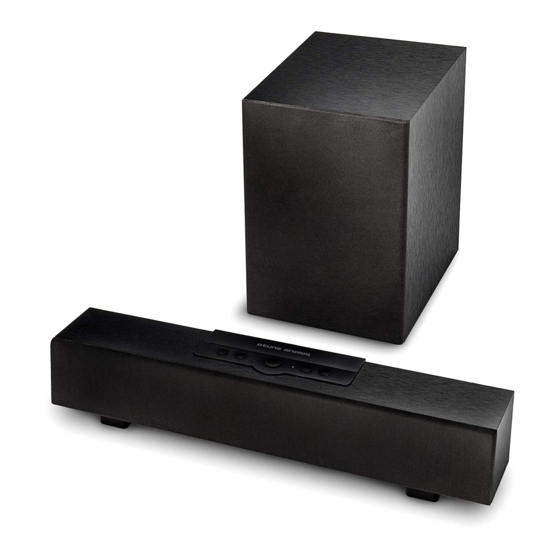

- Page 1 16" Bluetooth soundbar speaker w ith w ireless subw oofer and Dolby Model: SBB-A5520 Please read this instruction manual carefully and keep it for future reference...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PART INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE:The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...
- Page 3 washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 6. Clean only with dry cloth The appliance should be cleaned only as recommended by the manufacturer. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 4 moisture, does not operate normally, or has been dropped. 15. Power source This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.
- Page 5 2 . Damage requiring service Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions. a)When the power- supply cord or plug is damaged. b)If liquid has been spilled or objects have fallen into the product. c)If the product has been exposed to rain or water.
-
Page 6: Fcc Statement
FCC STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. -
Page 7: Product Overview
PROdUCT OvERvIEW SOUNDBAR FRONT VIEW REAR PANEL CONTROL PANEL SUBWOOFER 1. Speaker 10. Optical In jack 2. Remote sensor 11. LINE IN jacks 3. SB PAIR button 12. DC IN jack 4. Mode button 13. Speaker 5. Pow er button 14. -
Page 8: Battery Installation Of Remote Control
REMOTE CONTROL (Power On/Off) Button 2. AUX Button 3. LINE IN Button OPTICAL (Previous) Button 5. Sound Mode (MUSIC, LINE TALK, MOVIE, STANDARD) (Mute) Button (Bluetooth)Button 8. OPTICAL Button (Mode Switch) Button MUSIC TALK MOVIE Sound Mode (Next) Button STANDARD Play/Pause Button (Volume Down/Up) Button BATTERY INSTALLATION OF REMOTE CONTROL... -
Page 9: Battery Precautions
BATTERY PRECAUTIONS Follow these precautions when using a battery in this device: 1. Use only the size and type of battery specified. 2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment, a reversed battery may cause damage to the device. 3. -
Page 10: Placement And Mounting
PLACEMENT AND MOUNTING 1. Placing the device on a table - Ventilation When placing the soundbar and the subwoofer on an entertainment center, bookshelf, or any type of enclosed space, be sure to allow enough space for ventilation. Otherwise, the heat generated will produce potential heat hazard. SUBWOOFER SOUNDBAR 2-3inches... - Page 11 2.1 Mounting to a wooden wall (screws not included) A. Mark the position of the mounting screws on the wall using a pencil. B. Drill the screws directly into the marks that you have made on the wall and leave approx.
-
Page 12: General Operation
GENERAL OPERATION 1.Connect the DC 9V,1.3A Adapter to the DC IN jack on the Unit. Plug the Adapter into the AC outlet with AC100~240V;50/60Hz. The mode indicator on the Unit will light up and turn RED. 2. Connect the DC 9V, 1.3A Adapter to the DC IN jack on the subwoofer. Plug the Adapter into the AC outlet with AC100~240V;50/60Hz. - Page 13 GENERAL OPERATION 6. During Playback: ~ Press the + or - button on the unit or remote control repeatedly to adjust volume. ~ Press the button on remote control to turn off sound, the mode indicator on the unit w ill blink, press the button again to resume. ~ Press the MUSIC button on remote control to turn to MUSIC sound effect mode.
-
Page 14: Bluetooth Operation
Blue and blink. 2. Power on external Bluetooth enabled device and enter Bluetooth mode and try searching the soundbar. atune analog 09 appears, select it and make connection. 3. When 4. After successful paired, the indicator will be solid blue. -
Page 15: Aux In Operation
AUX IN OPERATION An external Audio player(such as mobile phone, MP3 player etc.) can be connected to this soundbar and listen through the speakers. 1. Plug one end of the AUX IN cable into the AUX IN jack on the soundbar. 2. -
Page 16: Line In Operation
LINE IN OPERATION An external Audio/Video device(such as Set-Top Box, DVD player etc.) can be connected to this soundbar and listen through the speakers. 1. Plug one end of the LINE IN cable into the LINE IN jack(L&R) on soundbar. 2. - Page 17 OPTICAL IN OPERATION 1. Connect the OPTICAL OUT jack from the external audio player (such as TV, DVD player etc.) to the OPTICAL IN jack on the rear of the soundbar with the optical connection cable as illustated below:(For PCM format only) Rear View TV or DVD player etc.
-
Page 18: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION No power The Adapter is not connected Connect the Adapter to the wall outlet Soundbar is in power off mode Press the button on soundbar or press the button on remote control to power on Raise the volume level by pressing Volume level in minimum position No sound or... -
Page 19: Specifications
SPECIFICATIONS Power input ................AC 100~240V, 50/60Hz Power output .................DC 9V 1.3A Audio output of the unit...................2 x 5 W Audio output of the subwoofer................12W Bluetooth effective working range in open area........up to 32 feet Remote effective working range..............up to 16 feet PACKAGES 1x The Unit 1x Subwoofer...
