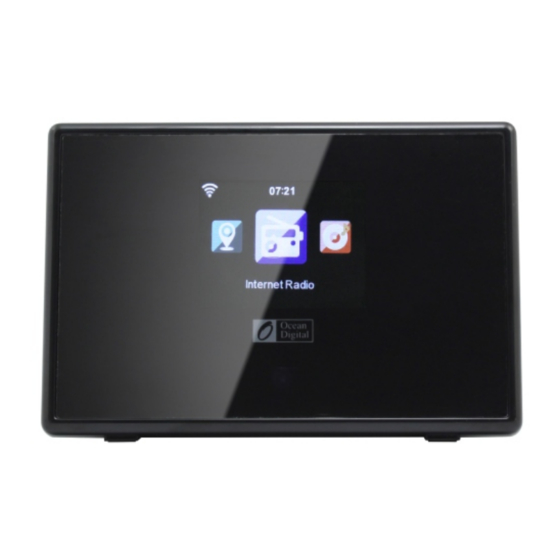

- Page 1 Internet Radio Adaptor WR-01C User Manual (Additional powered speaker / active speaker is required to use this product) Please read this user manual carefully before using the receiver.
-
Page 2: Table Of Contents
Contents Location of Controls ...........1 Remote control ...........2 Before you start ..........3 Remote control character list .......5 Switching on the radio .........6 Connecting to your WiFi Network ......7 Internet Radio ............9 Spotify Connect ..........12 DLNA ...............12 Media Center ...........13 Information Center ...........15 Bluetooth ............16 Configuration ...........17 Trouble Shoot ..........25... -
Page 3: Location Of Controls
Location of Controls LCD Display Infrared Sensor 3.5 mm Audio out socket: Connect external powered speakers with 3.5 mm plug or RCA adapter Power on/off switch DC IN Power socket 5V: Connect the AC adaptor supplied in the package - 01 -... -
Page 4: Remote Control
Remote control : Standby button : Mute 3. 0-9: Favorite station key / input letters and numbers for WiFi Encryption code : Dim the display : Favorite button, Long press to preset station. Press it briefly to recall station. Adding station to your favorite list 6. -
Page 5: Before You Start
Before you start Please ensure the following is ready: • You have a broadband internet connection. • A wireless (Wi-Fi) broadband router is connected to the internet successfully. The radio supports Wireless B, G and N connection (Wireless N router can also be used with the setting on B or G). - Page 6 Warning The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. - 04 -...
-
Page 7: Remote Control Character List
Remote control character list Key“0”―― 0,'DEL’ Key“1”―― '1'->'@'->' '(space)->'！'-> “ (double quotes)- >'#'->'$'->'%'->'&'-> '(single quotes)->'('->')'->'*'- >'+'->'，'->'-'->'.'->'/'->':'->';'->'<'->'='->'>'->'?'- >'['->'\'->']'->'^'->'_'->'`'->'{'->'|'->'}'->'~’ Key “2”―― 2,A,B,C,a,b,c Key“3”―― 3,D,E,F,d,e,f Key“4”―― 4,G,H,I,g,h,i Key“5”―― 5,J,K,L,j,k,l Key“6”―― 6,M,N,O,m,n,o Key“7”―― 7,P,Q,R,S,p,q,r,s Key“8”―― 8,T,U,V,t,u,v Key“9”―― 9,W,X,Y,Z,w,x,y,z Remark: press '►' to move to next character and press 'OK' button to confirm. -
Page 8: Switching On The Radio
Switching on the radio Plug the connector pin of the mains adaptor into the DC jack on the unit. Connect the other end of the adaptor to the wall socket. Caution: Use only the main adaptor supplied with the radio. Connecting a power supply with a different rating will cause permanent damage to the radio and may be hazardous. -
Page 9: Connecting To Your Wifi Network
Connecting to your WiFi Network The following screen will appear. You can choose <Yes> to proceed to search for the available WiFi network. If your router has the WPS function, you can select the <Yes (WPS)> to proceed. 01:01 Would you like to configure Network now? Yes(WPS) It will then start scanning the network. - Page 10 Connecting to your WiFi Network The radio will start connecting to the network. After the router is connected successfully, it will display the menu screen: 08:58 Internet Radio You can now start enjoying the internet radio. - 08 -...
-
Page 11: Internet Radio
Internet Radio Choose 'Internet Radio' from the menu, you can see different functions as below: To start listen the worldwide radio stations, select “Radio Station/Music”. My Favorite This is to show the list of your Favorite stations which have been assigned to the presets. n To preset a station: While you are playing the favorite station, simply hold and press the... - Page 12 Internet Radio To do the edit, simply press the button briefly to enter the Preset station list. Choose the radio station that you want to make with the above changes. Then press the Right key ►, it will enter into the edit menu. Then choose your desire action. iRadio Delete Shift Up...
- Page 13 Internet Radio Service Search Stations You can find your desire radio station by entering the name of the radio. Add New Radio Station If you cannot find your desire station from the Radio station list and you have the URL address, you can input the link here and add to your favorite list.
-
Page 14: Spotify Connect
Spotify Connect/DLNA Spotify Connect A better way to listen at home. Listen on the WR-01C using the Spotify app as a remote. Enjoy the music together. Use your phone, tablet or computer as a remote control for Spotify.Go to spotify.com/connect to learn how. -
Page 15: Media Center
Media Center UPnP (Universal Plug and Play) The device supports UPnP and is DLNA-compatible. This provides the opportunity to stream music from your other network devices. However, this requires you to have a compatible device in your network that can function as a server. - Page 16 Media Center press and hold the [Dial/Select] knob, unit the sign appears. The song will be added to My playlist. Clear My Playlist Remove all songs in My playlist to allow a new playlist to be prepared. Note - If you have DLNA compatible servers available, follow the steps described above to browse the audio files from DLNA compatible device on the radio to play.
-
Page 17: Information Center
Information Center Weather You can view the weather forecast all over the world and choose the desire region to display on Standby. To activate this feature, press “►” and choose “add to standby display”, then press “OK” to confirm. “Current Date & Time” and “Current Weather” will display every 10 seconds alternately under the standby mode if the weather forecast display is started. -
Page 18: Bluetooth
3. Your mobile device will start discovering the internet radio adaptor, look up the list with the name called “WR-01C”, then select to connect the device. 4. You can then start streaming your music from your mobile device to the Internet radio adaptor. -
Page 19: Configuration
Configuration Mode You can choose to display the Standby clock as Clock Radio mode or Internet Radio mode. Manage my mediaU You can tailor made your own favourite station list by operating on PC. Firstly you need to register an account on MediaU. On your computer, go to http://www.mediayou.net/web/index.php , this is the radio portal playing on your radio. - Page 20 Configuration 1. Go to Main Menu and select “Information Center” 2. Go to System Information 3. Choose Wireless Info and you will find the Mac Address for your radio You can then organize your own favourite stations or add any new station which is currently not found on the station list.
- Page 21 Configuration Network Wireless Network Configuration Press “Enter” to scan for wireless network and list out. Wireless Network (WPS PBC) This is the option for you to use WPS function, which means you can set the wireless without enter any passwords for Wi-Fi protected if your router has the function.
- Page 22 Configuration once or particular day in the week. 2. Alarm Clock（NAP function）: If you would like to take a nap or need the Alarm in short time, you can use this function. You can select the time from 5 minutes up to 120 minutes.
- Page 23 Configuration Dimmer You can adjust the backlight of the LCD using the below settings: Power Saving You can set the backlight to dim down when there is no operation in a certain time of period by choosing this option "Power Saving". Turn on You can choose to have the backlight remains ON all the time by choosing this option "Turn on".
- Page 24 Configuration the step of every 15 minute. You also can do the setting with the “Sleep” button from remote control, when you press “Sleep”, then you can see the sleep timer on the top right corner of the display. Buffer You can select your preferred buffering time.
- Page 25 Configuration Please note: The DLNA feature is compatible and works with corresponding third party Android APPs. Apple devices are not supported. Remote App - AirMusic Control Using your smart phone / tablet to control the radio by installing the App "AirMusic Control". It is available on Android Play store and iOS App Store.
- Page 26 Configuration Equalizer Various preset of equalizer is available. Resume When Power On This is set to ON or OFF of “ Resume When Power On”. Software update Upgrade information will pop up on the display when there is upgrade available on the server. Reset to default You can do this factory reset to empty all of the settings and it comes back to default settings.
-
Page 27: Trouble Shoot
Trouble Shooting 1. If you have trouble connecting the radio to your wireless network, these steps may help to resolve the problem: - Confirm that a Wi-Fi or Ethernet Wired connected PC can access the internet (i.e. can browse the web) using the same network. - Page 28 Trouble Shooting 2. If your radio can connect to the network successfully, but is unable to play particular stations, it may be due to one of the following reasons: - The station is not broadcasting at this time of the day (remember it may be located in a different time zone).
- Page 29 Trouble Shooting Alarm) that will have its own control panel and you will need to consult the manual for your firewall. - If your PC is connected to a managed network, with a server sometimes the PC being searched for needs to be server Workgroup.
- Page 30 Trouble Shooting created. The Internet Radio is able to detect and stream these playlists, but they must be stored in the folder with the rest of the Media content and they must have the file extension.m3u. Windows Media player can create suitable playlist, just select 'create new playlist', drag and drop the tracks you want into the playlist, then use 'Save as' to ensure the file type is .m3u.
- Page 31 Trouble Shooting 7. What is Buffering? When playing a stream, the Internet Radio/Media player, downloads a small amount of the stream before it starts playing. This is used to fill in any gaps in the stream that may occur if the internet or the wireless network is busy.
-
Page 32: Technical Specificationing
Technical Specification Model WR-01C Power input Power voltage 100-240V~50/60Hz IEEE802.11b/g/n Wireless Network Security Protocol WEP/WPA/WPA2 3.5mm Audio out jack Audio socket 135 x 38 x 98 mm (L x D x H) Unit Dimension Remark: Specification may vary without notice... - Page 33 WEEE and Recycling The European laws do not allow any more the disposal of old or defective electric or electronic devices with the household waste. Return your product to a municipal collection point for recycling to dispose of it. This system is financed by the industry and the ensures environmentally responsible disposal and the recycling of valuable raw materials.
