Speedaire 10D233 Operating Instructions & Parts Manual

Speedaire

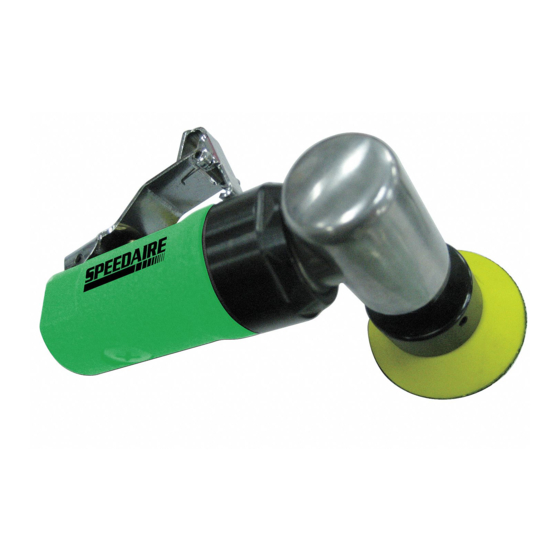

Orbital Sander
Speedaire angle die grinder is designed for cleaning tire molding,porting and general
high-speed polishing and grinding in confined areas.
Includes:
1 - Mini orbital sander
1 - 2" Pad
1 - Holding bar
Figure 1
Unpacking
When unpacking the unit, carefully
look for any damage that may have
occurred during transit. Check for
loose, missing or damaged parts.
Specifications
Free Speed .........................16,500 RPM
Length .............................................4.92"
Weight .........................................0.75 lbs
Average air consumption .........1.83 CFM
Hose Size ..........................................3/8"
Air inlet ...............................................1/4"
Maximum Air pressure ....................90psi
Safety Guidelines
This manual contains information that is
very important to know and understand.
This information is provided for SAFETY
and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this
information, observe the following symbols.
Danger indicates an imminently
hazardous situation which, if not
avoided, WILL result in death or serious injury.
Warning indicates a potentially
hazardous situation which, if
not avoided, COULD result in death or serious injury.
Caution indicates a potentially
hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
NOTICE Notice indicates important
information, that if not followed,
may cause damage to equipment.
5S6840
Mini Angle
®
General Safety Information
1. For Additional Safety
information Consult:
Your employer, union, and/or trade
association.
US Department of Labor (OSHA);
www.osha gov.
" Safety Code For Portable Air
Tools" (B186.1) available from:
www.ansi.org.
Projectile Hazards
2.
Always wear impact-resistant eye
and face protection when involved
with or near the operation, repair
or maintenance of the tool or
changing accessories on the tool.
Be sure all others in the area are
wearing impact-resistant eye and
face protection.
Even small projectiles
can injure eyes and
cause blindness.
Entanglement Hazards
3.
Keep away from moving sand pad.
Do not wear jewelry or
loose clothing.
Scalping can occur if hair is not kept
away from the tool and accessories.
Choking can occur if neckwear is
not kept away from the tool and
accessories.
Workplace Hazards
4.
Slip/Trip/Fall is a major
cause of serious injury
or death. Beware of excess hose left on the
walking or work surface.
in Taiwan
04634
10D233
Repetitive work motions, awkward
positions and exposure to vibration
can be harmful to hands and arms.
If numbness, tingling, pain or
whitening of the skin occurs, stop
using the tool and consult a
physician.
Avoid inhaling dust or handling
debris from the work process which
can be harmful to your health.
This tool is not intended for use in
explosive atmospheres and is not
insulated for contact with electric
power sources.
Some dust created by power
sanding, sawing, grinding,
drilling and other construction activities contains
chemicals known to the State of California to cause
cancer and birth defects or other reprod- uctive harm.
Some examples of these
chemicals are:
- Lead from lead based paints
- Crystalline silica bricks and
cement and other masonry
products
- And Arsenic and chromium
from chemically-treated rubber
Your risk from these exposures
varies, depending on how often
you perform this type of work.
To reduce your exposure to these
chemicals:work in a well ventilated
area, and work with approved safety
equipment, such as dust masks that
are specially designed to filter out
microscopic particles.
For professional use only.
WARNING
To reduce risk of injury, everyone
using, installing, repairing,
maintaining, changing
accessories on, or working near
this tool must
understand these instructions
before performing any such task.
STC100
03/11
#766
read and
