THIS UNIT IS PRE-SET FOR PLUG n' GO™
OPERATION, ADJUSTMENT IS OPTIONAL.
For full operational details, adjustment and more
features of the product, see the DLM System
Installation Guide provided with the LMRC-102 and
www.wattstopper.com
also available at
INSTALLATION SHALL BE
IN ACCORDANCE WITH ALL
APPLICABLE REGULATIONS,
LOCAL AND NEC CODES.
Intended for Listed Class
2 DLM Devices.
For Class 2 DLM devices -
To be connected to a Class
2 power source only.

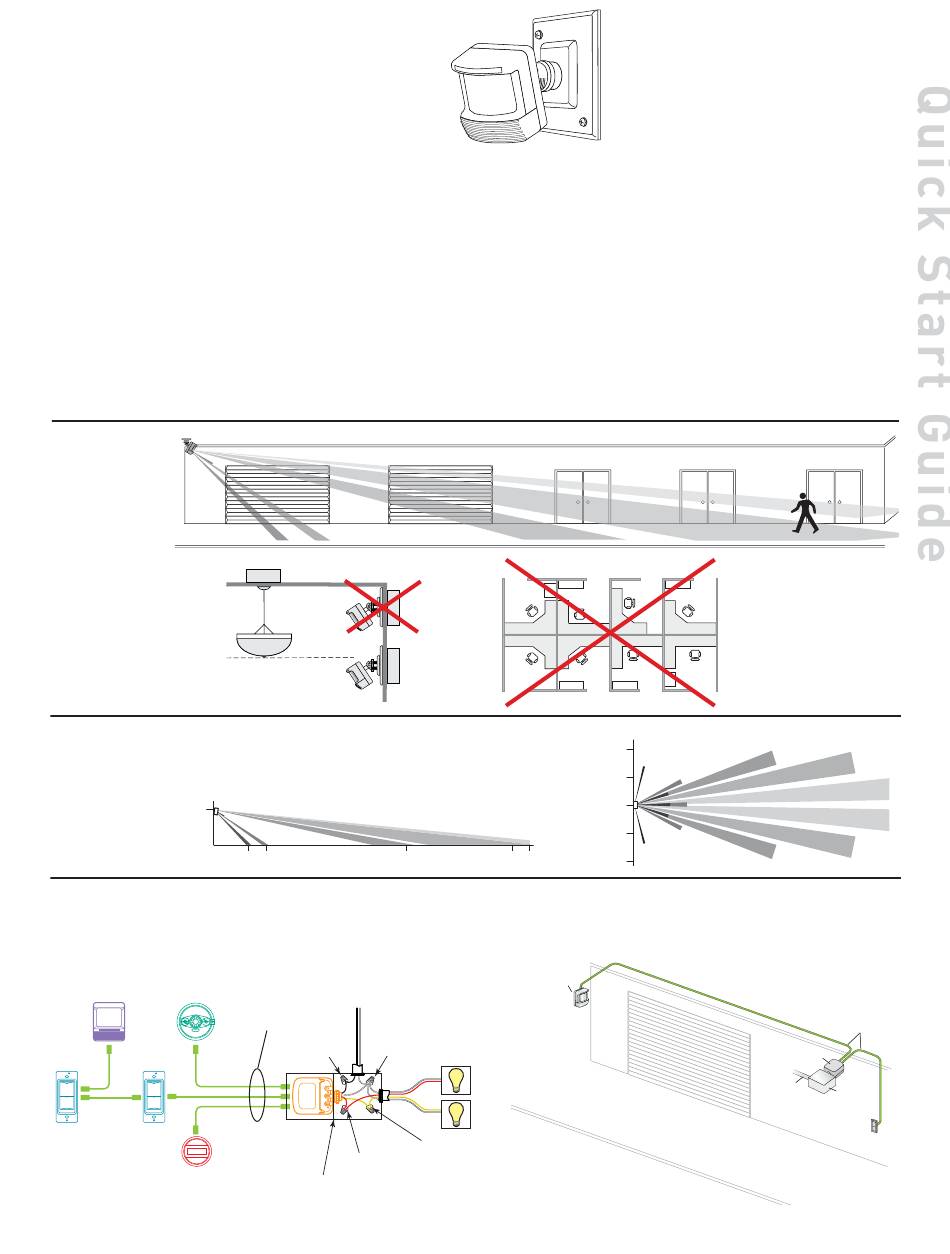

SENSOR 10 ft.
PLACEMENT

COVERAGE PATTERN

Coverages shown are maximum and represent
half-step walking motion.
10ft
0

CONNECTIVITY

The illustrations below show examples of free-topology wiring. The LMPX-100-1 communicates to all other Digital Lighting
Management devices connected to the low voltage DLM Local Network, regardless of their position on the DLM Local Network.
Corner Mount Ceiling Mount
Sensor Sensor
DLM Local Network
Switch Switch
Daylight Sensor
For Class 2 Device Wiring Only –
Do Not Reclassify and Install as
Class 1, or Power and Lighting
Wiring.
Wire connections shall be rated
suitable for the wire size (lead
and building wiring) employed.
Ceiling
Sensor
Side View
10 15ft 55ft
Line
Voltage
Low Voltage
LMRJ Cables
Line/Hot Neutral
Black wire White wire
LMRC
102
Room
Controller
Red wire
to Load A (1)
J-Boxes
Voltage ................................................................................ 24VDC
Current Consumption ............................................................ 7mA
Power Supply .............. Watt Stopper/Legrand Room Controllers
Connection to the DLM Local Network .......................RJ-45 plug
DLM Local Network Characteristics:
Provides low voltage power over Cat 5e cable (LMRJ).
Supports up to 24 communicating devices, including 4
LMRC-10x or LMPL-101 max per each DLM Local Network.
Free topology up to 1,000ft of low voltage cable.
Environment ................................................. For Indoor Use Only
Operating Temperature ....................32° to 131°F (0° to 55°C)
Storage Temperature ...................... 23° to 176°F (-5° to 80°C)
Relative Humidity ...........................5 to 95% (non condensing)
Patent Pending
85 90ft
Occupancy
Sensor
Loads
1
2
Yellow wire
to Load B (2)
LMPX-100-1
Digital Lighting Management
PIR Corner Mount
Occupancy Sensor
Long Range Lens
Top View
16ft
8ft
0
8ft
16ft
Load/Line
(Class 1 wiring)
DLM Local Network
(low voltage, Class 2)
LMRJ Cables
Room
Controller
To
J Box
Switch
