Summary of Contents for Laser DVD-ABLE-9V2

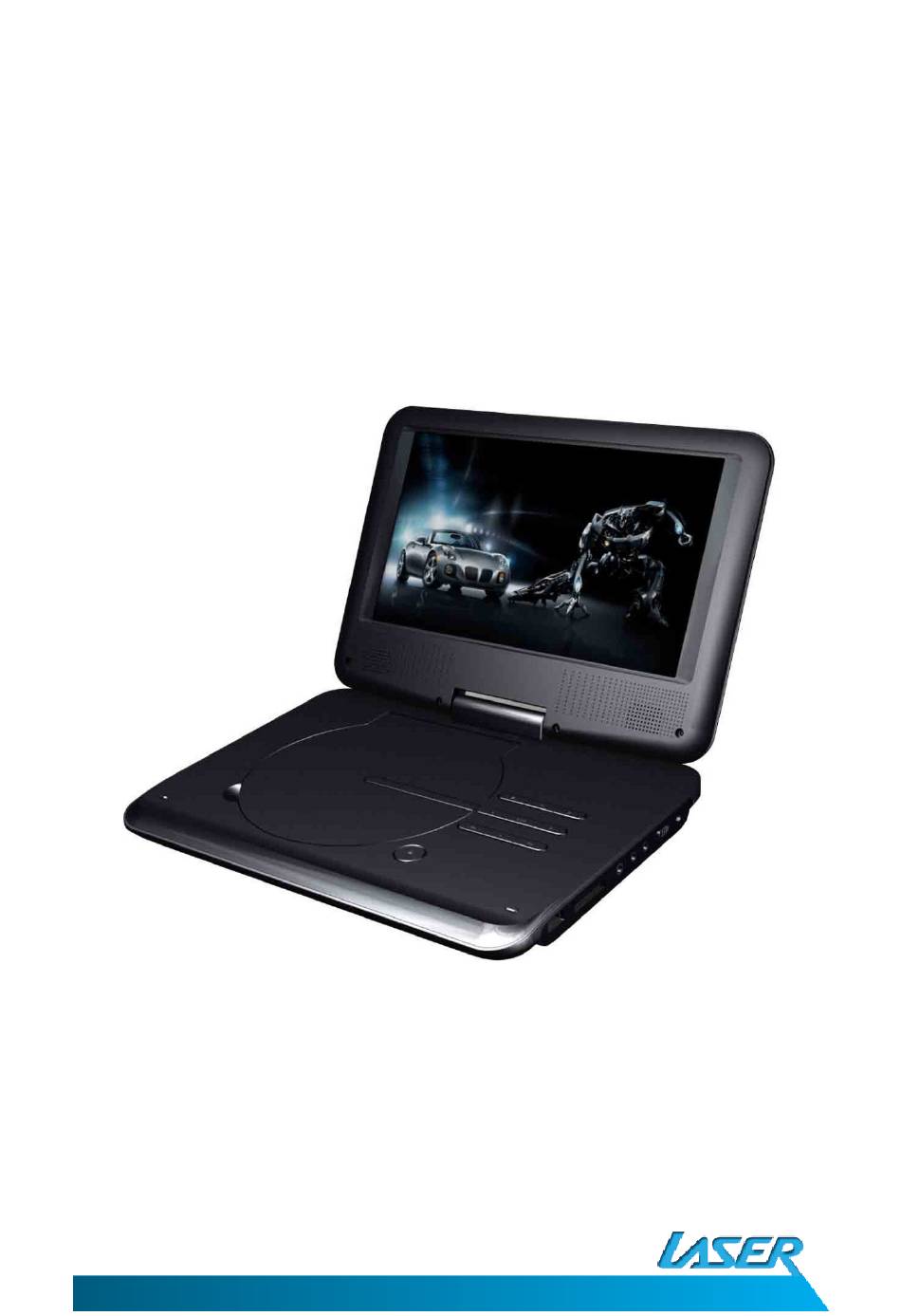

- Page 1 DVD-PORTABLE-9V2 USER MANUAL Laser 9” Screen Portable DVD Player Please read carefully before use...
-
Page 2: Table Of Contents
DVD-PORTABLE-9V2 USER MANUAL TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS ........... 4 CARE OF DISCS ........................5 WHAT’S IN THE BOX ......................6 THE PLAYER ........................6 INSTALLATION ........................7 Indoor Use ..........................7 Incar use ..........................7 Connecting Headphones (not included) ................8 PLAYBACK ......................... - Page 3 DVD-PORTABLE-9V2 USER MANUAL TABLE OF CONTENTS Last Memory ........................15 Audio ........................... 15 Speaker Setup ........................15 Dolby ........................... 15 Dual Mono ........................15 Dynamic ..........................16 Video ........................... 16 Preferences ......................... 16 TV Type ..........................16 Audio ..........................16 Subtitle ..........................
-
Page 4: Important Safety Instructions And Precautions
DVD-PORTABLE-9V2 USER MANUAL IMPORTANT SAFETY INSTRCUTIONS AND PRECATIONS IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS Read all instructions carefully before use. Retain manuals for future reference. Use this product only in the manner described. Only use a water-dampened soft-cloth to clean the surface of this product. ... -
Page 5: Care Of Discs
USER MANUAL CARE OF DISCS Laser product symbol: located on the rear panel of the unit indicates that this player is a class 1 laser product; it uses only weak laser and no hazardous radiation outside of the unit. The lightning flash with... -
Page 6: What's In The Box
DVD-PORTABLE-9V2 USER MANUAL WHATS IN THE BOX WHAT’S IN THE BOX 1 X Main DVD player with 9” 16:9 LCD display 1 X Remote control (with battery) 1 X 12VDC (car) Power supply 1 X 110-240VAC mains power adaptor 1 X AV Cable Please check the contents of the packaging carefully. -
Page 7: Installation
DVD-PORTABLE-9V2 USER MANUAL INSTALLATION INSTALLATION Indoor Use 1. Locate a spare mains outlet and turn it OFF. 2. Plug the supplied AC adaptor in to the outlet. 3. Connect the other end to the 12VCD input socket. 4. Turn the main outlet ON. 5. -
Page 8: Connecting Headphones (Not Included)
DVD-PORTABLE-9V2 USER MANUAL PLAYBACK Connecting Headphones (not included) Plug the optional headphones into the headphone socket on the DVD Player. Adjust the volume level on the player before wearing the headsets. PLAYBACK The Remote Control Item Function Power Menu Number Pad DVD Setup Up/Down/Left/ Right... -
Page 9: Key Functions
DVD-PORTABLE-9V2 USER MANUAL PLAYBACK Key Functions Button Action Power Switches the player ON or OFF DVD/SD/USB Press to cycle between DVD (Optical Disc), Card reader or USB drive. Use Up/Down/Left/Right button to navigate and the OK button select. Setup Enter or Exit the setup menu. Number Pad Use to enter an item in a menu or to enter a password. -
Page 10: Display
DVD-PORTABLE-9V2 USER MANUAL PLAYBACK 5. Play/Pause. Press the Play/Pause ( ) button on the remote during play to pause playback. To resume, Press the Play/Pause ( ) button once again. 6. Fast Forward/Fast Reverse Press Fast Forward or Fast Reverse to achieve the place you desired with speed adjustable during 2X, 4X, 8X, 16X, 32X times. -
Page 11: Angle
DVD-PORTABLE-9V2 USER MANUAL PLAYBACK Angle During playback of a disc, press the “ANGLE” button to display the available angles for discs containing multi-angles, with the current angle number and the total number of angles displaying. Press “ANGLE” to select another angle, then press again to exit and return to the normal viewing angle. -
Page 12: Zoom
DVD-PORTABLE-9V2 USER MANUAL PLAYBACK Zoom During playback press “ZOOM” to enlarge the picture by 2X, 3X or 4X with the current zoom multiple A-B Repeat A. During playback press a first time “A-B” to set the Starting Point A. B. Press “A-B” a second time to set the Ending Point B and player will repeatedly play the part between Point A and Point B. -
Page 13: Playback Mp3/Mpeg-4 Disc
DVD-PORTABLE-9V2 USER MANUAL PLAYBACK Playback MP3/MPEG-4 Disc When a MP3/MPEG-4 disc is inserted into the unit, the menu screen appears automatically. You can use the menu screen to select your desired folders and songs or the system plays the songs in the order they were burned onto the disc. 1. -
Page 14: Play Usb And Sd/Mmc/Ms Card
DVD-PORTABLE-9V2 USER MANUAL SYSTEM SETUP Play USB and SD/MMC/MS Card 1. Plug in the USB device noting correct orientation. Press [DVD/SD/USB], then choose USB to select the content. 2. Insert a memory card to the SD/MMC/MS slot. Press [DVD/SD/USB] and select SD to play memory card. -
Page 15: Osd Language
DVD-PORTABLE-9V2 USER MANUAL SYSTEM SETUP OSD Language You can choose one out of several different languages as the OSD setup language Captions • ON: Captions are displayed. (If an captions available). • OFF: The screen will not display captions. Screen Saver •... -
Page 16: Dynamic
DVD-PORTABLE-9V2 USER MANUAL SYSTEM SETUP • R-Mono: Playback of Right channel audio only. • Mix Mono: Both Left/Right channels are mixed to one mono channel. Dynamic Use this mode to level all sound channels to ensure even sound levels. 1. Press The OK Button to enter. 2. -
Page 17: Subtitle
DVD-PORTABLE-9V2 USER MANUAL SYSTEM SETUP Subtitle Sets the default Language of the Subtitles of DVDs played on this play. Disc Menu Sets the default Language of the DVD Menu of DVDs played on this play. NOTE: Audio, Subtitle and Disc Menu settings are subject the availability of your selection on the DVD. -
Page 18: Troubleshooting
DVD-PORTABLE-9V2 USER MANUAL TROUBLESHOOTING TROUBLESHOOTING Problem Possible Solution No sound or distorted 1. Make sure your DVD is connected properly. Make sure all sound? cables are securely inserted into the appropriate jacks. 2. Make sure the Audio is not muted. No Power Ensure that power connection is firmly seated in plug and there is power to the power supply. -
Page 19: Change The Remote Control Battery
1 Vp-p/75 Ohm, Unbalanced Audio S/N: Better than 60 dB Dynamic range: Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9 – 12V 1.5 amps Power Consumption: Battery Type 7.4V Li Ion 1600mAh... -
Page 20: Available Accessories
DVD-PORTABLE-9V2 USER MANUAL AVAILABLE ACCESSORIES AVAILABLE ACCESSORIES Speakers and earphones http://www.laserco.net/products/pc-accessories/speakers Screen Cleaning Products and Protectors http://www.laserco.net/products/pc-accessories/detail/5/208 http://www.laserco.net/products/pc-accessories/pc-accessories/detail/14/60 http://www.laserco.net/products/pc-accessories/pc-accessories/detail/14/59 FOR OTHER ACCESSORIES AND PRODUCTS http://www.laserco.net CONTACT INFORMATION For more information on this product and technical support please visit HTTP://WWW.LASERCO.NET...
