Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:

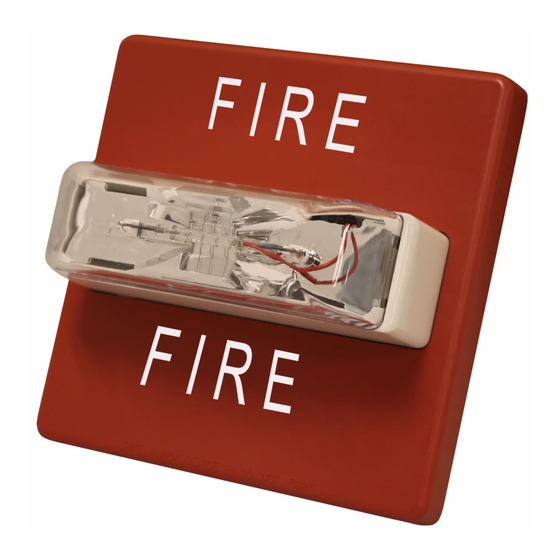

Cooper Notification's Series RSS and RSSP Multi-High-Candela Strobes can provide a non-synchronized strobe appliance when connected directly to
a fire alarm control panel (FACP), or provide a synchronized strobe appliance when used in conjunction with a Sync Module (SM), Dual Sync Module
(DSM) or Cooper Notification's Power Supplies utilizing Cooper Notification sync protocol. The Series RSS and RSSP Multi-High-Candela Strobe
Appliances are UL Listed under Standard 1971 (Signaling Devices for the Hearing Impaired) for indoor Fire Protection Service. Series RSS and RSSP
Multi-High-Candela strobes with amber, blue, green and red lens are UL Listed under Standard 1638 (Visual Signaling Appliance) for Private Mode
Emergency and General Utility Signaling. The Multi-High-Candela strobe provides two selectable light output intensities in one unit. These strobes
are listed for wall mount and indoor use only, with the backboxes specified in these instructions (See Mounting Options). RSS models have an
integrated Strobe Mounting Plate (SMP) that can be mounted to a single-gang, double-gang, 4" backbox, 100mm European backbox or SHBB surface
backbox. The strobes use a xenon flashtube with solid state circuitry enclosed in a polycarbonate lens to provide maximum visibility and reliability for
effective visible signaling. All inputs are polarized for compatibility with standard reverse polarity supervision of circuit wiring by the FACP.
NOTE: Final acceptance is subject to Authorities Having Jurisdiction.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE TO COMPLY WITH ANY OF
THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, CANDELA SETTING,
INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY
DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
SPECIFICATIONS:
Model
RSS-24MCWH
RSSP-24MCWH
NOTES:
1.
Strobes will produce 1 flash per second over the "Regulated Voltage" range.
2.
Strobes with clear and amber lens meet the required light distribution patterns defined in UL 1971.
All models are listed by UL for indoor use with a temperature range of +32F to +120F (0C to +49C) and maximum humidity of 93% 2% RH.
3.
The effect of shipping and storage temperatures shall not adversely affect the performance of the appliance when it is stored in the original
cartons and is not subjected to misuse or abuse.
4.
Candela ratings in Table 1 are for clear lens. Derate approximately 25% for amber lens, 55% for green lens, 70% for blue lens and 80% for red
lens.
WARNING: CANDELA SETTING WILL DETERMINE THE CURRENT DRAW OF THE PRODUCT.
When calculating the total currents use Table 2 to determine the highest value of RMS current for an individual strobe, then multiply these values by
the total number of strobes. Be sure to add the currents for any other appliances, including audible signaling appliances powered by the same source,
and to include any required safety factors.
NOTE: The maximum number of strobes on a single notification appliance circuit shall not exceed 50.
Copyright 2009 Cooper Wheelock Inc., dba Cooper Notification. All rights reserved.
Thank you for using our products.

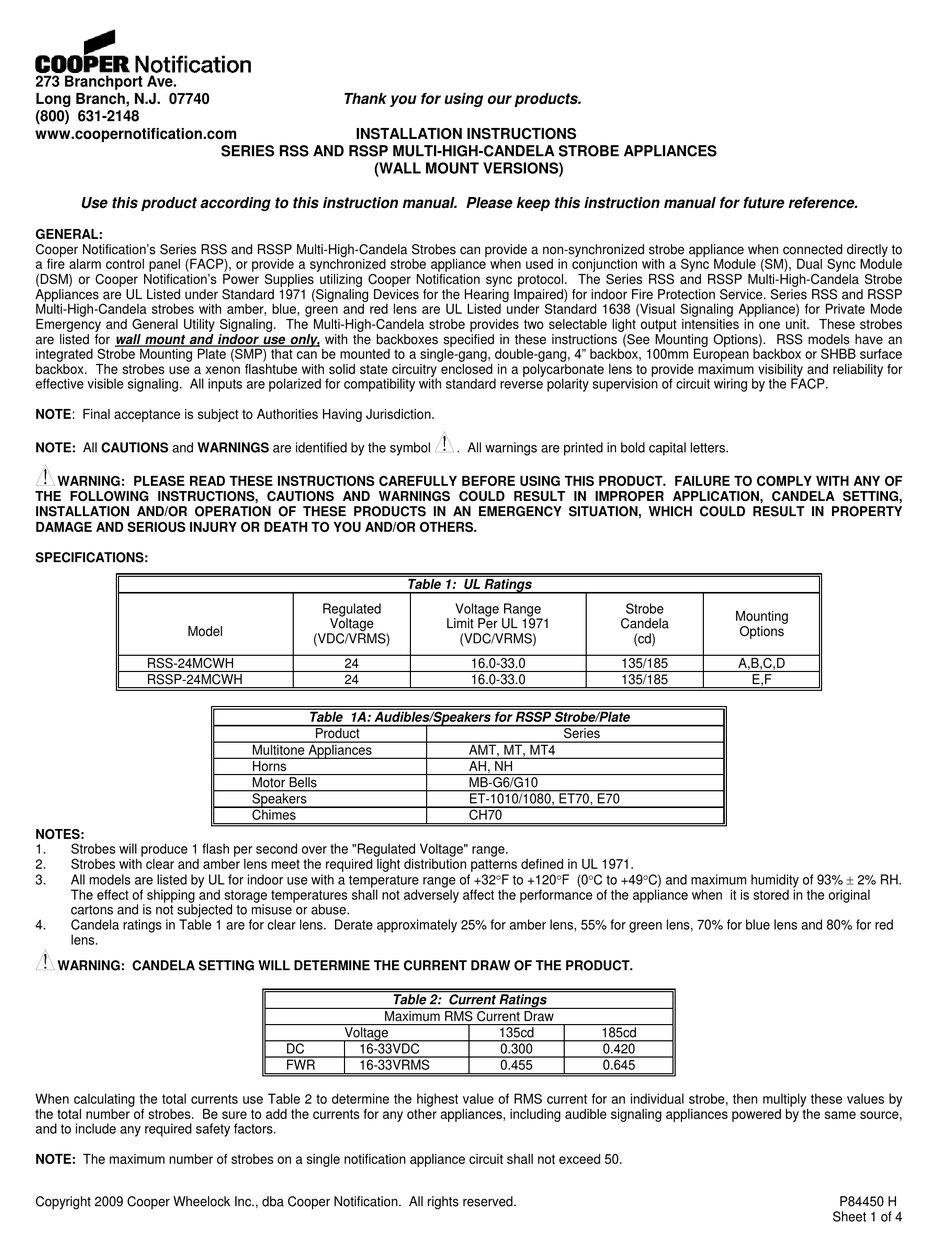

INSTALLATION INSTRUCTIONS
SERIES RSS AND RSSP MULTI-HIGH-CANDELA STROBE APPLIANCES
(WALL MOUNT VERSIONS)
Regulated
Voltage
(VDC/VRMS)
24
24
Table 1A: Audibles/Speakers for RSSP Strobe/Plate
Product
Multitone Appliances
Horns
Motor Bells
Speakers
Chimes
Table 2: Current Ratings
Maximum RMS Current Draw
Voltage
DC
16-33VDC
FWR
16-33VRMS
. All warnings are printed in bold capital letters.
Table 1: UL Ratings
Voltage Range
Limit Per UL 1971
(VDC/VRMS)
16.0-33.0
16.0-33.0
Series
AMT, MT, MT4
AH, NH
MB-G6/G10
ET-1010/1080, ET70, E70
CH70
135cd
0.300
0.455
Strobe
Mounting
Candela
Options
(cd)
135/185
A,B,C,D
135/185
E,F
185cd
0.420
0.645
P84450 H
