Summary of Contents for Dual DSBT504

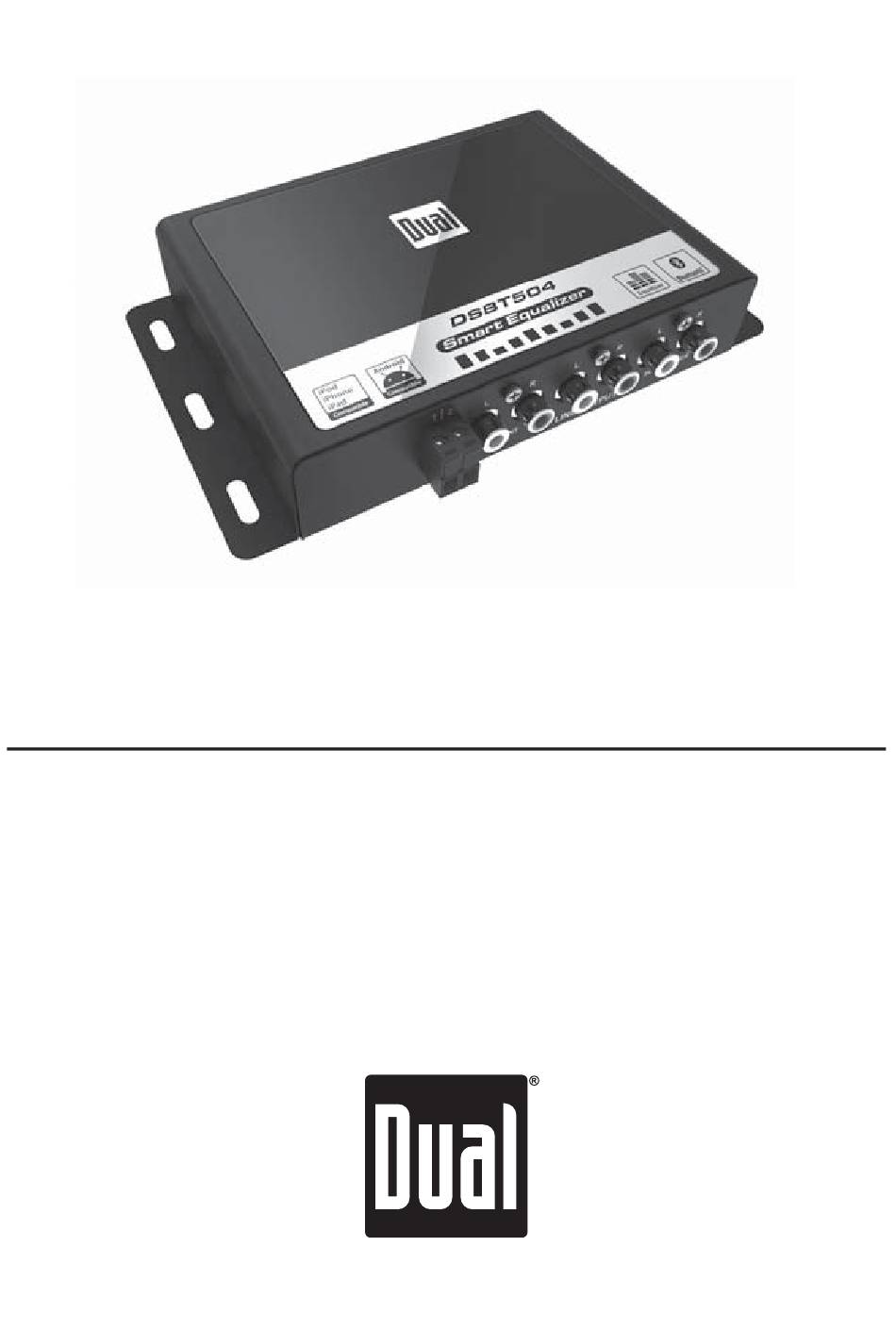

- Page 1 DSBT504 INSTALLATION / OWNER'S MANUAL Wireless Smart EQ Processor...
- Page 2 INSTALLATION Preparation Before You Start Mounting Location TYPICAL MOUNTING METHOD...
-
Page 3: Connection Descriptions
INSTALLATION Connection Descriptions Power Wire (+12V) Disconnect negative battery terminal before processing. Consult a qualified technician for instructions if you are unsure. Plan wire routing before cutting any wires to length. Begin by routing the power +12V wire from the battery to the Smart EQ location. Power line for amplifier can be shared. - Page 4 INSTALLATION Inputs/Output Panel Description [ Input Side ] Line Input Power LED High Level Input Power Connector Reset [ output side ] Remote-out for Amplifier Turn on/off Line Output Rear Line Output Subwoofer Line Output Front...
- Page 5 INSTALLATION Typical Wire Routing MAXIMUM FUSE 12V BATTERY +12V DC (Power) GROUND No more than 36" (1 meter) [Subwoofer] [HEAD UNIT] [Mono Amplifier] [Front Speakers] Low level Input [Smart EQ] [4-Channel Amplifier] [Rear Speakers] REM (Remote Turn On) (ACC) BLACK (GND) YELLOW(B+)
-
Page 6: Input Connections
INSTALLATION Input Connections The input source of the Smart EQ can use either the RCA preamp outputs or High Level speaker wire inputs from the head unit or Bluetooth A2DP streaming from a connected Bluetooth device. Note : User can select the audio signal source using the app on the Bluetooth connected device. -
Page 7: Output Connections
INSTALLATION Output Connections Amplifier Connection Remote-turn on/off REM OUT has to connect to the REM IN terminal of amplifier as below. This signal is for the power on/off of amplifier. If audio signal is entered into Smart EQ, Smart EQ will give a signal in order to use for turning on the power of amplifier. [EQ Smart] [Amplifier Side] RCA Rear/Front outputs... -
Page 8: Using Application
INSTALLATION Using Application... - Page 9 INSTALLATION Using Application Pairing the Smart EQ with your device. Pairing the Smart EQ with the iPod touch or iPhone. Pairing the Smart EQ with the Android smartphone.
-
Page 10: Troubleshooting
INSTALLATION Troubleshooting Problem Cause Action +12V wire not connected or incorrect Check connections for proper voltage voltage. (11~16VDC) Unit will not turn on (no power LED GND wire not connected Check connection to ground indicator) ACC wire not connected. Check connection to ACC line. Check the REM connection between REM OUT wire not connected. -
Page 11: Specifications
INSTALLATION Specifications Dimensions(WxDxH) 7” x 4.1” x 1.2” (177 x 103.4 x 31mm) Power... - Page 12 INSTALLATION Compliance ICC Compliance This Class [B] digital apparatus complies with Canadian ICES-003. This radio transmitter(4038A-SBT504) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
- Page 13 INSTALLATION Compliance FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause un-desired operation.
- Page 15 Notes...
- Page 16 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM, EST www.dualav.com ©2014 Dual Electronics Corp. NSC-0214-V01...
