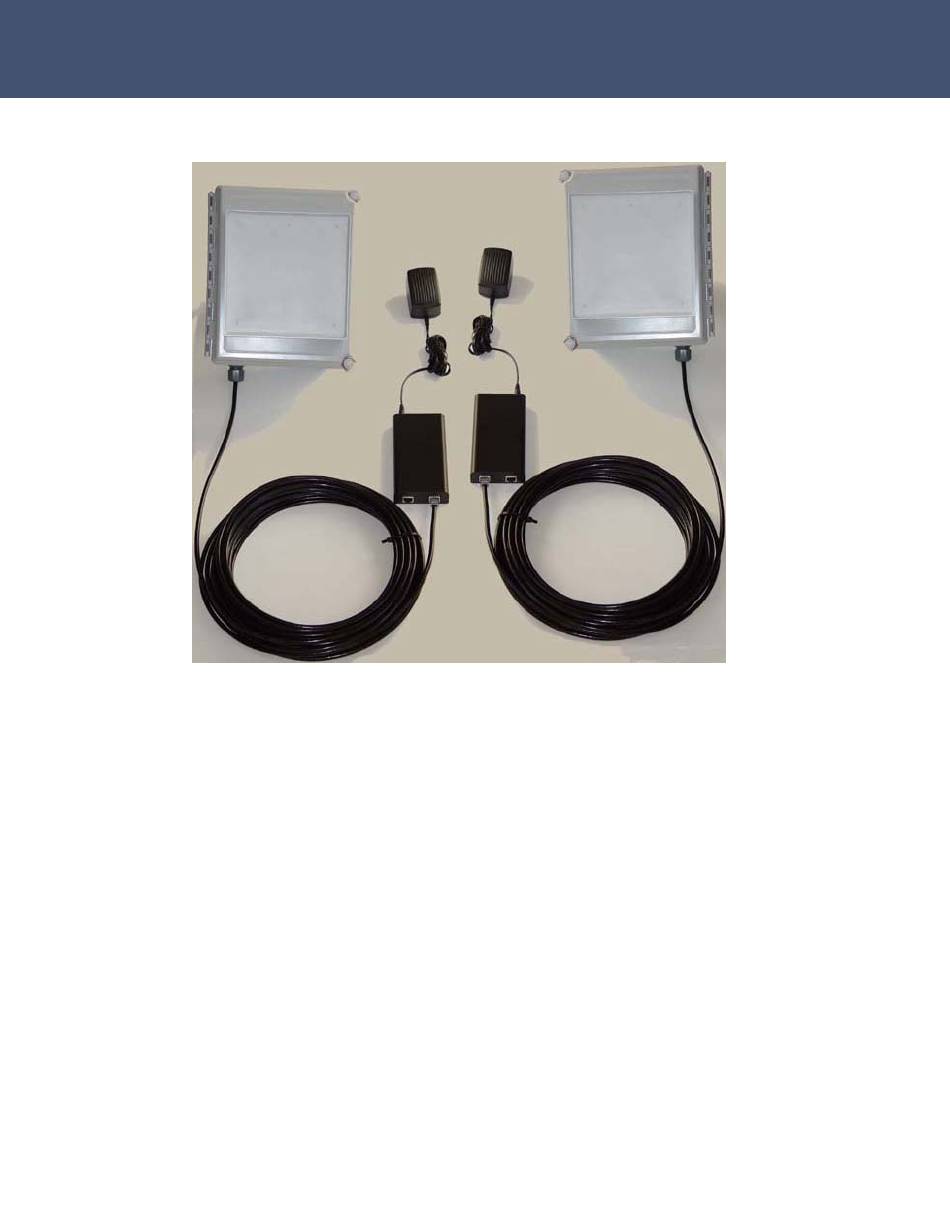

- Page 1 Quick Install Guide AI108 Series Wireless Bridge with External Antennas (ordered separately) Model# AI108-2-050 AI108-2-150 AI108-2-300 For Professional Installers Revision 1.17P OCT 2002 - 1 -...
- Page 2 AIRAYA is a trademark of AIRAYA Corp. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. International Headquarters 637 Adair Court Morgan Hill, CA 95037 Tel: 866-224-7292 Fax 408-776-9583 Internet: support@airaya.com Copyright © 2002 by AIRAYA Corp. All rights reserved.
- Page 3 The two-year warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an ‘Active’ AIRAYA product. A product is considered to be ‘Active’ while it is listed on the current AIRAYA price list.
- Page 4 STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. * AIRAYA will provide warranty service for up to three years following discontinuance from the active AIRAYA price list. Under the two-year warranty, internal and external power supplies, and fans are covered by a standard one-year warranty from date of purchase.
- Page 5 The built-in antennas used on the AI108 may NOT be replaced at any time. They are designed to comply with the maximum EIRP limits specified by the FCC and Industry Canada. Modifications to the AI108, unless expressly approved by AIRAYA, could void the user's authority to operate the equipment.
-
Page 6: Table Of Contents
..................... 21 System Password Tab ..................23 Download Updates Tab ..................24 Help Tab ......................25 Specifications...................... 26 Models and Ordering Information................27 Where to Get Help ....................28 Worldwide Web Support ..................28 Contacting AIRAYA ................... 28 - 6 -... -
Page 7: Introduction
Introduction AIRAYA’s AI108 series of wireless bridges have been designed to provide transparent, high-speed data communications between two wired networks. This solution offers fast, reliable wireless connectivity with considerable cost savings over wired alternatives. Utilizing proprietary 5 GHz technology, the AI108 can easily replace an Ethernet or T1 connection or seamlessly integrate into a newer 10/100 Mbps Ethernet LAN. -
Page 8: Hardware Description
2.5 miles (4km) under FCC and Industry Canada rules. For international markets other antennas options (both integrated and external) may be available based on local regulations. Please contact AIRAYA for additional antenna options. Enclosure The molded fiberglass polyester enclosure of the AI108 outdoor unit has been designed for maximum weatherability and durability in outdoor settings. - Page 9 AI108 Architecture and Topology The following diagram illustrates a typical usage scenario of an AI108 wireless bridge to interconnecting two local area networks. - 9 -...
-
Page 10: System Requirements
System Requirements Before you install the AI108 wireless bridge, be sure you have the following items on- hand: • An AC power outlet (100 to 240 V, 50 to 60 Hz) which will supply power to the indoor units on both sides of the wireless connection •... -
Page 11: Hardware Installation
Hardware Installation Connecting the Indoor Unit Front Panel View The indoor unit connects your company network to the AI108 and delivers both data and power to the outdoor unit. The indoor unit features the following LED status indicators: Indication Detect (green) Compatible load detected and Ethernet link established between indoor and outdoor units. - Page 12 Follow these steps to install the indoor unit: 1. Connect the DATA port to your 10/100 Mbps Ethernet hub or switch using a straight-through category 5 UTP cable. 2. Connect the power cable to the 12 VDC power socket on the rear panel, and plug the power adapter into the wall outlet.
-
Page 13: Installing And Aligning The Outdoor Units
Installing and Aligning the External Antennas To ensure maximum performance and stability of your wireless connection, it is crucial that you determine the right locations for the external antennas based on the following two criteria: 1. Establish a good signal path, ideally with visual line of sight, between the two end points. - Page 14 2. Align the external antenna horizontally. Loosen the pole mounting clamps just enough to visually aim the external antenna at the remote end point. Set the appropriate horizontal angle and tighten the pole mounting clamps so that the angle is locked in place. 3.
- Page 15 4. Set the appropriate elevation angle and tighten the bolts so that the angle is locked in place. The bracket design allows for up to 20 tilt of the antenna. ° 5. Secure both the cable between the external antenna and the outdoor unit, and the Category 5E cable between the outdoor unit and the indoor unit to the mast using UV-rated tie-wraps (4 are included).
-
Page 16: Software Configuration
Logging in to the AI108 Web Server The AI108 requires you to enter a user name and password to gain access to the configuration utility. The default value for the fields User Name and Password is “Airaya”. - 16 -... -
Page 17: Current Settings Tab
Once you are logged in to the AI108 web server, you will have access to all configuration options available in the AI108. The web interface is organized into tabs that facilitate different categories of parameters and functions, including Current Settings, Link Setup, Link Security, System Password, Download Updates, and Help. The first screen you see is the Current Settings tab. - Page 18 The following parameters can be viewed from the Current Settings tab: • Software Version - Current software (firmware) version installed and running on the bridge you are working with. This value is formatted as a date code. • Hardware Version - Current hardware revision of the local bridge. •...
-
Page 19: Link Setup Tab
Link Setup Tab The Link Setup screen is used to enter parameters related to the configuration of your network, radio channel, and data rate of the AI108. The following parameters can be accessed and modified from the Link Setup tab: •... - Page 20 • Subnet Mask - The subnet mask allows networking software to determine which parts of the IP address specify the network address and which parts specify the host address. If your device is using the wrong subnet mask for the network to which you are attached, it will therefore not be able to communicate with all users on that network.
-
Page 21: Link Security Tab
Link Security Tab The Link Security screen is used to define the authentication and encryption security settings of the AI108. The following parameters can be accessed and modified from the Link Security tab: • MAC Address Authentication - To protect your wireless link against unauthorized intruders, the AI108 allows only two unique MAC addresses to synchronize radios and establish a wireless connection. - Page 22 • WEP Data Encryption - To prevent unauthorized wireless stations from listening to data transmitted over the wireless medium, the AI108 offers Wired Equivalent Privacy (WEP) data encryption. Up to four WEP keys with 64, 128, or 152 bit key length can be registered. 64 bit keys need to be entered as 10 hexadecimal digits in the range of 0-9, A-F, or a-f.
-
Page 23: System Password Tab
Please write your password down and keep it in a safe place for future reference. AIRAYA recommends that you change your password every now and then and that you never give your password to an unauthorized person. -
Page 24: Download Updates Tab
Download Updates Tab From time to time, AIRAYA will release firmware updates in order to improve the functionality of the AI108, provide patches for known issues, and generally provide enhancements to the product. The latest version of AI108 firmware can be found in the support section of the AIRAYA website located at http://www.airaya.com. -
Page 25: Help Tab
The Browse button is used to select the new firmware image for upload once you've obtained it from AIRAYA and saved it to a directory on your computer or network drive. The Load button allows you to upload this new image to the local AI108 bridge. -
Page 26: Specifications
Specifications Radio Frequency Range 5.25 to 5.35 GHz license-exempt (FCC, Industry Canada) Radio Type Orthogonal Frequency Division Multiplexing (OFDM) Standards Compliance IEEE 802.11a hardware with proprietary security extensions Maximum System EIRP 30 dB (1 Watt) Antenna Options Flat Panel Antenna, 18.4 dBi, +/-20° elevation adjustment Flat Panel Antenna, 23.9 dBi, +/-20°... -
Page 27: Models And Ordering Information
UL – Canada, USA Environmental Bellcore GR-63-CORE, NEMA-4 (outdoor unit) Radio FCC 15.407 (U-NII), Industry Canada RSS-210 Models and Ordering Information AI108 Series Model # AI108-2-050 AI108-2-150 AI108-2-300 Indoor to Outdoor Unit 50 ft (15.2 m) 150 ft (45.7 m) 300 ft (91.4 m) -
Page 28: Where To Get Help
Worldwide Web Support The AIRAYA web site provides a quick and easy way to answer many common technical questions. It includes a variety of technical documents, as well as copies of product manuals, product literature, and firmware images. The web site is located at http://www.airaya.com. - Page 29 The enclosure is factory sealed with Torx screws that prevent the end-user from gaining access to the unit. Please consult AIRAYA customer service at (866) 224-7292 or (408) 776-9583, if you are unsure if your installation requires the use of an attenuator or for information on how to calculate cable loss between the outdoor unit and an AI108-2-23 external antenna.
