802.11b/g/n PCIe Module
Model Number: NGP1024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NGP1024 and is the answer not in the manual?

Questions and answers

Related Manuals for Proxim NGP1024

Summary of Contents for Proxim NGP1024

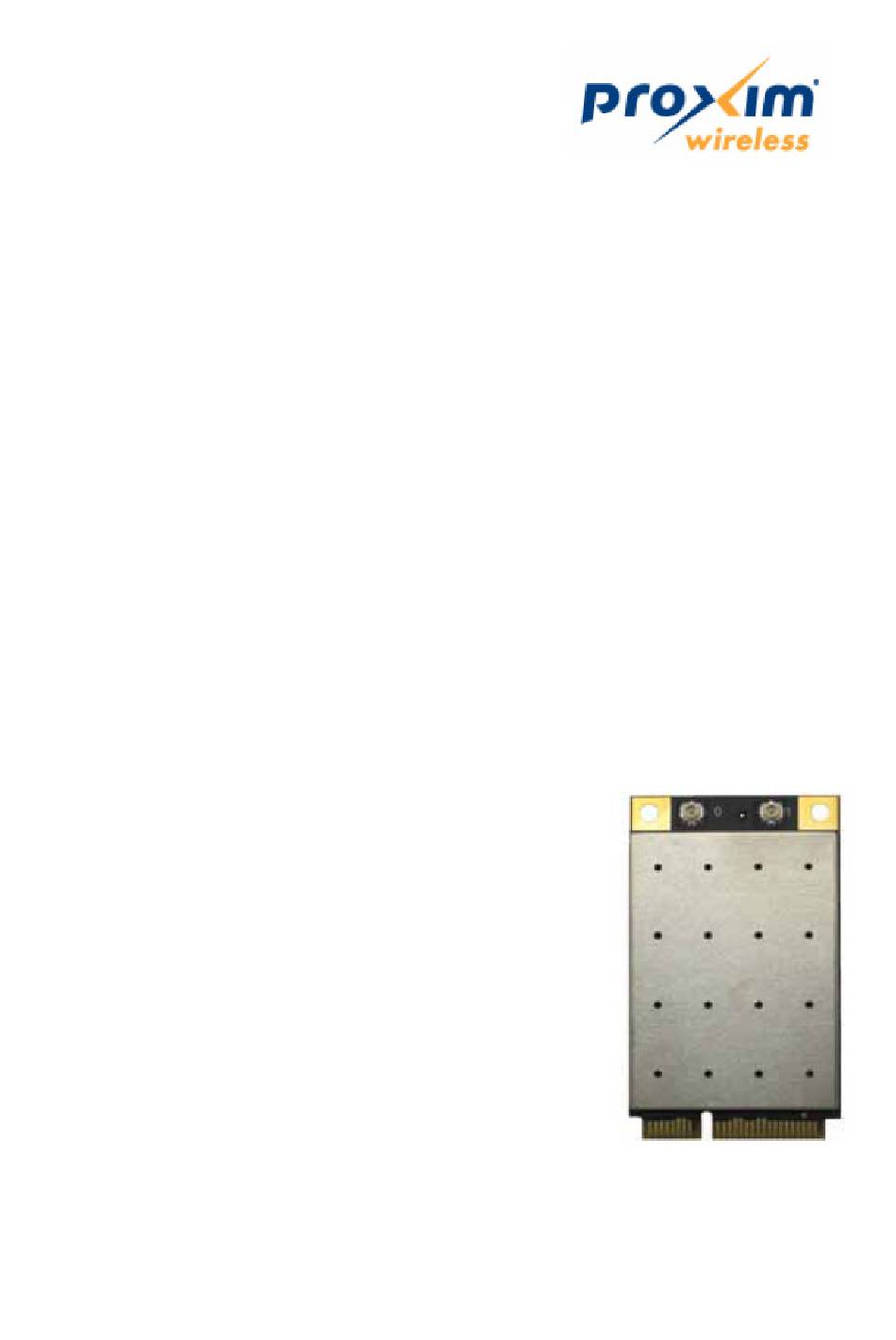

  • Page 1 802.11b/g/n PCIe Module Model Number: NGP1024...

  • Page 2: Warning Statement

    Warning Statement FCC NOTICE This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 The final end product must be labeled in a visible area with the following " Contains TX FCC ID: HZB-NGP1024 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules.
  • Page 4 interference and (2) this device must accept any interference received, including interference that may cause undesired operation. IC NOTICE This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 5 repetitive codes where required by the technology. Le dispositif pourrait automatiquement cesser d'émettre en cas d'absence d'informations à transmettre, ou une défaillance opérationnelle. Notez que ce n'est pas l'intention d'interdire la transmission des informations de contrôle ou de signalisation ou l'utilisation de codes répétitifs lorsque requis par la technologie.
  • Page 6 (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX IC : 1856A-NGP1024 ".
  • Page 7 Electromagnetic Interference (Conduction and Radiation): EN 55022 (CISPR Electromagnetic Immunity: EN 55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) Low Voltage Directive: EN 60 950: 1992+A1: 1993+A2: 1993+A3: 1995+A4: 1996+A11: 1997. CE Mark: following the provisions of the EC directive. The wireless card in this product complies with the R&TTE Directive (1999/5/EC) issued by the Commission of the European Community.

  • Page 8: Overview The Product

    Overview the Product Introduction The high-performance Wireless Radio module is designed for enterprise and public access applications. Embedded with the Atheros chipset, it boasts network robustness, stability and wider network coverage. Based on 802.11n, the access point supports high-speed data transmission of up to 300Mbps. The access point host is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications, including long- distance deployments.

  • Page 9: Virtual Ap (Multiple Ssid)

    Features • Atheros XSPAN family chipset • IEEE 802.11n compliant and backward compatible with 802.11b/g • 2.4GHz Single-band 2 x 2 MIMO spatial multiplexing technique • Maximum output power 23dBm@802.11b/g -26dBm MIMO aggregate • Supports up to 300Mbps physical data rates •...
  • Page 10 This device will be build-in into Proxim’s Host Tsunami , and it should be ® professional installation. The host system must be labeled with: Contains FCC ID: HZB-NGP1024; Please refer to the user guide for the host on our web site: http://www.proxim.com/...

  • Page 11: Operation Modes And Connection Examples

    Operation Modes and Connection Examples Access Point and Access Point WDS Mode The Access Point Mode is the default mode of the device. It enables the bridging of wireless clients to wired network infrastructure and enables transparent access and communication with each other. The illustration below shows a typical resources sharing application example using this device.

  • Page 12: Station Mode

    Station Mode In Station mode the device acts as a wireless client. When connected to an access point, it creates a network link between the Ethernet network connected at this client device, and the wireless Ethernet network connected at the access point. In this example the workgroup PCs on the ethernet network connected to the Station device can access the printer across the wireless connection to the access point where the printer is connected.

  • Page 13: Station Wds Mode

    Station WDS Mode Station WDS mode is similar to Station mode. The difference is Station WDS must connect to access point configured to Access Point WDS (or RootAP) mode. Station WDS is mainly use for point-to–point connection between 2 buildings or locations as far as several kilometer away.

  • Page 14: Router Mode

    Router Mode In Router Mode, the device also operates as a router. Either the wireless or Ethernet can be setup as WAN connection to a broadband modem. Wireless as WAN is known as Station + Router mode (or Wireless Routing Client mode) and Ethernet as WAN is known as AP + Router mode(or Gateway mode).

  • Page 15: Repeater Wds Mode

    Repeater WDS Mode Repeater WDS Mode to mainly to extend the wireless range and coverage of the wireless network allowing access and communications over places generally difficult for wireless clients to connect to the network. In Repeater mode, the access point acts as a relay for network signals on the network by regenerating the signals it receives, and retransmitting them to main network infrastructure.

  • Page 16: Install The Hardware

    Install the Hardware This section will show you how to install the hardware of the access point. • Antenna Alignment The antenna alignment of the access point must first be considered to ensure that the signal is strong. • Installation Direction After considering the antenna alignment, the direction in which the access point is facing must be considered to ensure that the signal is actually being directed to the receiving end.

  • Page 17: Setup Requirements

    Setup Requirements • CAT5/5e Networking Cable. • At least 1 computer installed with a web browser and a wired or wireless network interface adapter. • All network nodes installed with TCP/IP and properly configured IP address parameters. Mount the Unit on a Pole Access point is designed to mount to a pole.
